ACTION INFORMATION CENTER

(Operations Room)

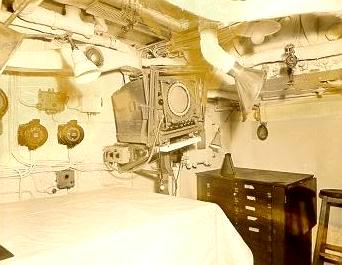

Action Information Center (A.I.C.) - Forward bulkhead showing 293M PPI display.

Through a large magnifying glass fitted in the deckhead of the A.I.C. room, bridge personnel could read the plot table and the PPI display. The front of the PPI display is shown with the mirror mounting frames folded back and in the stowed position. When in use, the frame was extended and a mirror would be inserted into the frame and positioned so the screen could be viewed from above. The Plot Table is shown with the dust cover in place.

RCN Photo 1749-57.

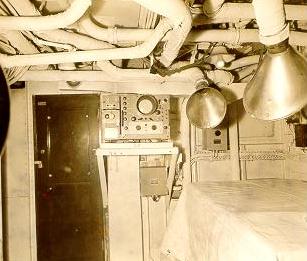

A.I.C. Port bulkhead showing the Loran 'A' receiver Model DAS and input voltage panel.

RCN Photo HS 1749-58.
