TARGET INDICATION ROOM

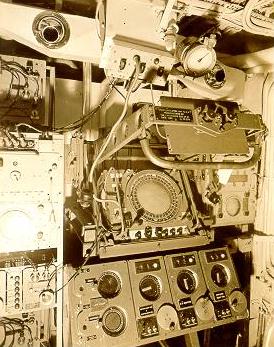

Target Indication Room - after bulkhead.

Ranging outfit RTB including panel L-37 and two strobe generators. TIU/PPI displaying 293M; Outfit JH-1 (panel L-43); PPI control board and 242 IFF aerial indicator (over TIU).

RCN Photo HS 1749-59
