BH-30 Linear Amplifier

SPECIFICATIONS

Frequency Range: 2 - 24 MHz
Power Output: Approximately  1400 watts continuous  with 75 watts in.
Primary Power supply: 110/220 VAC .
RF Output Stage: Pair of 3-500's operating grounded grid mode with tuned input stage.
Weight:  360 lbs.
Circa: ?

Close up of control panel. (Photo by  Colin Gunn VE7TNT)

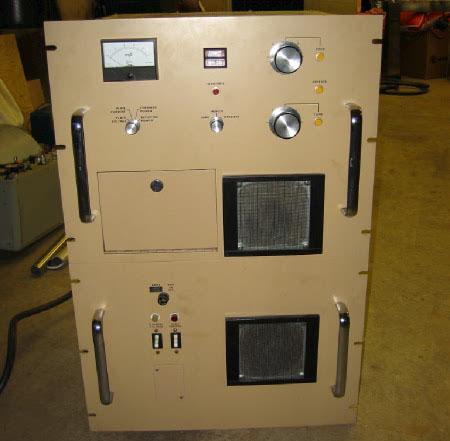

Complete Unit
The clamshell construction allows easy access to components.

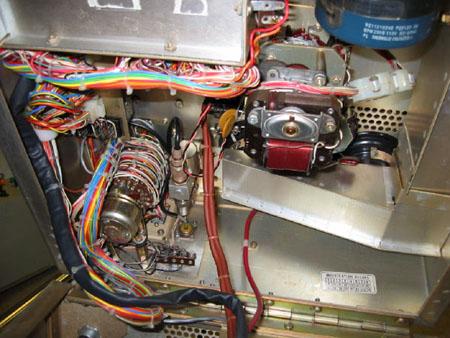

Above and below: Chassis underside views.
All photos by  Colin Gunn VE7TNT
