CP-24 TRANSCEIVER

Type: Single Sideboard, portable transceiver
Model: 189-924:
Frequency range: 1.6 MHz - 15.0 MHz,
Frequency control : 1 to 4 crystal controlled channels A four line table is provided on the front panel to identify operating frequencies.
Manual . A manual for the CP24 can be found here.  Provided by Moe Fretz


This is a pristine example of a CP24  transceiver. In a previous lifetime, it  was last used on 5680 and 5390 KHz (Photo by Normand Houde) [
CP24 modified.. Some banana jacks have been mounted in the upper right corner.Normally, the antenna would be connected here.  Prior to modification, it was last used on 4150 KHz in a previous lifetime.  Shown with MIC cord plugged into the lower right connector. (kijiji.ca photo)

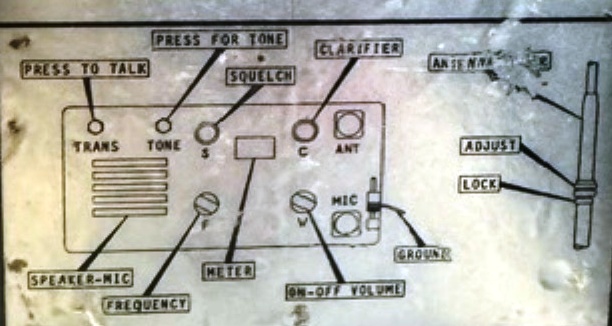

cp24 front panel controls_2.jpg
CP24 front panel controls. (Photo by Normand Houde)
CP24 -- Bottom view (Kijiji.ca photo)

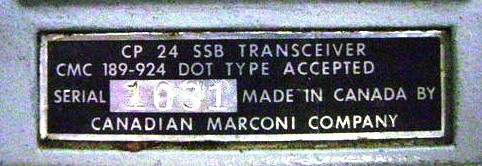

CP24 -nameplate.

:
Back to Equipment Listing
Apr 16/24
