HOME ENTERTAINMENT - MODEL 12 RADIO
Type: 7 tube TRF set
Circa: 1928
Tube Lineup : See schematic
Power Input : AC operated 115 VAC 25/60 Hz 50 watts.
Cabinet: The model 12 was available in a floor model or combination floor model cabinet which housed a record player.
|
| Model 12 front view |
|
| Model 12 front panel closeup |
|
| Model 12 rear view |
|
| Model 12 chassis view when top lid is raised. |
|
| Model 12 nameplate |
| All images in this table via Kijji Canada |
 |

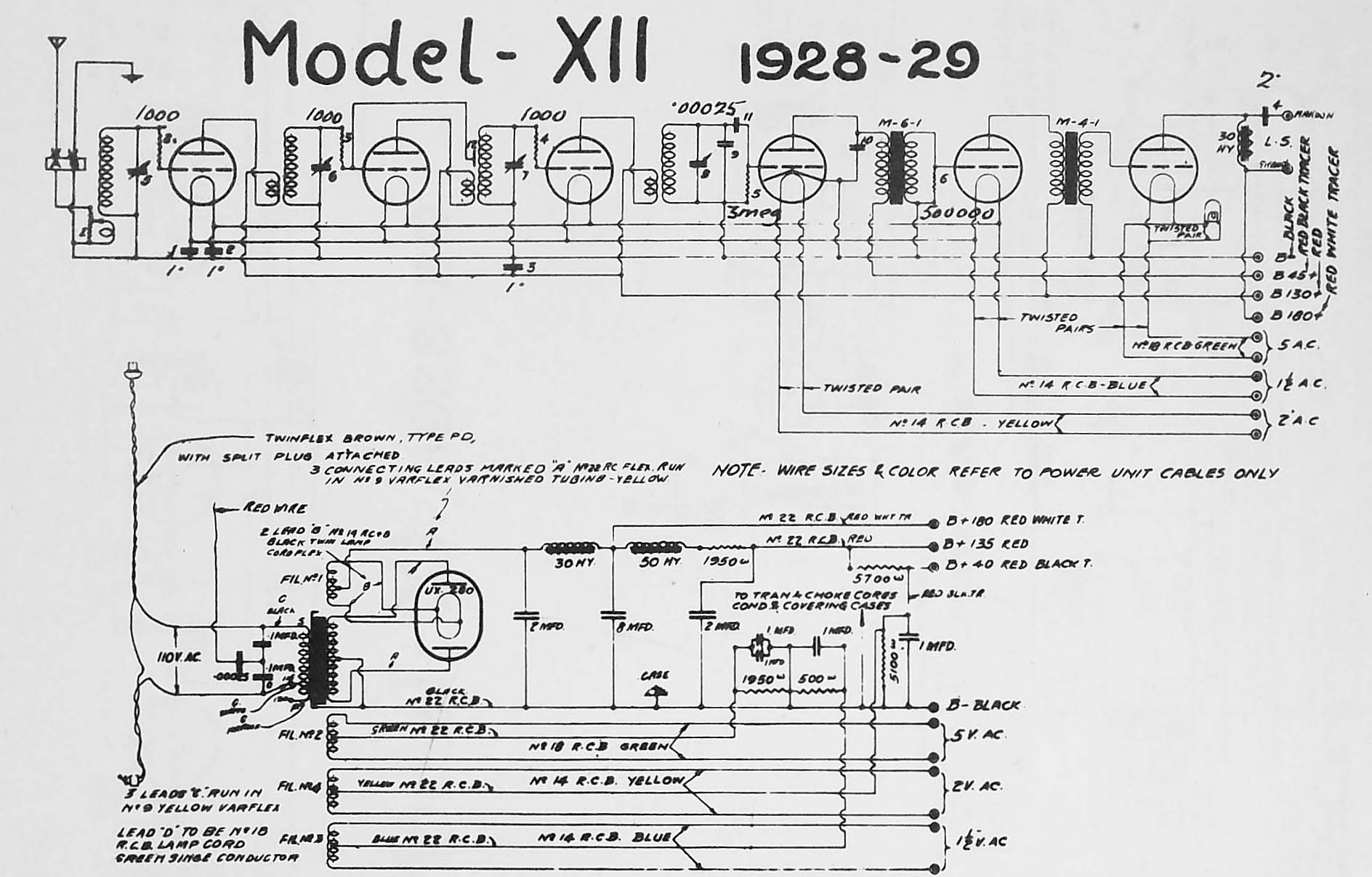

| Model 12 receiver and power supply schematic. Download image to enlarge. (From RCC Service Manual) |
 |

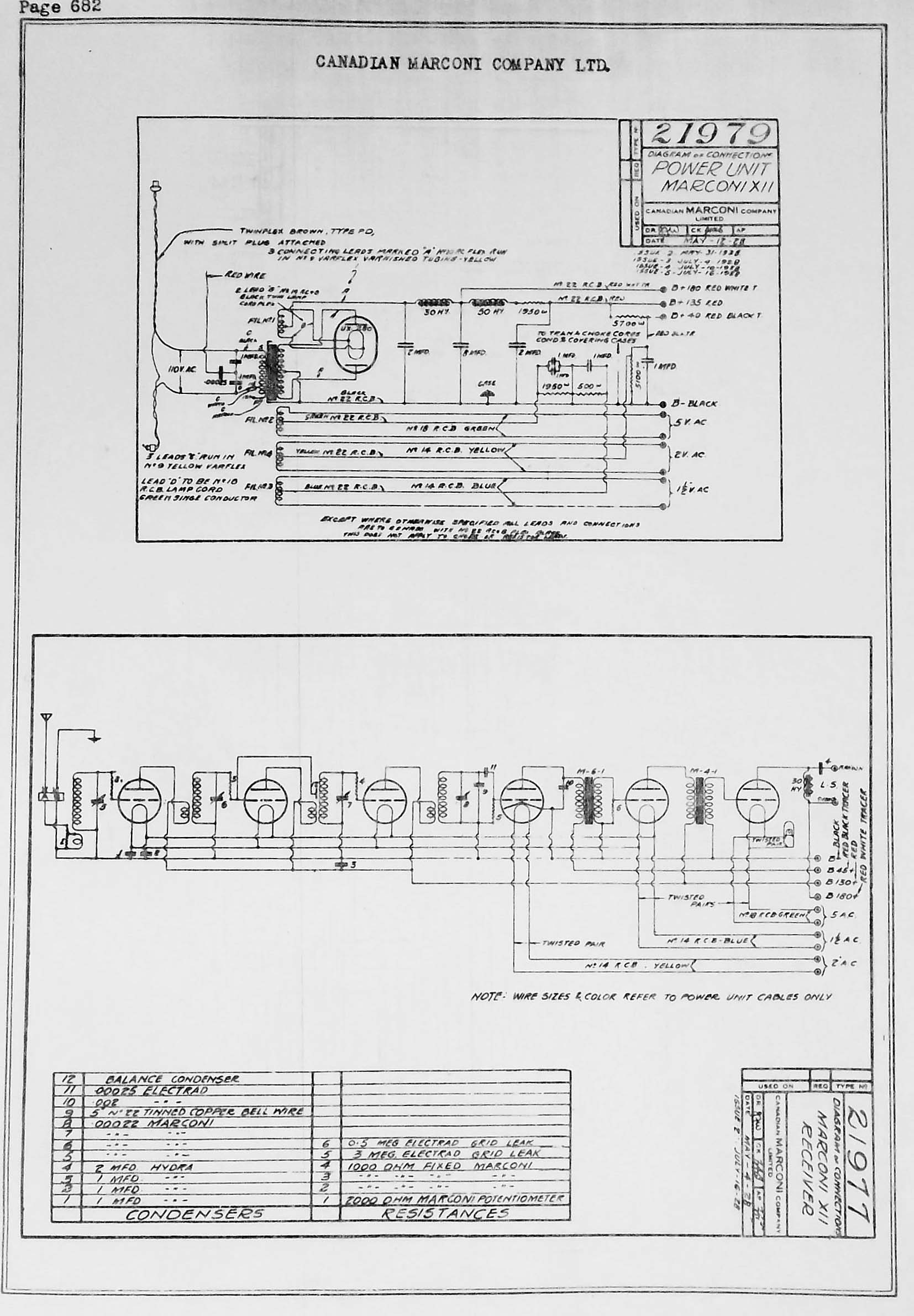

| This is the original Model 12 receiver and power supply schematic. Doiwnload image to enlarge. The RCC image is better, hower the Marconi schematic shows the date drawn and the date issued. (Marconi Service manual ) |
Credits and References:1) The Early Development of Radio in Canada 1901 to 1930 by Robert Murray
2) Lewis Bodkin 05bodkin555(at)mail.com>
Feb 23/19
