HOME ENTERTAINMENT -  MODEL 19 (DC) RADIO

Type:  7 tube TRF set
Circa:  July 1930
Tube Lineup : 4 x UX232, 2 x UX231, 1 x UX230
Power Input :  DC operated.
Original List Price: $180
Cabinet: ?
Comment:

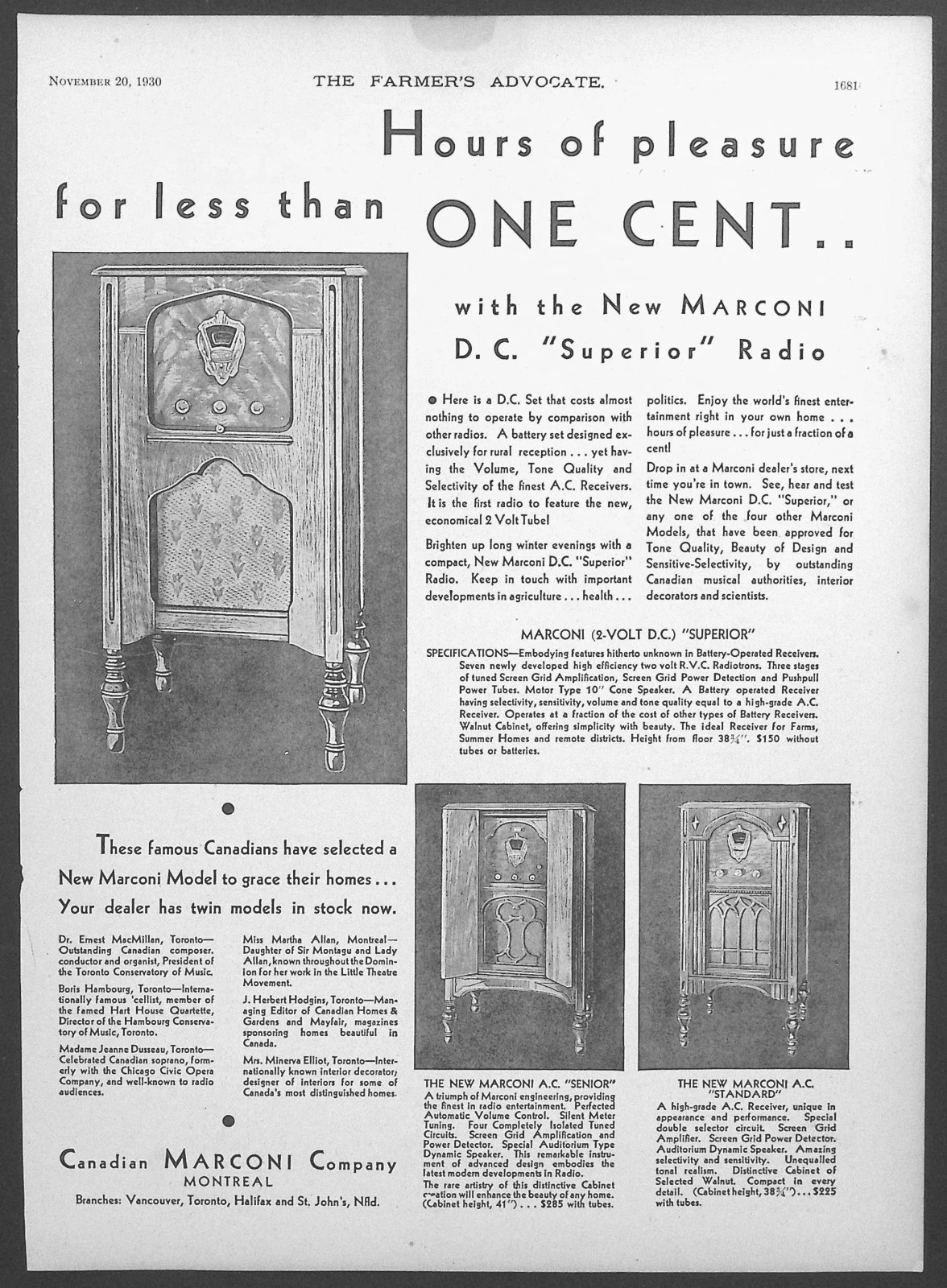

1) Also known as the "Superior:2V" series

Link for Model 19 tuner schematic and power unit.



Credits and References:

1) Canadian Marconi Service Manual Vol. 1
2) The Early Development of Radio in Canada 1901 to 1930 by Robert Murray
