HOME ENTERTAINMENT - MODEL 23 RADIO
Type: 9 tube TRF set with AVC and gramophone
Circa: August 1930
Cabinet style: Combination radio and gramophone in console cabinet.
Tube Lineup : 1 x UX280; 3 x UY224; 3 x UY227; 2 x UX245
Power Input : AC operated. 115VAC 25 or 60 Hz
Comment: In maketing literature, this radio was known as the Marconi "Senior Combination".
Link for Model 23 schematic
|
| Model 23 (Photo via Radiomuseum.org) |
|
| Model 23 with doors closed. (Photo via Kijiji.ca) |
|
| Model 23 - Detail of the gramophone. (Photo via Kijiji.ca) |
|

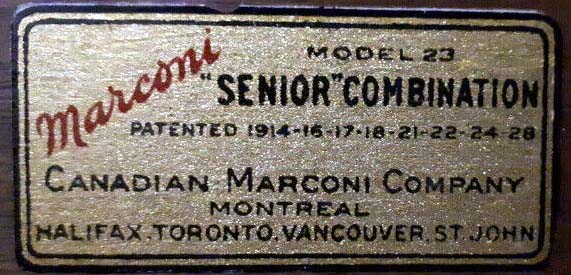

| Model 23 nameplate. (Photo via Kijiji.ca) |
 |

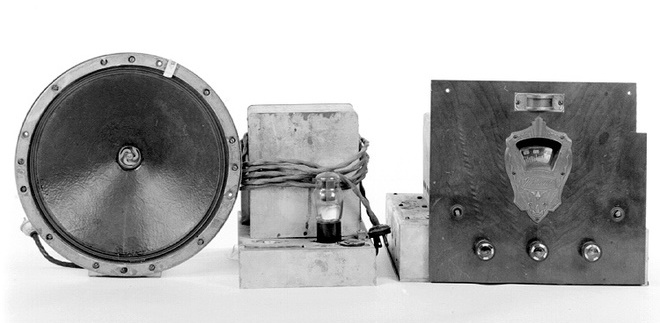

| Model 23 radio showing the principal parts when removed from the cabinet. .(Photo courtesy Canada Science and Technology Museum, Ottawa) |
Credits and References:1) Canadian Marconi Service Manual Vol. 1
2) The Early Development of Radio in Canada 1901 to 1930 by Robert Murray
3) https://ingeniumcanada.org/ingenium/collection-research/collection-item.php?id=1971.0375.001
4) https://www.radiomuseum.org/r/canadia_ma_23.html
5) Lewis Bodkin <05bodkin555(at)gmail.com>
