HOME ENTERTAINMENT -  MODEL 27SW  RADIO

Type: Superheterodyne, console with short wave capabiiloty
Circa: Nov 1931
Tubes: 11
Tube lineup: 4 x UY227; 2 x UY224; 2 x UY235;  2 x UY247; 1 x UX280
Power Input : AC 25 cycle only
List Price: $198.50
Comment: Also known as the "Deluxe International"



/027sw_01.jpg027sw_02.jpg
Model 27SW with doors closed and open.

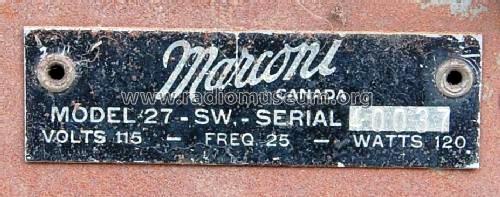

Model 27SW nameplate

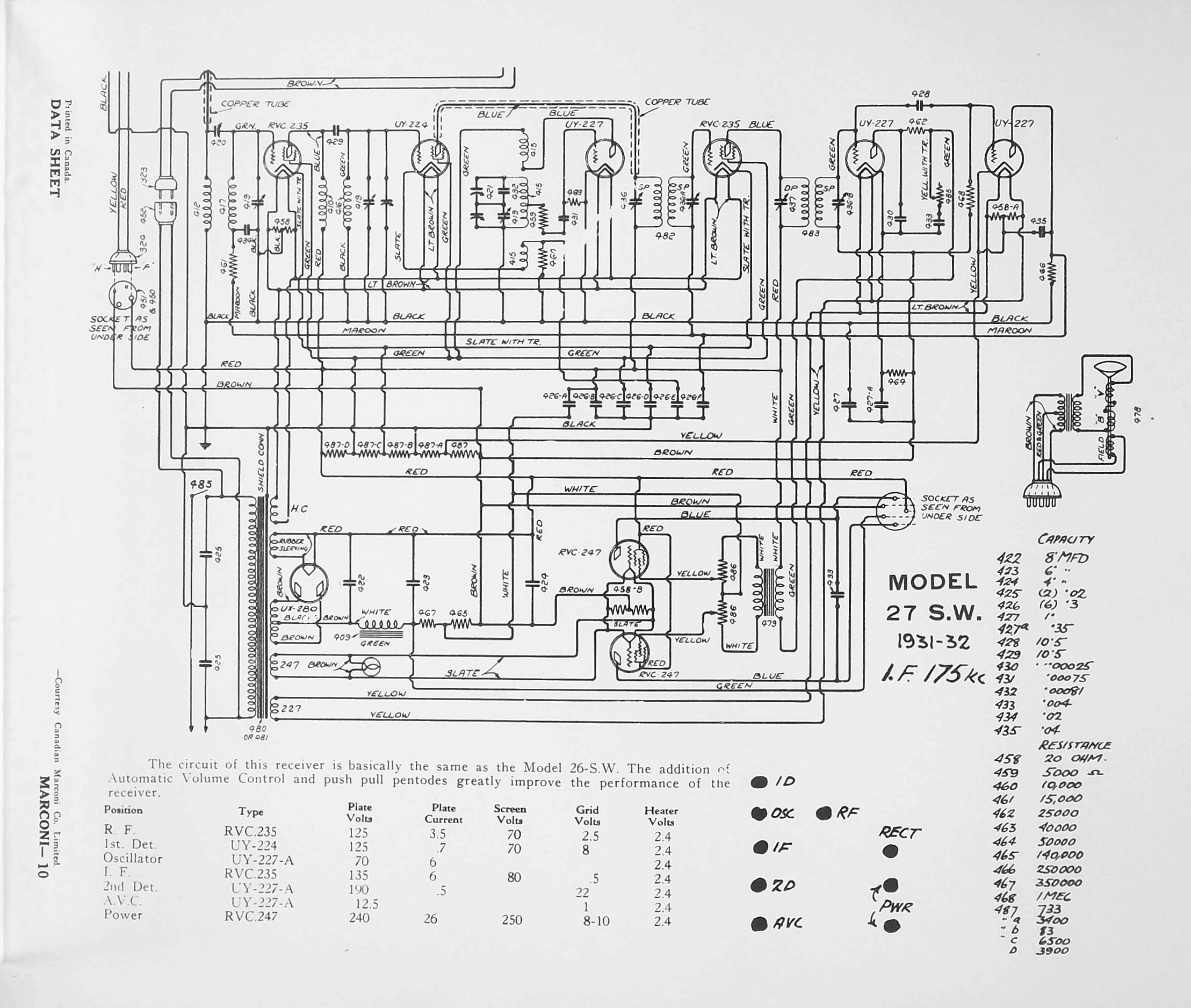

Model 27SW schematic. Download image to enlarge

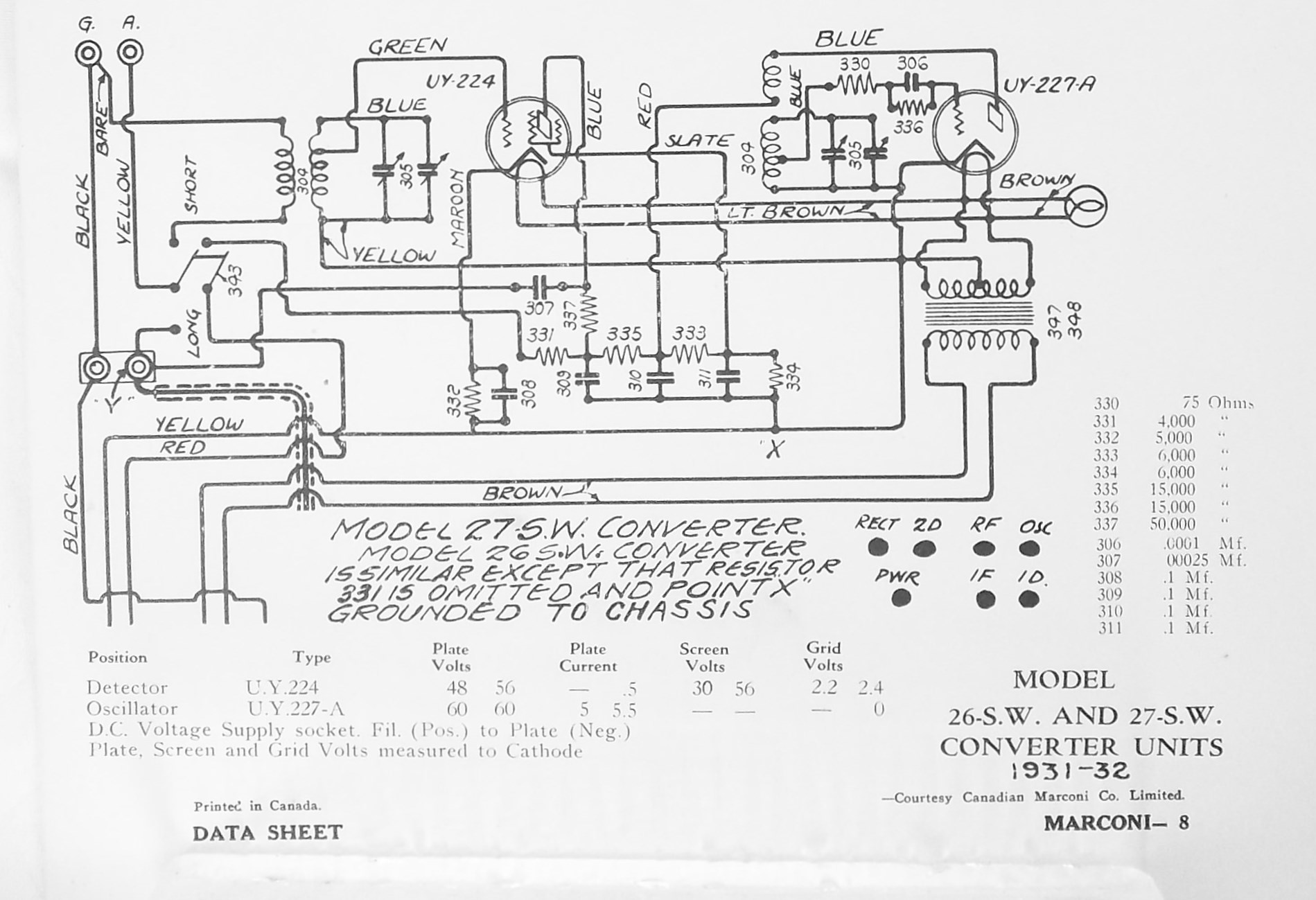

Model 27SW converter schematic.. Download image to enlarge

Credits and References:

1) "The Early Development of Radio in Canada" by Robert Murray
2) Lewis Bodkin 05bodkin555(at)mail.com>
3) Radiomuseum.org
