CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 33  RADIO

---

Type  8 tube , battery operated superheterodyne receiver.

Tube lineup:    5 x 230; 3 x 234

Coverage

Broadcast band and short wave  - 19 to 130 metres (16 MHz to 2307 KHz respectively).
Audio power:  ? watts
Speaker size:?




Model 33 chassis view

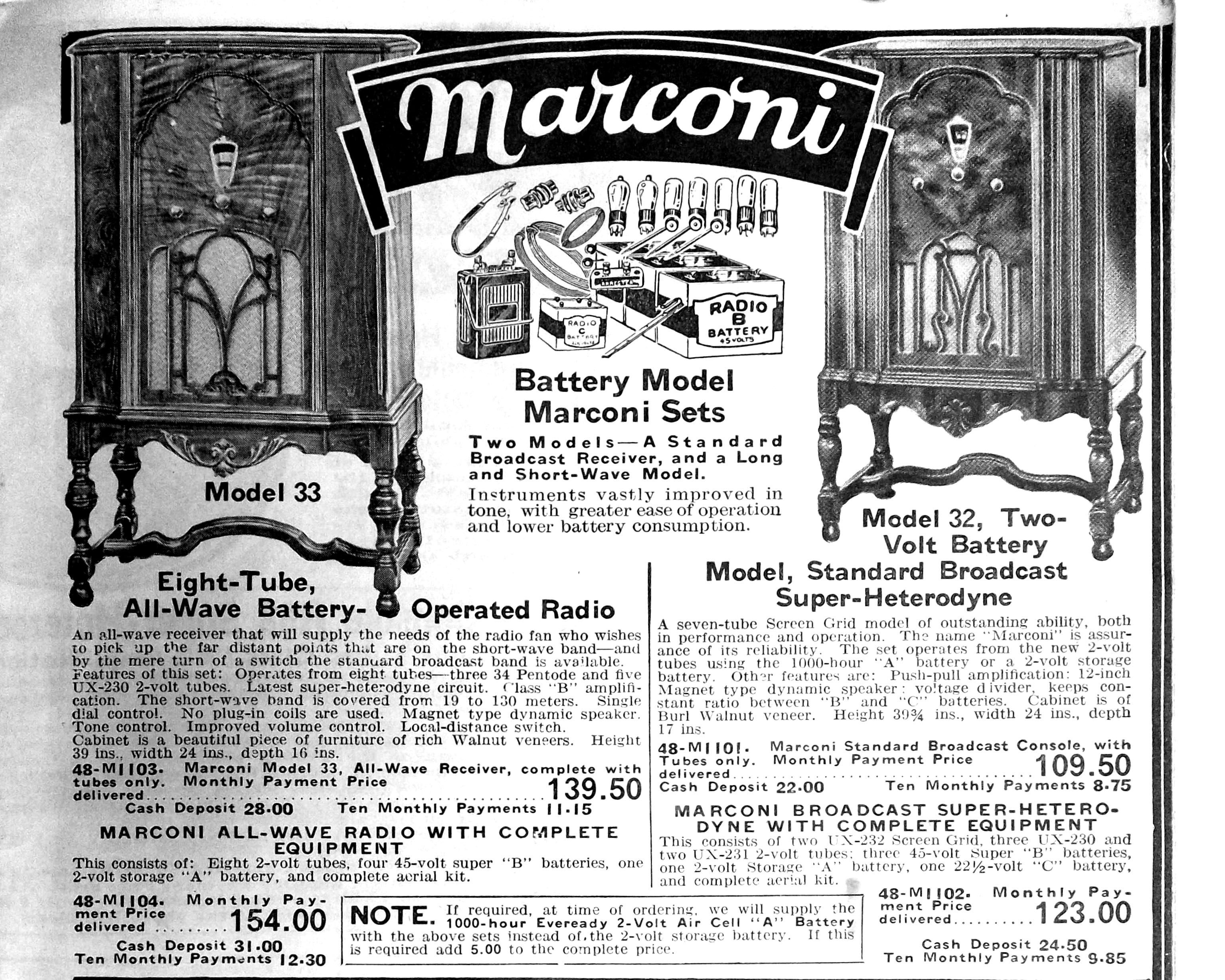

Model 32 and 33 consoles. This is an ad from a T.Eaton Winnipeg Fall & Winter 1932-33, Spring & Summer 1933 catalogue. Download to enlarge. (Provided by Lewis Bodkin) Does anyone have an actual photo of the model 33? If so, contact: jerry.proc@sympatico.ca

Model 33.. The grillework does not match the image in the ad so this might be a variant. The model  33  was also made as the 33 AW (All Wave)..

Model 33 rear view. This seems like a very odd way to mount a chassis in a cabinet. It is not known if this was a factory configuration or an adaptation of another cabinet  to a model 33 chassis by a previous owner.

Model 33 nameplate

All Model 33 photos in this table courtesy of Kijiji.ca


Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Ken Walls <capestir(at)gmail.com>
3) Lewis Bodkin 05bodkin555(at)mail.com>

Dec  6/20
