CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 49 and 51

MODEL 49

Type: 6 tube, AC operated superheterodyne receiver.
Frequency range: Broadcast - 535 to 1550 KHz
                               Short wave - 5.7 to 16 MHz


Tube lineup: 2 x 6D6 , 6A7, 6B7, 42, 80
Audio power:  3 watts maximum
Speaker size: The difference between Models 49 and 51 is the speaker size and cabinet style, however, the parts list does not indicate the speaker sizes.

Input power:

115 VAC 60 Hz 60 watts
115 VAC 25 Hz 65 watts

Dimensions: ?

/049_01.jpg
Cabinet - front view. This example is missing the knobs.

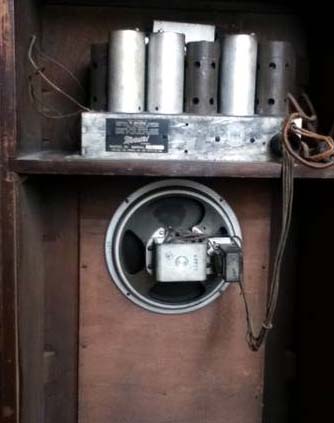

Chassis view
Dial detail
/049_04a.jpg

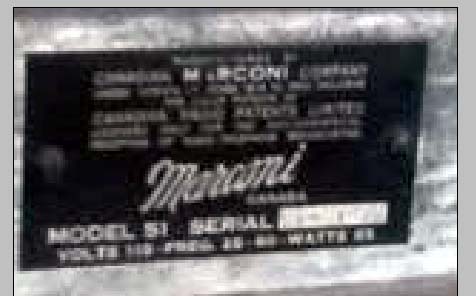

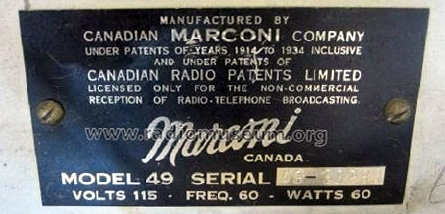

Nameplate
Top three images from Dan Walker of the Canadian Vintage Radio Society. Bottom image via Radiomuseum.org

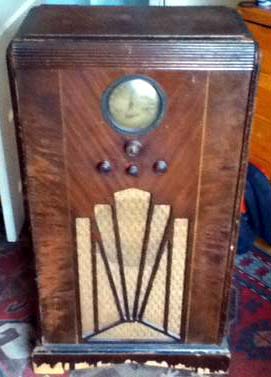

MODEL 51

Models 49 and 51 appear to share the same chassis, however  the Marconi Service Manual Vol 1 does not explain the differences between the sets. Perhaps it is just a difference in cabinet and speaker styles.
.
Looking for a Model 51 photo. Contact: jerry.proc@sympatico.ca
