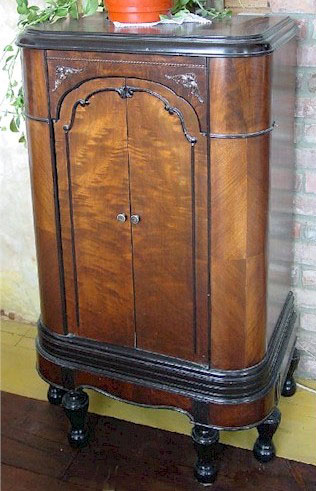

| Model 54 with doors closed. (Photo by Serge Hamault) |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 54 Type: 11 tube, AC superheterodyne receiver.
Frequency range: 540 to 16700 KHz divided into three bands.Tube lineup: 6D6, 6A7, 6D6, 76, 76, 4 x42, 89, 5Z3
Audio power: 10 watts maximum
Speaker size: ?
Input power: 115 VAC 25/60 Hz 110 watts
Comment: Has an overload indicator which illuminates when the audio level reaches a predetermined level.
|
| Model 54 with doors closed. (Photo by Serge Hamault) |
 |

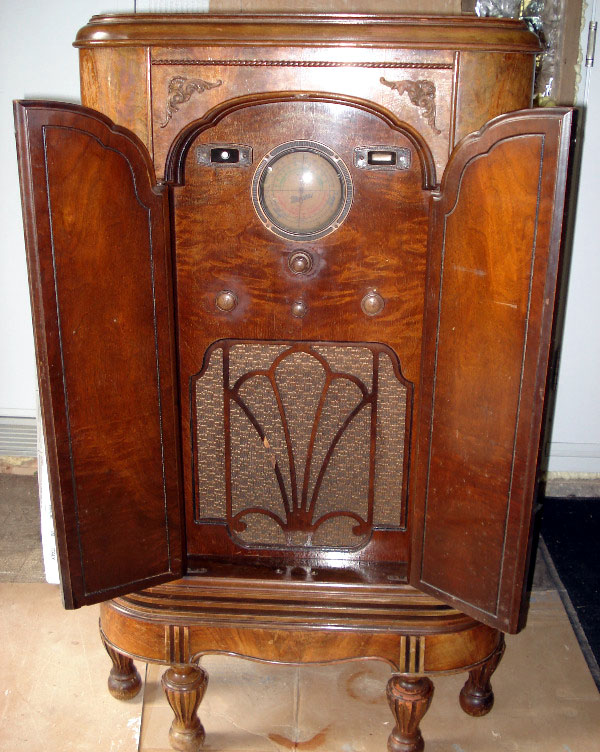

| Model 54 front view |
 |
| Model 54 rear view |
 |
| Model 54 nameplate |
| All model 54 photos in this table by Ken Walsh |
.
 |
| Model 54 chassis view (Courtesy Cdn Marconi Service Manual Vol 1) |
Contributors or References:1) Canadian Marconi Service Manual - Volume 1
2) Ken Walsh <capestir(at)gmail.com>
3) Lewis Bodkin 05bodkin555(at)mail.com>
Jan 15/20
