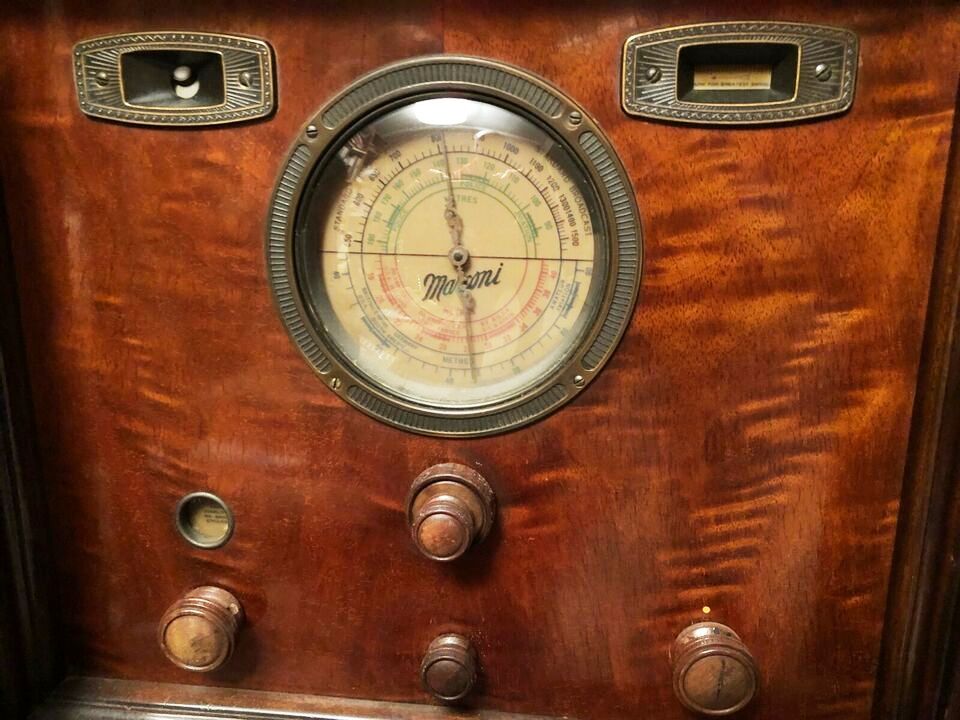

| Model 55- Closeiup of dial. |
 |

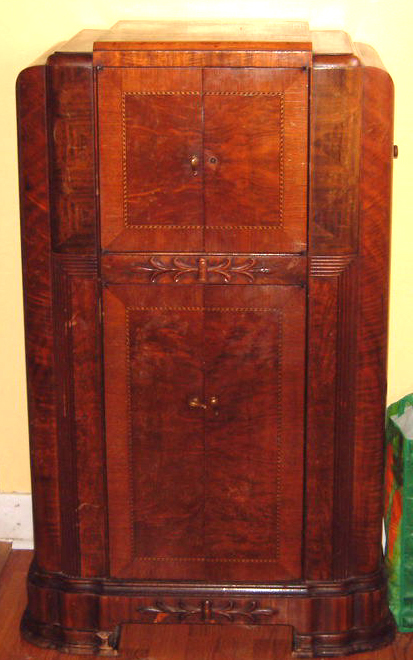

| Model 55 front view with doors closed. |
 |
| Model 55 rear view #1 |
 |
|
|
 |
| Model 55 rear view #3 |
| All photos in this table by Patrick Difresne |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 55 Type: 14 tube, AC superheterodyne receiver.
Frequency range: 540 to 16700 KHz divided into three bands.Tube lineup: 6D6, 6A7, 6D6, 3 x 76, 89, 5Z3, 80, 4 x 2A5
Audio power: 12 watts maximum
Speaker size: ?
Input power: 115 VAC 25/60 Hz 140 wattsComment: Has overload indicator which illuminates when the audio level reaches a predetermined level. Uses two speakers.
|
