CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 57
Type: 6 tube, battery powered, superheterodyne receiver.
Frequency range: 540 to 1520 KHz
5750 to 15400 KHz
Tube lineup: 34, 1C6, 34,1A6, 30, 33
Audio power: 600 milliwatts maximum
Speaker size: ?
Input power: Battery
'A" battery - 2.1 VDC @600 ma
'B' battery - 90 VDC @20 ma
Comment: The dial in the actual model 57 is different than the one which appears in the Eaton's ad below.

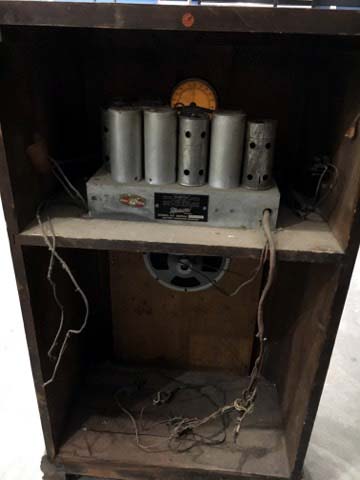

Front view Dial and front panel controls Rear view. Nameplate . Serial 57-51146 All photos in this table by Cole Kushnir
|Model 57 (top radio). From the Eaton`s Fall 1934 and Spring 1935 catalogue, Download image to enlarge. (Provided ny Lewis Bodkin)|

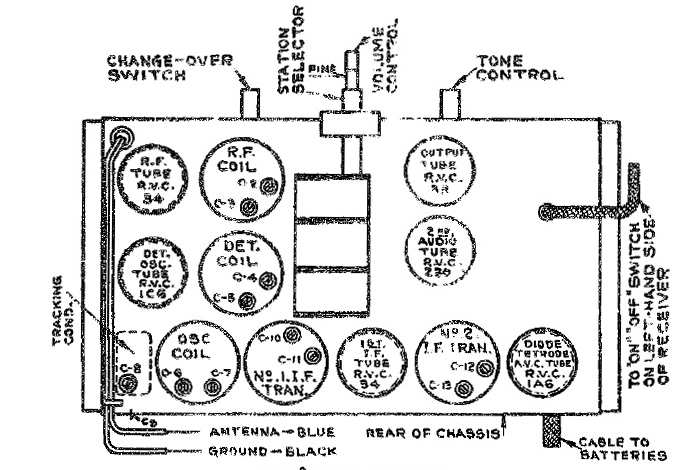

|Model 57 Chassis View|
Contributors or References:

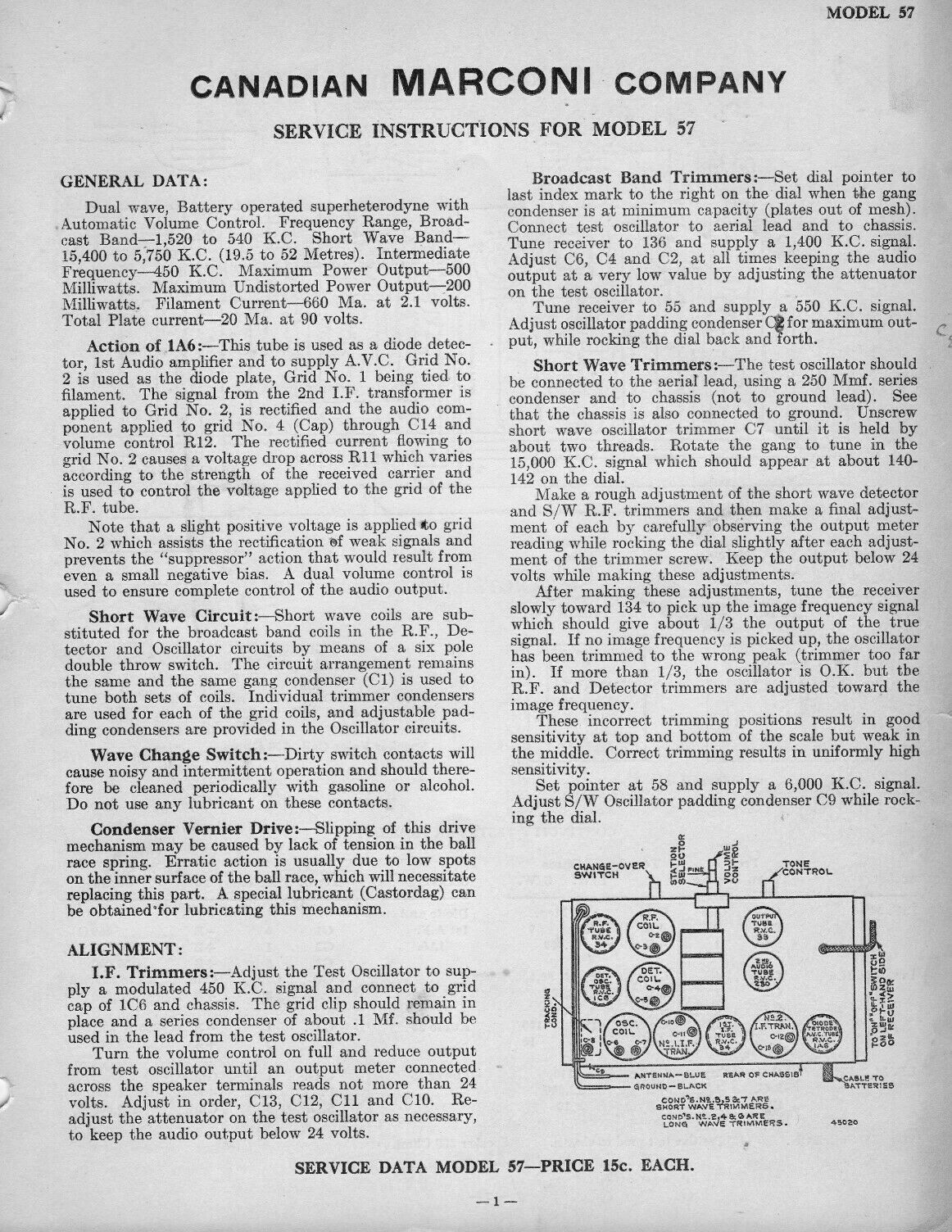

1) Canadian Marconi Service Manual - Volume 1
2) Cole <email@example.com>
