CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 64 , 64 DC and 65

---

MODEL 64

Type: 6 tube, battery powered superheterodyne receiver

Frequency range:
Broadcast - 525 to 1725 KHz
Short Wave - 5.8 to 18 Mhz

Circa: 1936
Tube lineup: 2 x 34, 1C6, 1A6, 30, 33
Audio power:  0.485 watt
Speaker size: ?

Input power:

Filament -  Storage cell  2.1 VDC @ 620 ma
B+   - 135 VDC @  26 ma . This was comprised of three 45 volt batteries in series.
No 'C'  battery required.

This appears to be an ad for the model 62AC and 64DC radios. (Image courtesy RadioMuseum.org)

The Canadian Marconi Service Manual Vol 1 does not provide any data about the model 64DC.

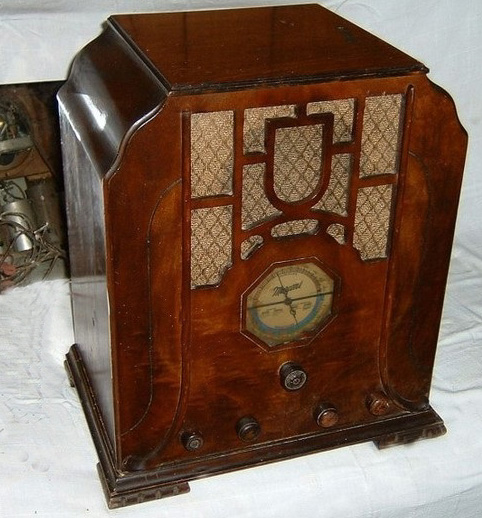

Model 64DC radio. ( Photo credit unknown)

The Marconi Service Manual Vol 1 indicates that the Model 65 was the second production run for the Model 64. To prevent confusion, it appears that Canadian Marconi assigned a new model number for the second production run.

In the second production run, a 1B5 diode-triode was substituted as a second detector and first audio in place of the 1A6. In addition an audio transformer was used in place of an R-C coupling network.


An image of the model 65 (top) can be found in this ad from Radio Trade Builder magazine ,Sept. 1935. Click on thumbnail to enlarge. (Provided by Lewis Bodkin)

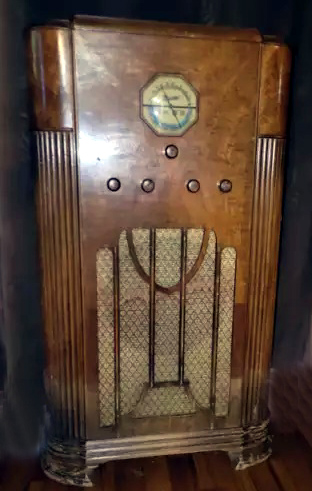

Model 65

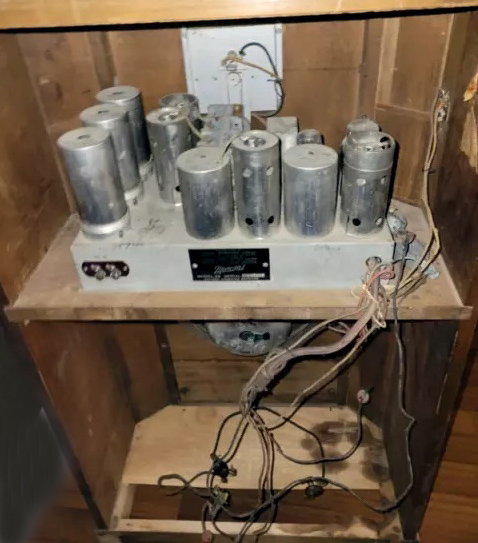

Model 65 rear view.

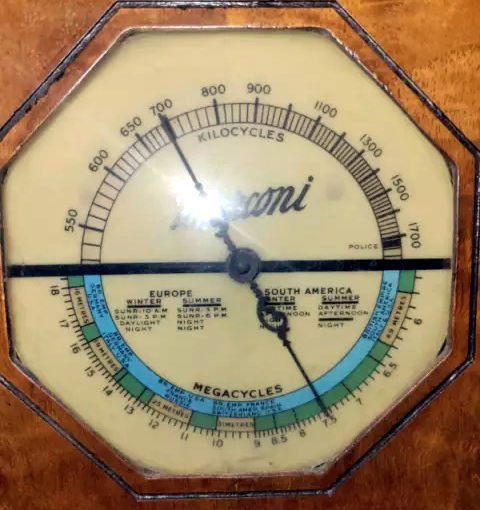

Model 65 closeup of dial

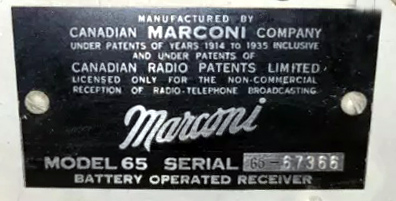

Model 65 nameplate.

All model 65 photos in this table via Kijiji.ca

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Tom   TWACHSEN@aol.com
3) http://www.radiomuseum.org/r/canadia_ma_62_ac.html
4) Lewis Bodkin 05bodkin555(at)mail.com>

Mar 2/22
