CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 78

Type: 4 tube, AC powered superheterodyne receiver
Frequency range: 520 to 1950 KHz
Tube lineup: 6A7, 6F7, 6F6, 80
Audio power:  2.5 watts
Speaker: 6 inch dynamic
Vintage: 1936


Input power:

115 VAC 60 Hz 51 watts
115 VAC 25 Hz  53 watts

Dimensions: Height - 9.5 inches
                     Width - 17 inches
                     Depth - 7.5 inches

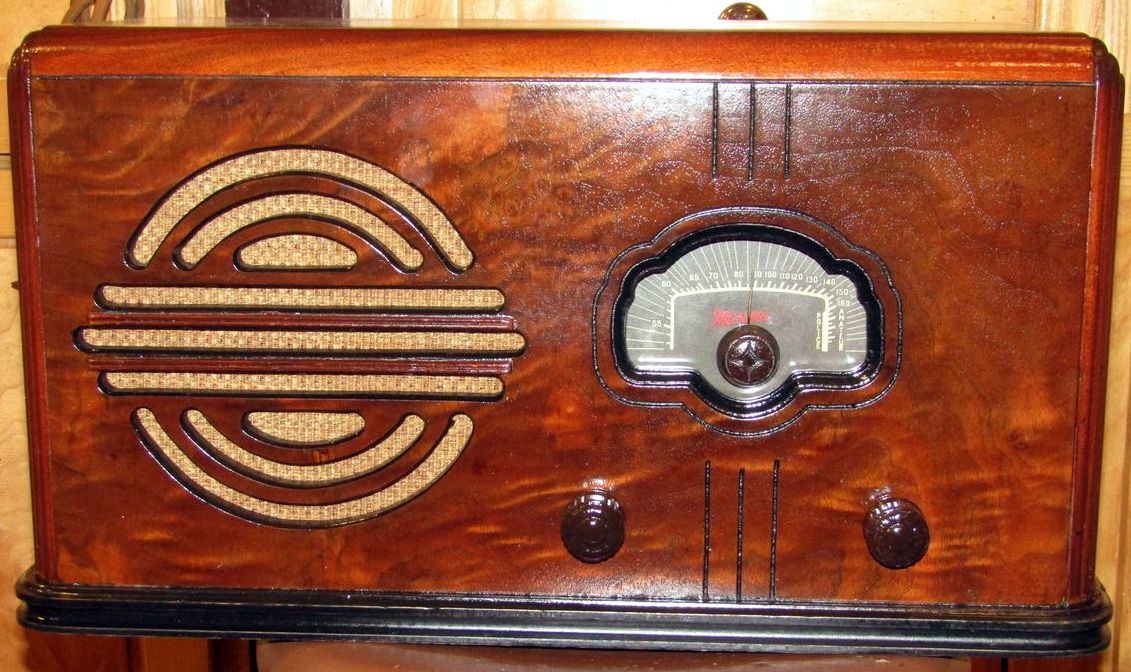

Model 78 - front view

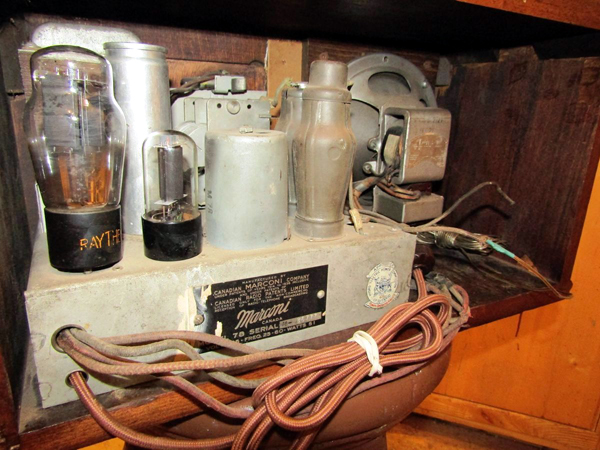

Model 78 - rear view

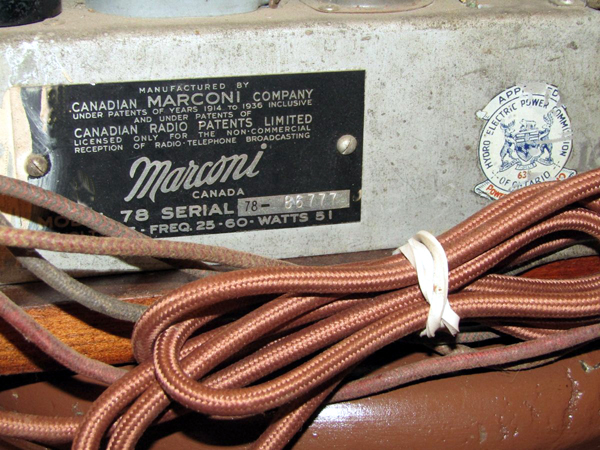

 Model 78 - nameplate. The toggle switch and phono jack are an after-factory modification that someone made to accomodate a phonograph.

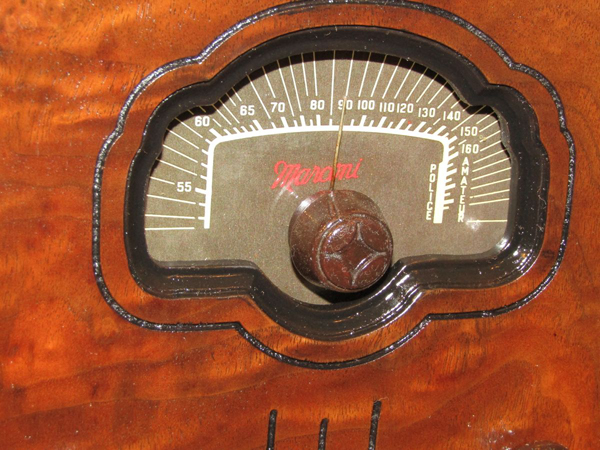

Model 78 - dial detail




Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) lizreidcanada <lizreidcanada(at)gmail.com>
