CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 89 and 89A RADIOS

Type:   5 tube battery operated, superheterodyne receiver.

Frequency range: 527 to 1725 KHz.
                             9400 to 9750 KHz

Tube lineup:  1C6, 1A4, 1B5, 30, 19

Audio power:  950 milliwatts
Speaker size:  8 inch

Input power:

'A' battery - 2 volts @ .56 amp
'B' battery - Two 45 volt batteries in series @ 15 ma
'C' battery - 4.5 volt


/089a_01.jpg

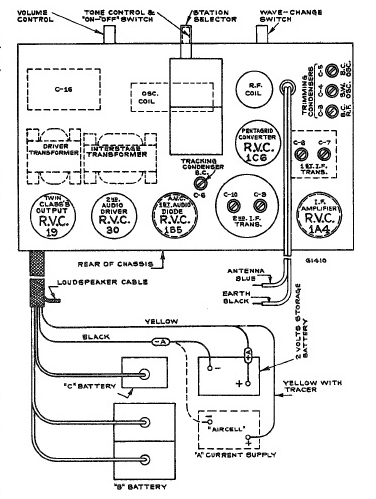

Model 89/89A chassis view.
