CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 93 and 94 RADIO

Type:   6 tube battery operated, superheterodyne receiver.

Frequency range: 528 to 1630 KHz.
                             1620 to 6250 kHz
                              5200 to 18000 KHz

Tube lineup: 15, 6A8, 15, 6Q7, 6C5, 19

Audio power:  1.35 watts
Speaker size:  Model 93 - 8 inches
                        Model 94 - 10 inches

Input power: 6 volts @ 2.6 amps. This set uses a vibrator power supply so only one battery is needed.

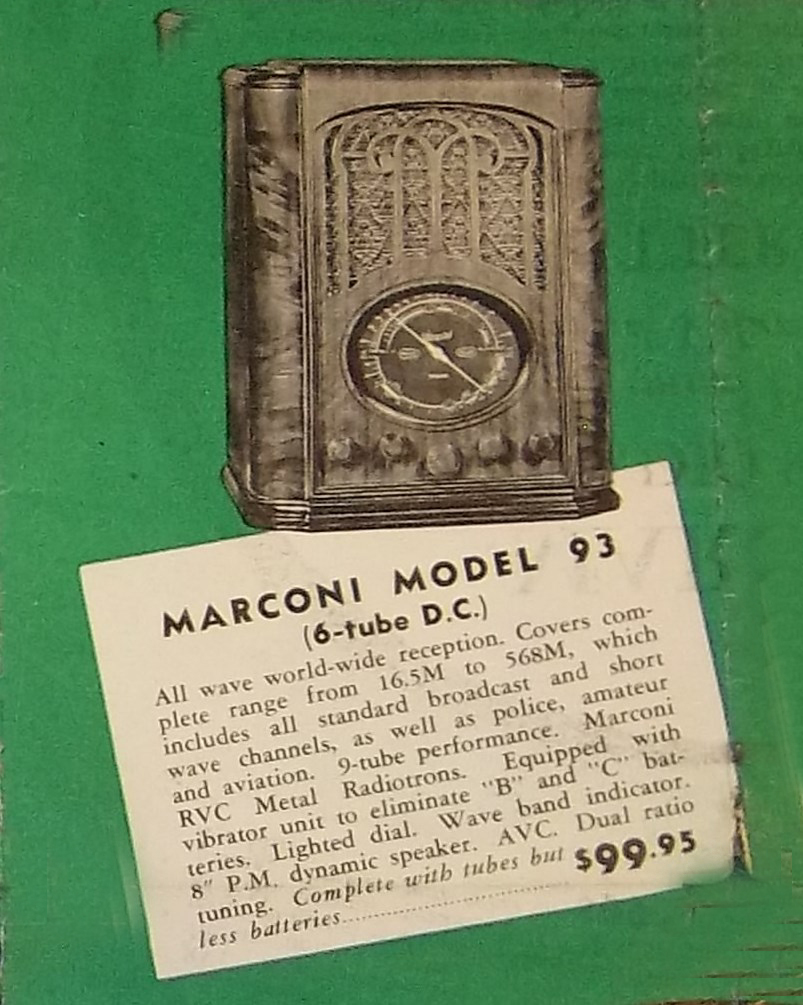

Model 93 from a 1937 ad.
Model 93 radio. This example is held in the collection of the Markham Museum, Markham Ontario. (Photo by Lewis Bodkin)

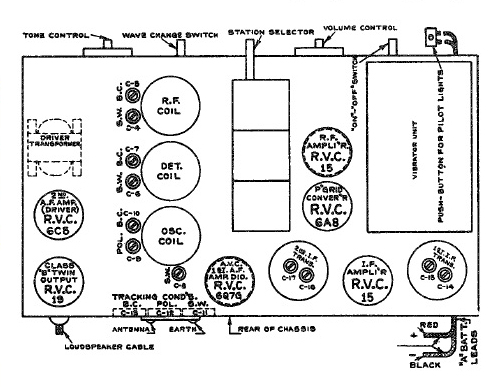

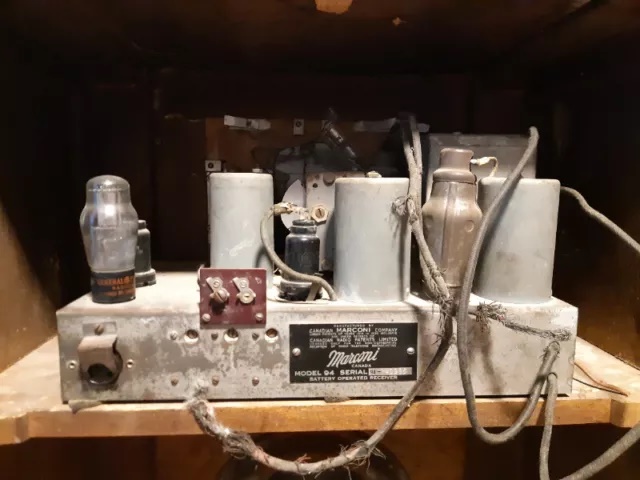

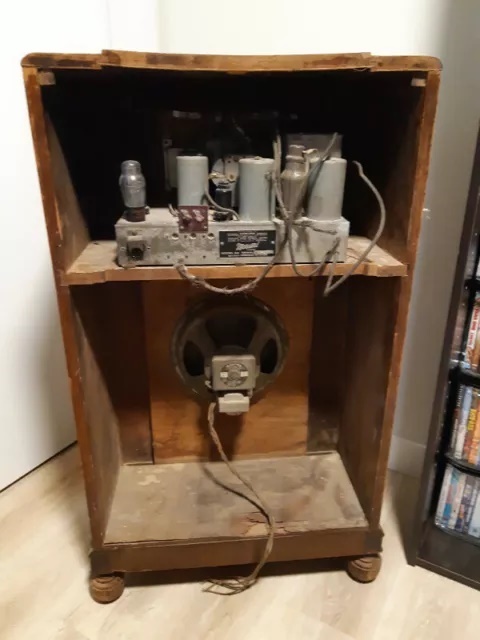

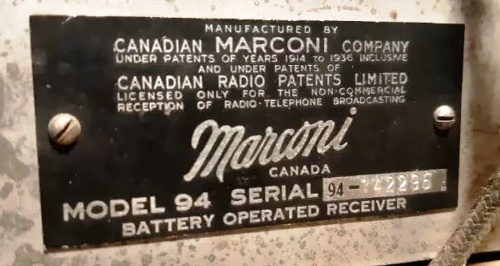

Model 93 and 94 chassis view.

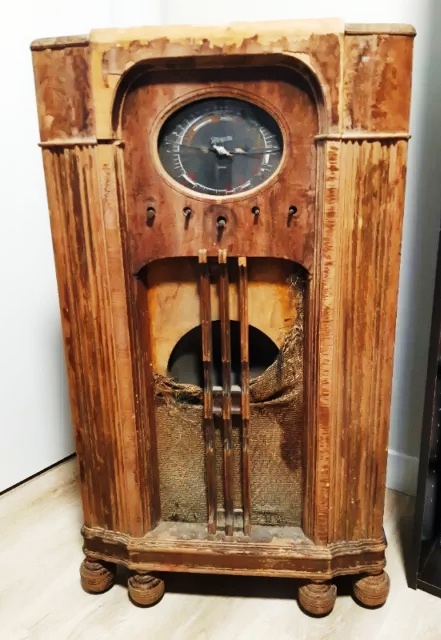

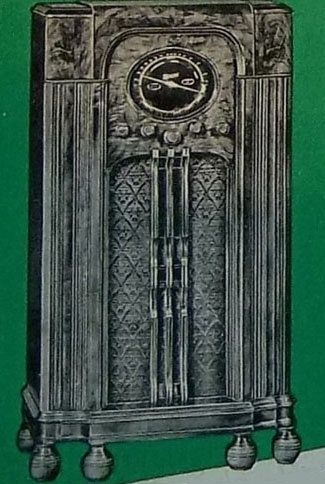

Model 94 rddio.

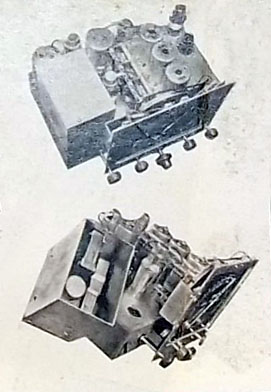

This is the vibrator unit for the models 93 and 94. It is mounted on the left side of the chassis. Shown are views with cover on and cover off. (Cdn MAaconi advertising brochure)
