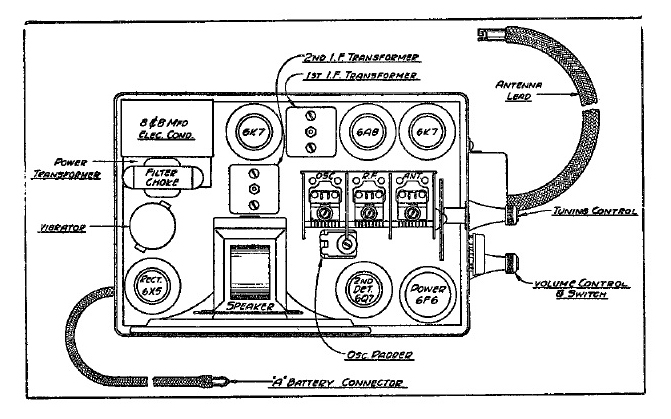

| Model 95 chassis view. The control head is not depicted in the Marconi Service Manual Vol 1. |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 95 RADIO Type: 6 tube, battery operated, superheterodyne car radio.
Frequency range: Broadcast band.
Tube lineup: 6K7, 6A8, 6K7,6Q7, 6F6, 6X5Audio power: ? watts
Speaker size: ?Input power: 6 volts @ ? amps. This set uses a vibrator power supply and tubes with 6 volt filaments so only one 6 volt source is needed. to power the set.
| Model 95 schematic, chassis view and alignment information. |
| Looking for images of Model 95. Contact: jerry.proc@sympatico.ca |
|
| Model 95 chassis view. The control head is not depicted in the Marconi Service Manual Vol 1. |
Contributors or References:1) Canadian Marconi Service Manual - Volume 1
Jul 13/18
