CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 96, 97 RADIOS

---

Type:   6 tube, battery operated, superheterodyne receiver. Models 96 and 97 share the same chassis.

Frequency range:

527 to 1675 KHz
1630 to 5350 KHz
5240 to 18240 KHz

Tube lineup: 1D5, 1C7, 1D5, 1H6, 1H4, 1J6
Audio power:  880 milliwatts

Speaker size:
Model 96: 8 inches
Model 97: 10 inches.

Input power: Battery. Consisting of:

One 2 volt 'A' battery @ 0.62 amps
'B' battery . 135 volts @20 to 25 ma. Consists of three 45 volt batteries in series.
Two 'C' batteries of 4.5 volts each.
Two # 6 dry cells to illuminate the pilot lights.

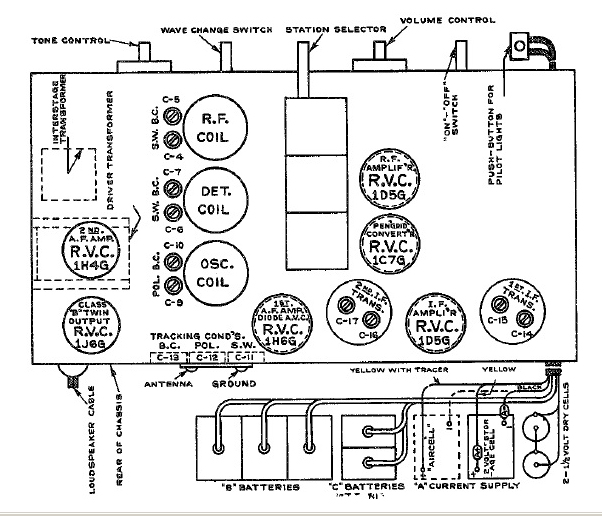

Model  96 or 97  chassis view.

Also, looking for an actual photo of a Model 96 . Contact: jerry.proc@sympatico.ca

Model 96 radio as it appeared in an ad.

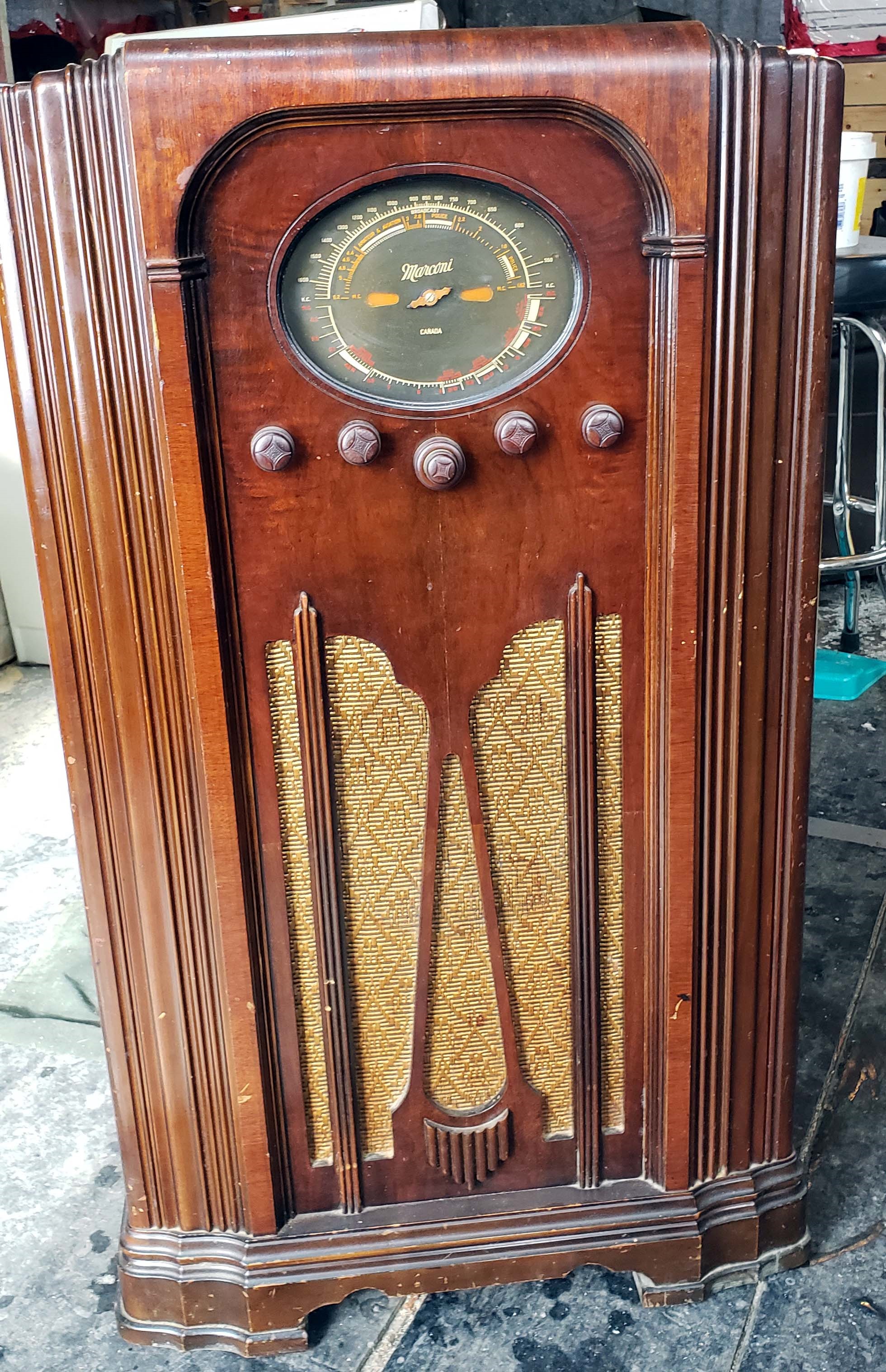

Model 97. Click on image to emlarge.  (Photo by Barry Price)

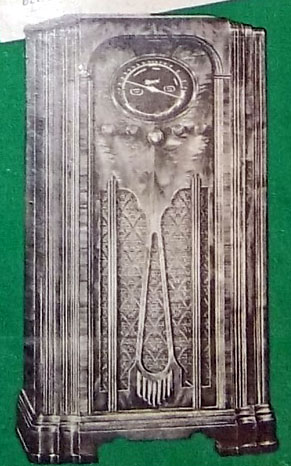

The Model 97 radio as it appeared in an ad.


Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Barry Price [barryprice635(at)hotmail.com]

Feb 9/22
