CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 98 RADIO

Type:   4 tube, AC operated, superheterodyne receiver. .
Frequency range:  527 to 1950 KHz

Tube lineup: 6A8, 6P7, 41, 1-V
Audio power:  700 milliwatts
Speaker size: 5 inch dynamic

Input power:

115 VAC 60 Hz 29 watts
115 VAC 25 Hz 31 watts

/098_01.jpg

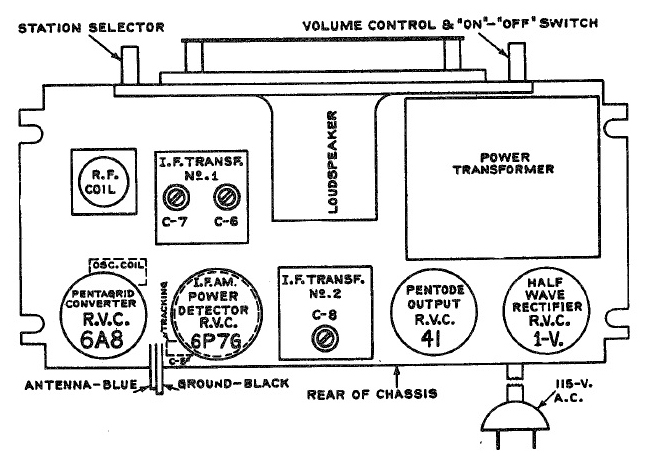

Model 98 chassis view.
Also, looking for images of Model 98. Contact: jerry.proc@sympatico.ca

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
