CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 99 RADIO

Type: 4 tube, AC operated superheterodyne receiver.
Frequency range: 527 to 1950 KHz.
Tube lineup: 6A8, 6P7G, 6F6, 5Y4G
IF: 462.5 kHz
Audio power: 1.6 watts
Speaker size: 6 inch

Power : 115VAC 60 Hz 47 watts
             115 VAC 25 Hz 51 watts




Front view
home_entertainment/099_rear.jpg

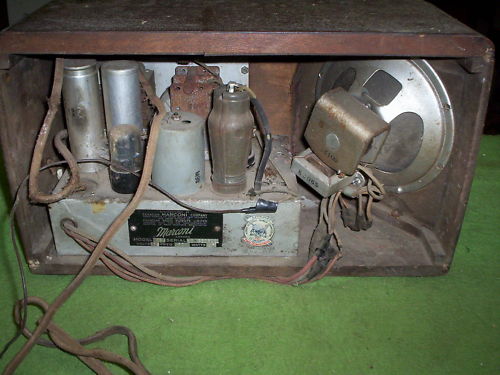

Rear view.
Both images above via E-bay

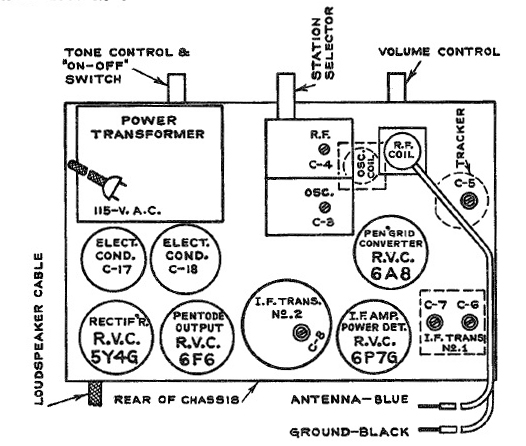

Chassis layout .(Courtesy Canadian Marconi Service Manual)
Contributors or References:

1)) Canadian Marconi Service Manual Vol 1.
