CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 100 and 101 RADIO

Type:  5 tube superhetrodyne receiver.

Frequency range: 527 to 1630 KHz;  1.605 MHz to 5.250 MHz; 5.190 to 18.050 MHz
Tube lineup: 6A8 6K7 6Q7 6F6 5Y4G
Audio power: 2.56 watts undistorted
Speaker:  Model 100 - 8 in. dynamic
                Model 101 - 12 in. dynamic
Input power: 115 VAC 60 Hz - 56 watts
                     115 VAC 25 to 60 Hz  62 watts
Dimensions:
For model 100: 20.25 W x 10.5 in H x 9 in D
For model 101: 23 in  W x 30 in H x 12 in D

Original selling price
For model 100: S71.95
For model 101: $ 94.95
Comment:  Models 100 and 101 are electrically identical except for speaker size, power consumption. and cabinet styles.


home_ent/100_01.jpg
Model 100 front view .
home_ent/100_02.jpg

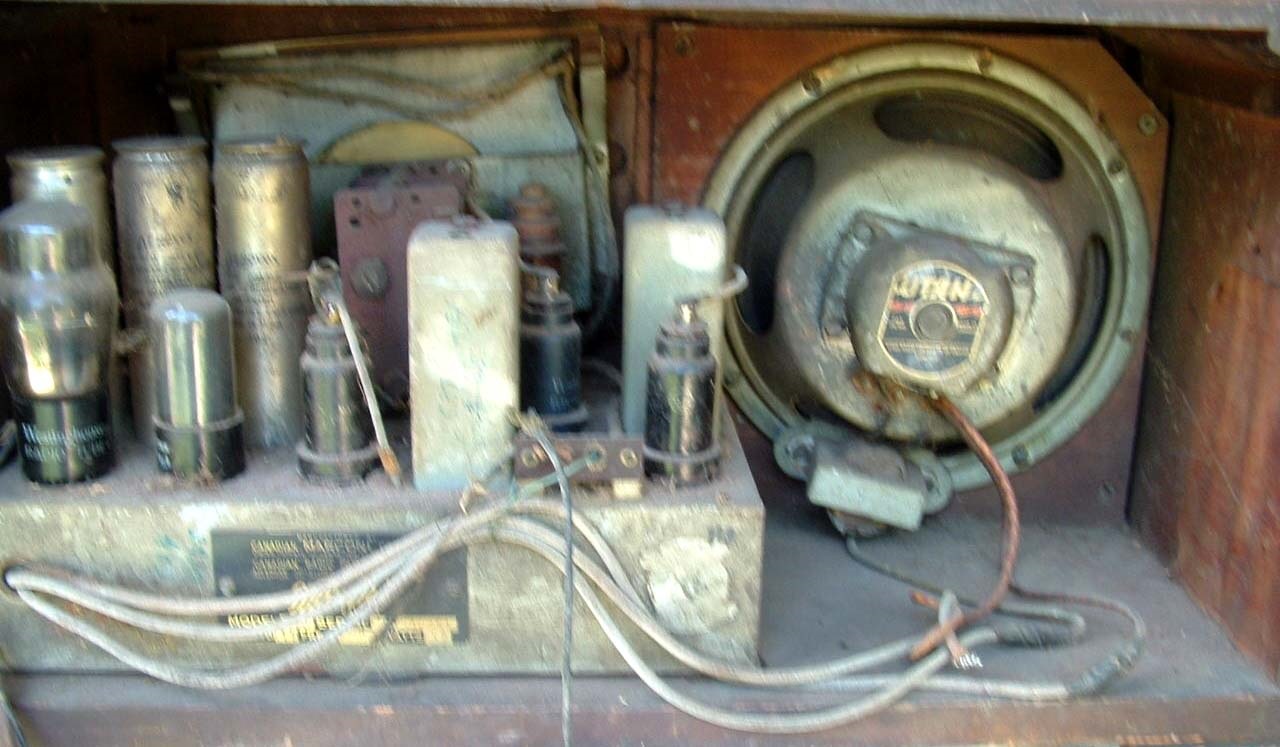

Model 100 rear view.
home_ent/100_03.jpg

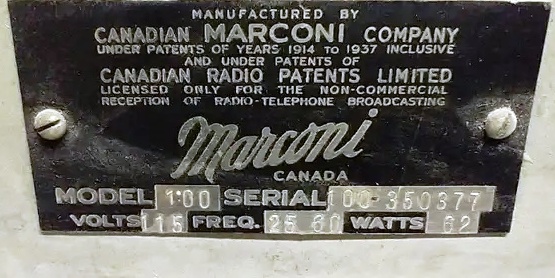

Model 100 nameplate
Photos in this table via E-bay

MODEL 101 PHOTOS

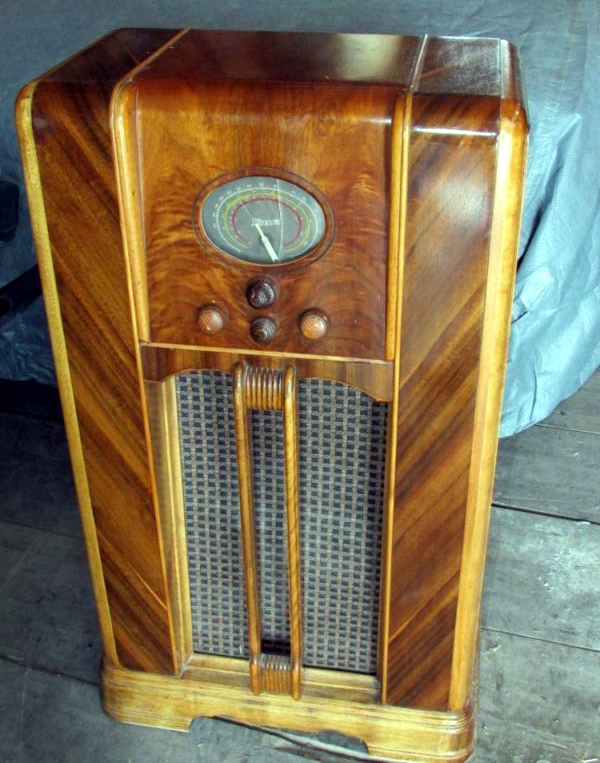

Model 101 front view
/101_03.jpg

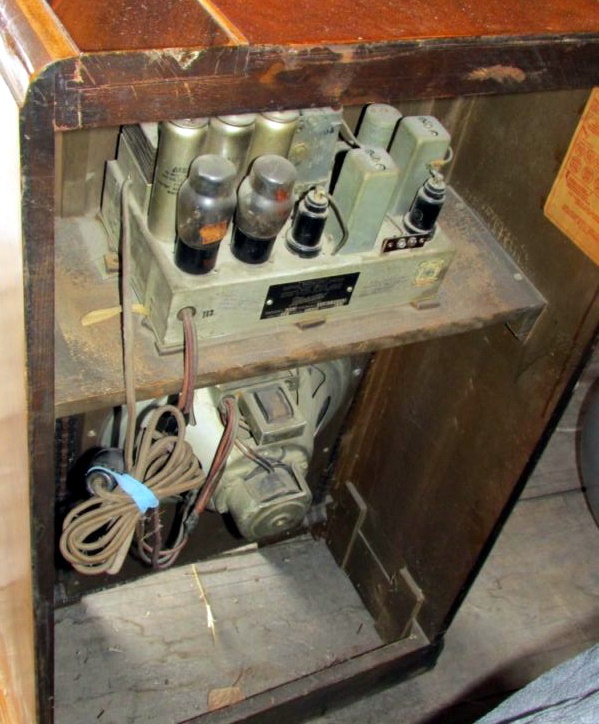

Model 101 rear view
Model 101 images courtesy Kijji Canada


Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Ken Walsh <capestir(at)gmail.com>
