CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 102

Type: 8 tube, AC superheterodyne receiver.

Frequency range:

524 to 1750 KHz
1680 to 5700 KHz
5400 to 18200 KHz.

Tube lineup: 6K7, 6A8, 6C5, 6K7, 6Q7, 6L6, 5Y4, 6G5
Audio power:  6.5 watts
Speaker: 12 inch

Input power:

115 VAC 60 Hz 87 watts
115 VAC  25 Hz 94 watts

Cabinet: Console


Chassis view via Marconi service manual

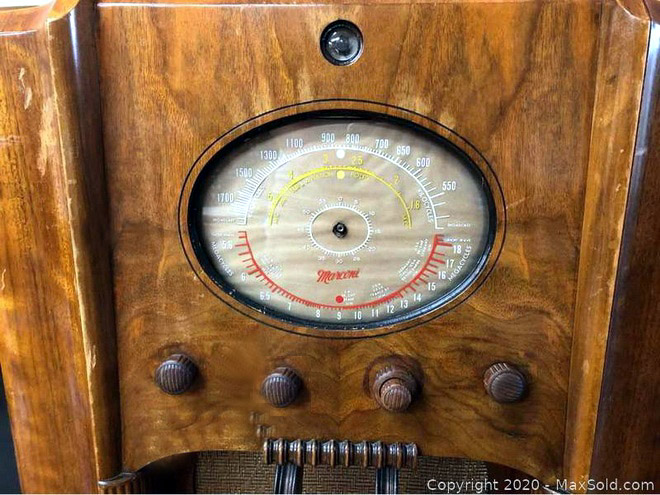

Also looking for model 102  image. Contact : Jerry.Proc@sympatico.ca

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
