CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 106 and 107

Type: 5 tube, battery operated   superheterodyne receiver.
Frequency range: 527 to 1725 KHz
9400 to 9700 KHz
Tube lineup: 1G7, 1F7, 1E5, 1H4, 1J6
Audio power:  700 mw
Speaker: 8 inch
Vintage: 1937 - 1938

Input power:
'A' battery - 2 volts
'B' battery - 90 volts
'C' battery - 4.5 volts

Cabinets:
Model 106 - Mantel version
Model 107 - Console version

Original model 106 ad. Looking for a better model 106 image. Contact : Jerry.Proc@sympatico.ca

106 PHOTOS

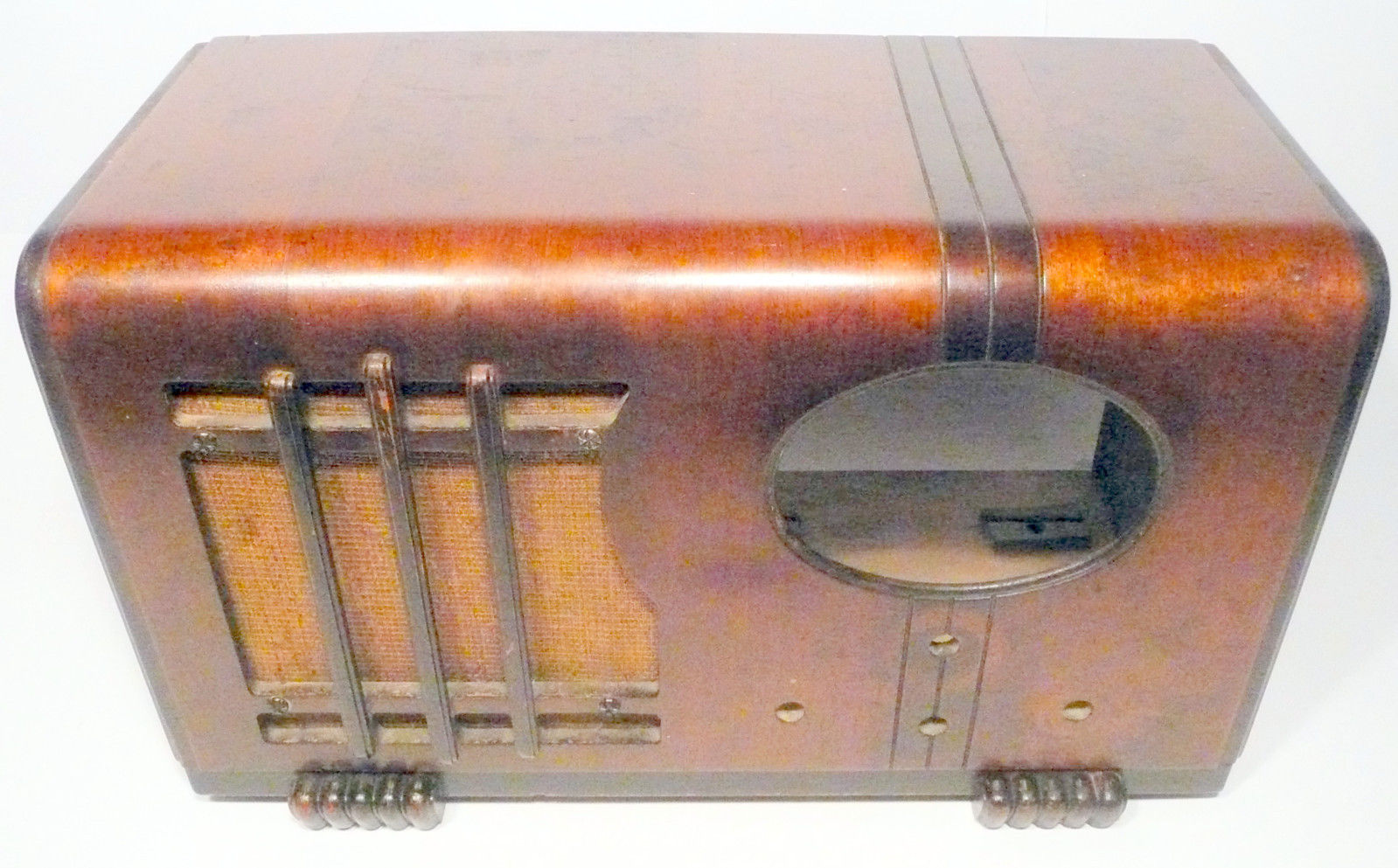

Model 106 cabinet only

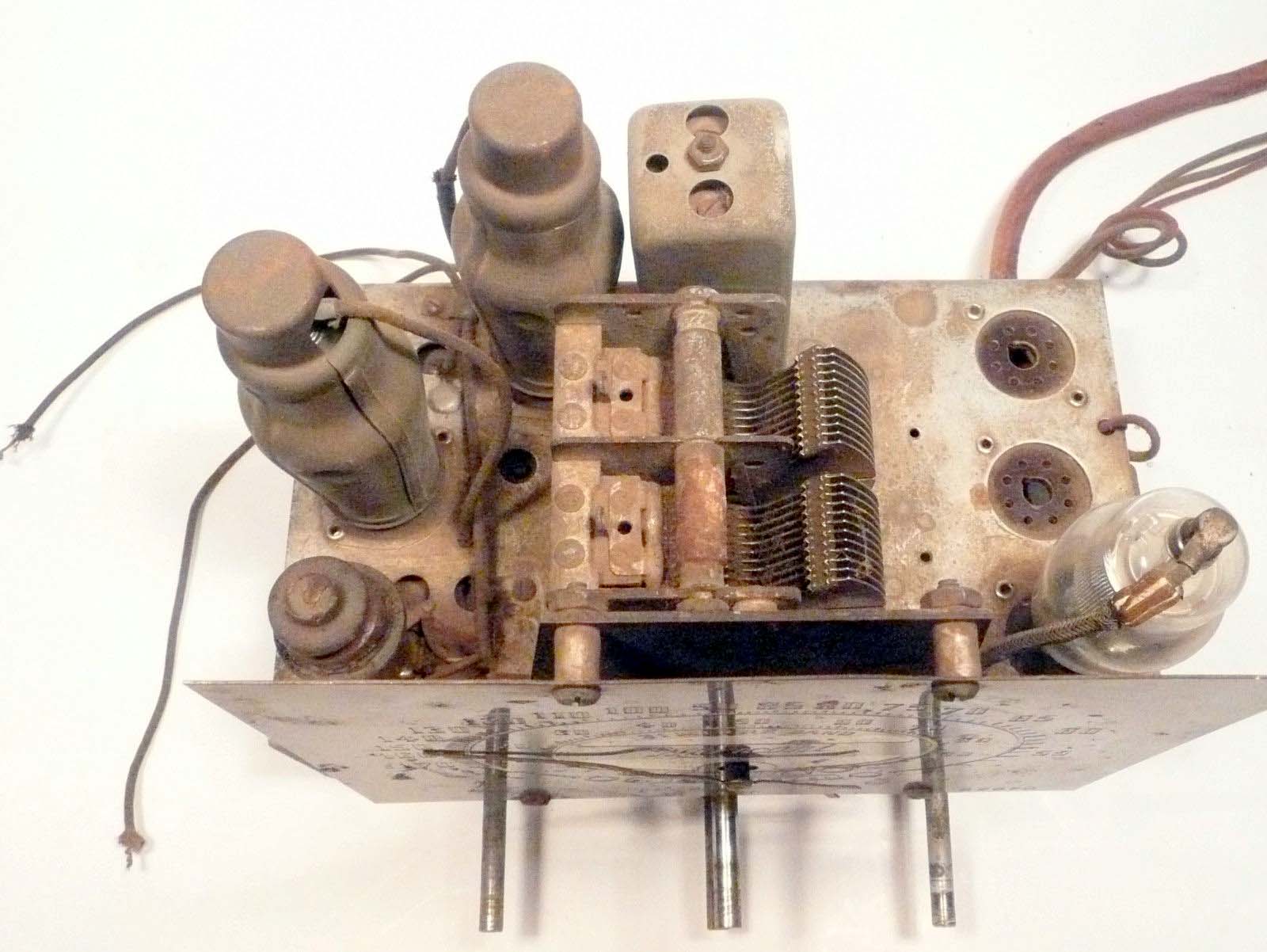

Model 106 - Top view of chassis

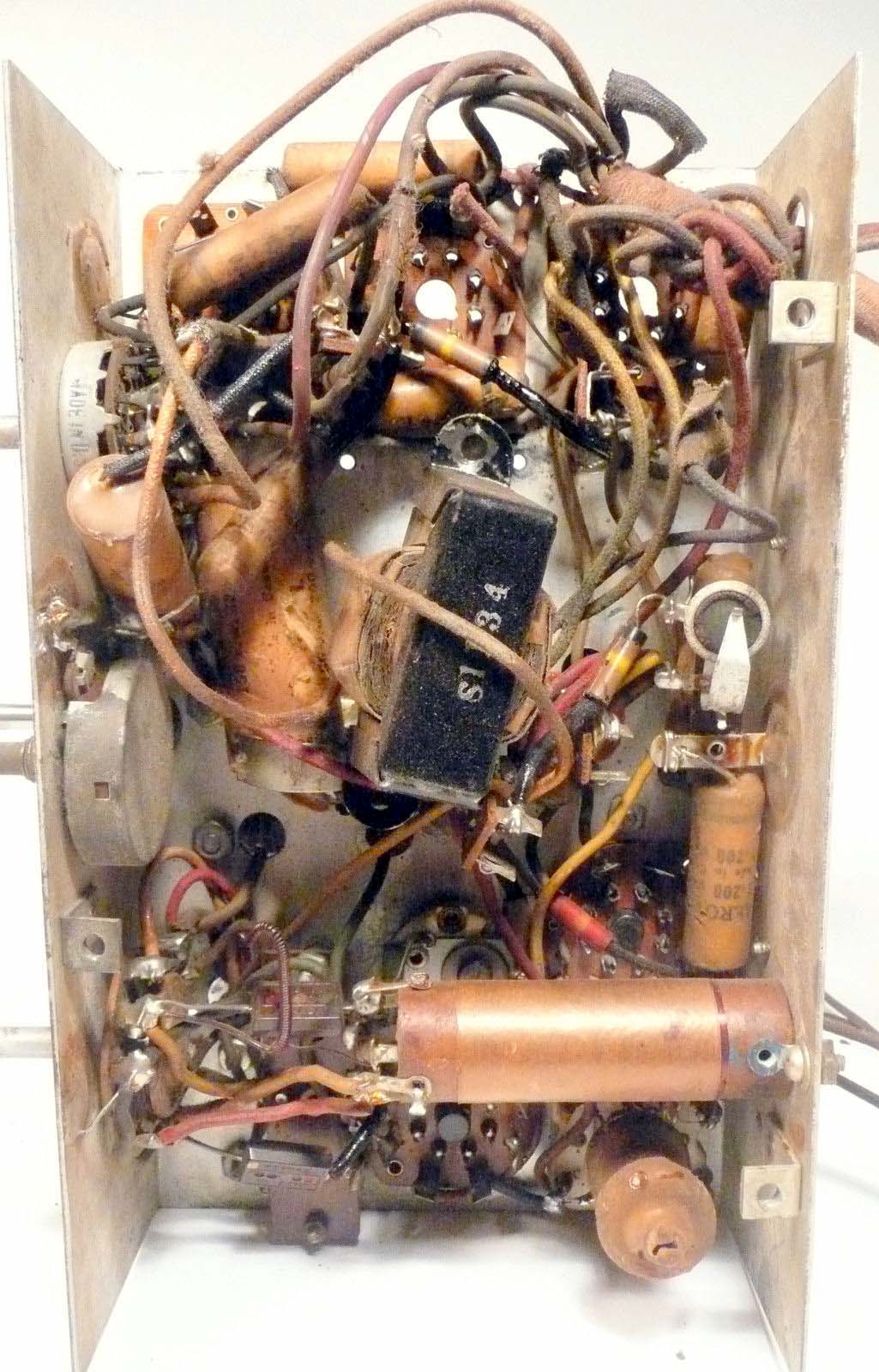

Model 106 - Bottom view of chassis
Model 106 - Closeup of dial

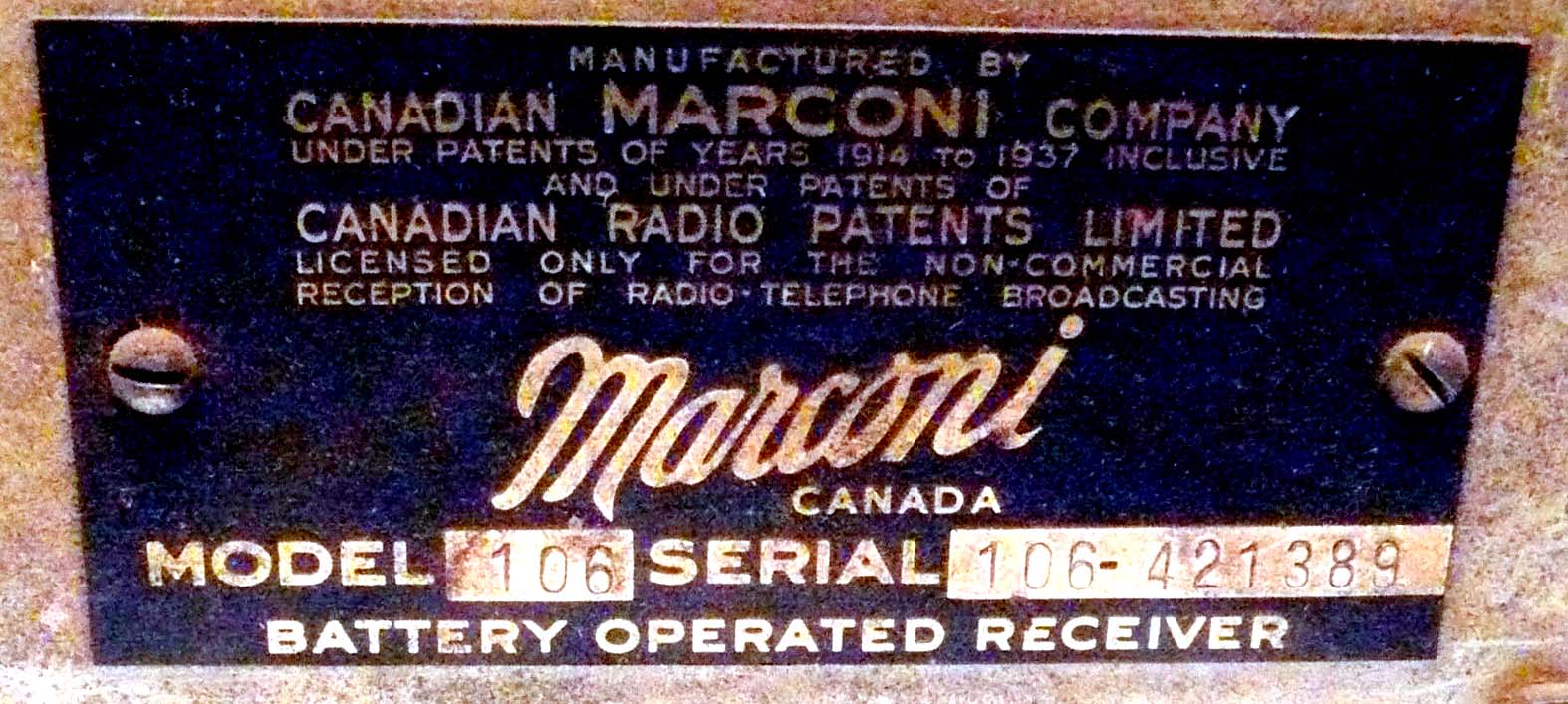

Model 106 - Nameplate
All model 106 photos in this table courtesy E-bay

107 PHOTOS

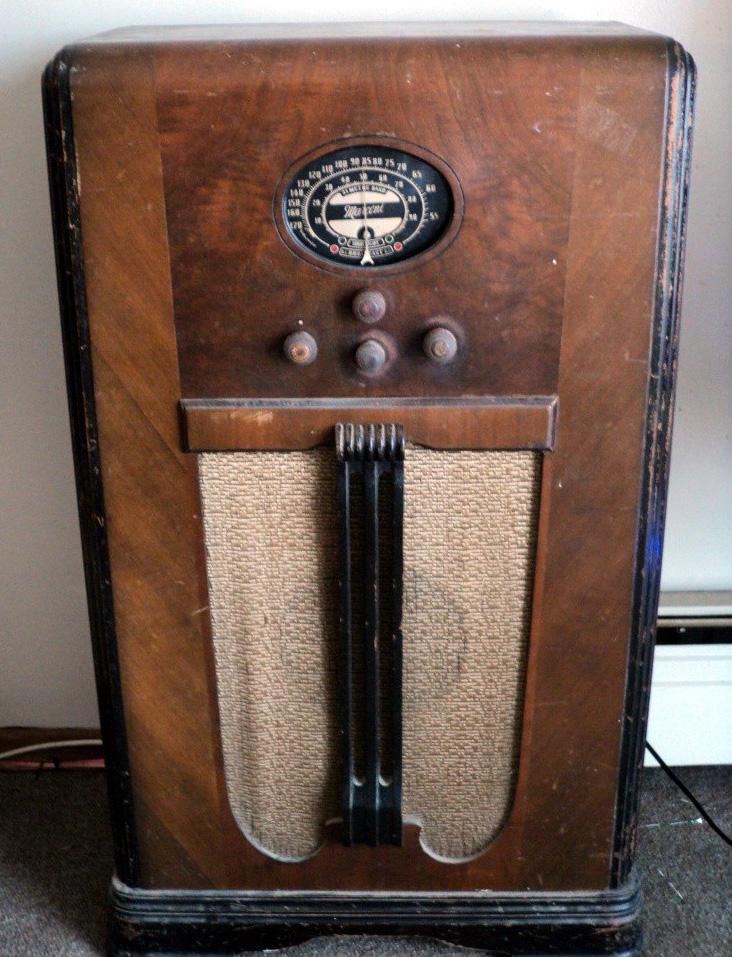

Model 107 - front view .

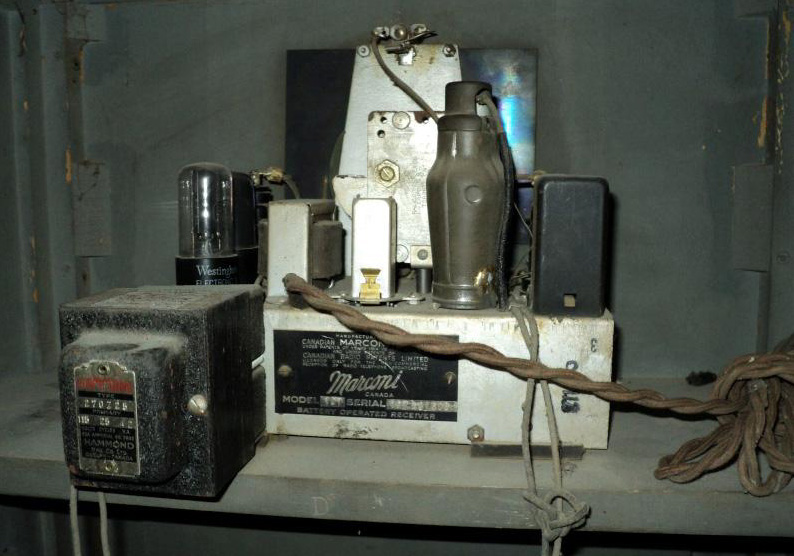

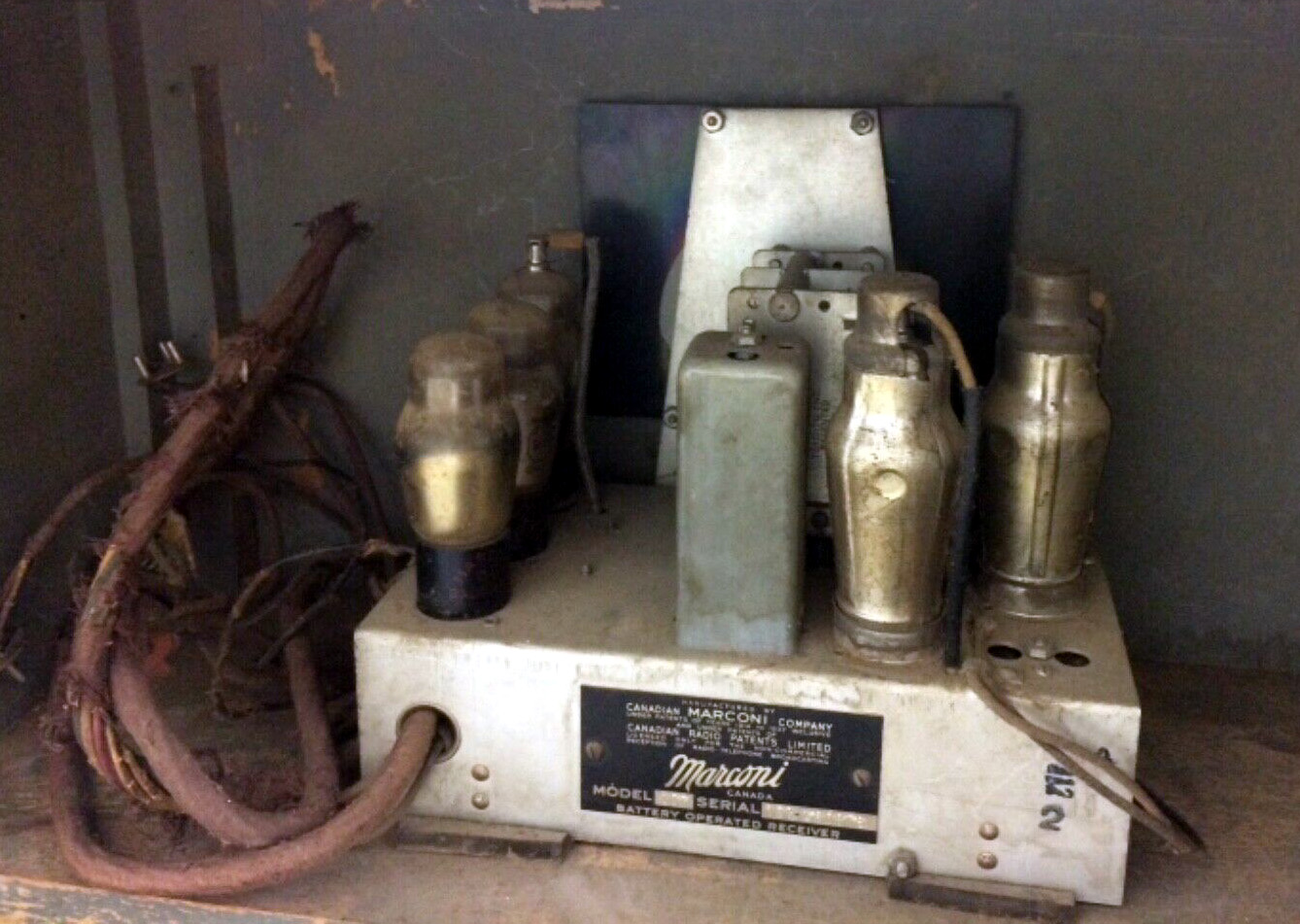

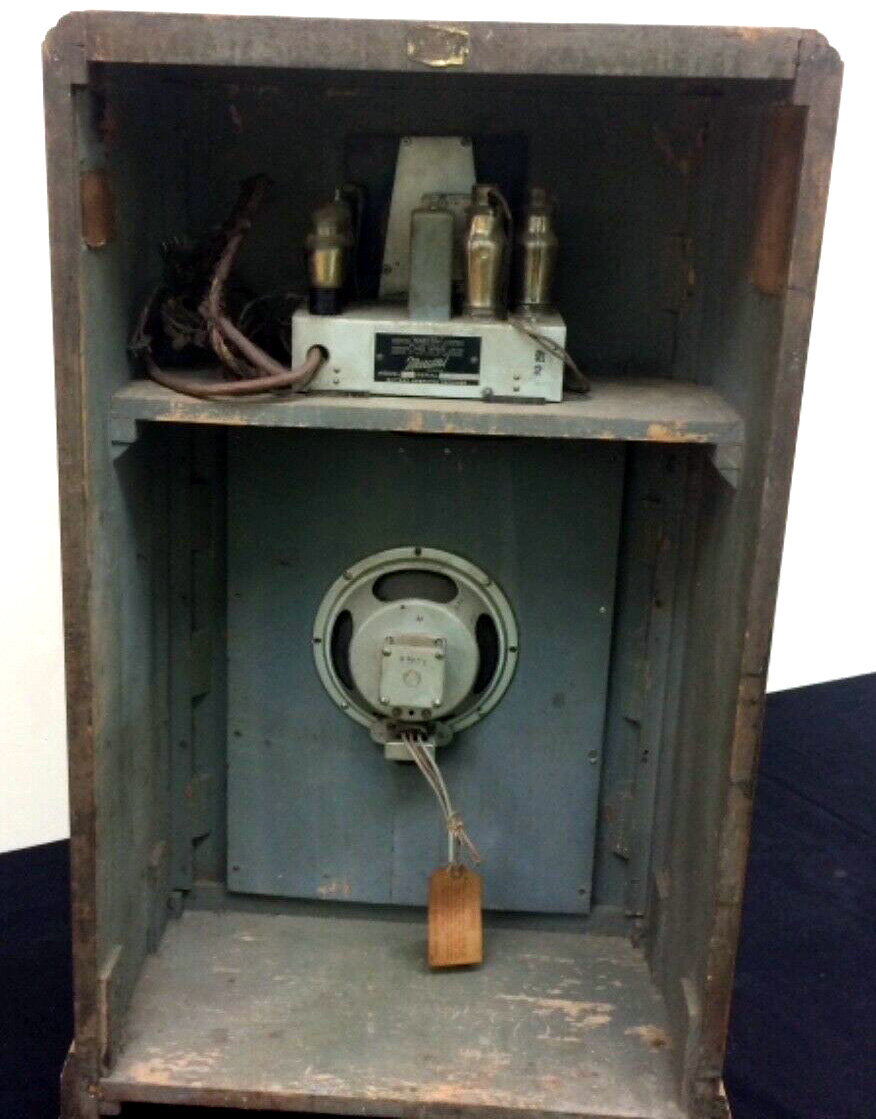

Model 107 rear view. This set has  been converted for AC operation since a manufacturer would never mount a power transformer on the back portion of the chassis.

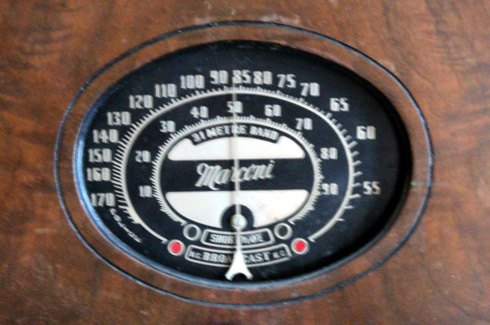

Closeup of dial.
Nameplate
Photos by Piratesrevenge, Tube Radio Forum

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) http://www.radiomuseum.org/r/canadia_ma_107.html
