CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 108 and 109

Type: 6 tube, battery operated,  superheterodyne receiver.

Frequency range:
524 to 1730 KHz
1680 to 5680 KHz
6520 to 18150  KHz

Tube lineup: 1D5, 1C7, 1F7, 1E5,1H4, 1J6
Audio power:  960 mw

Input power:
'A' battery - 2 volts @ 0.5A
'B' battery - 135 volts @24 ma
'C' battery - 4.5 volt

Speakers:

Model 108 - 8 inch dyn
Model 109 - 10 inch dyn

Model 108 - is the Mantel version
Model 109 - is the Console version

Model 108 - Front view
Model 108 - Dial detail
Model 108 - Rear view

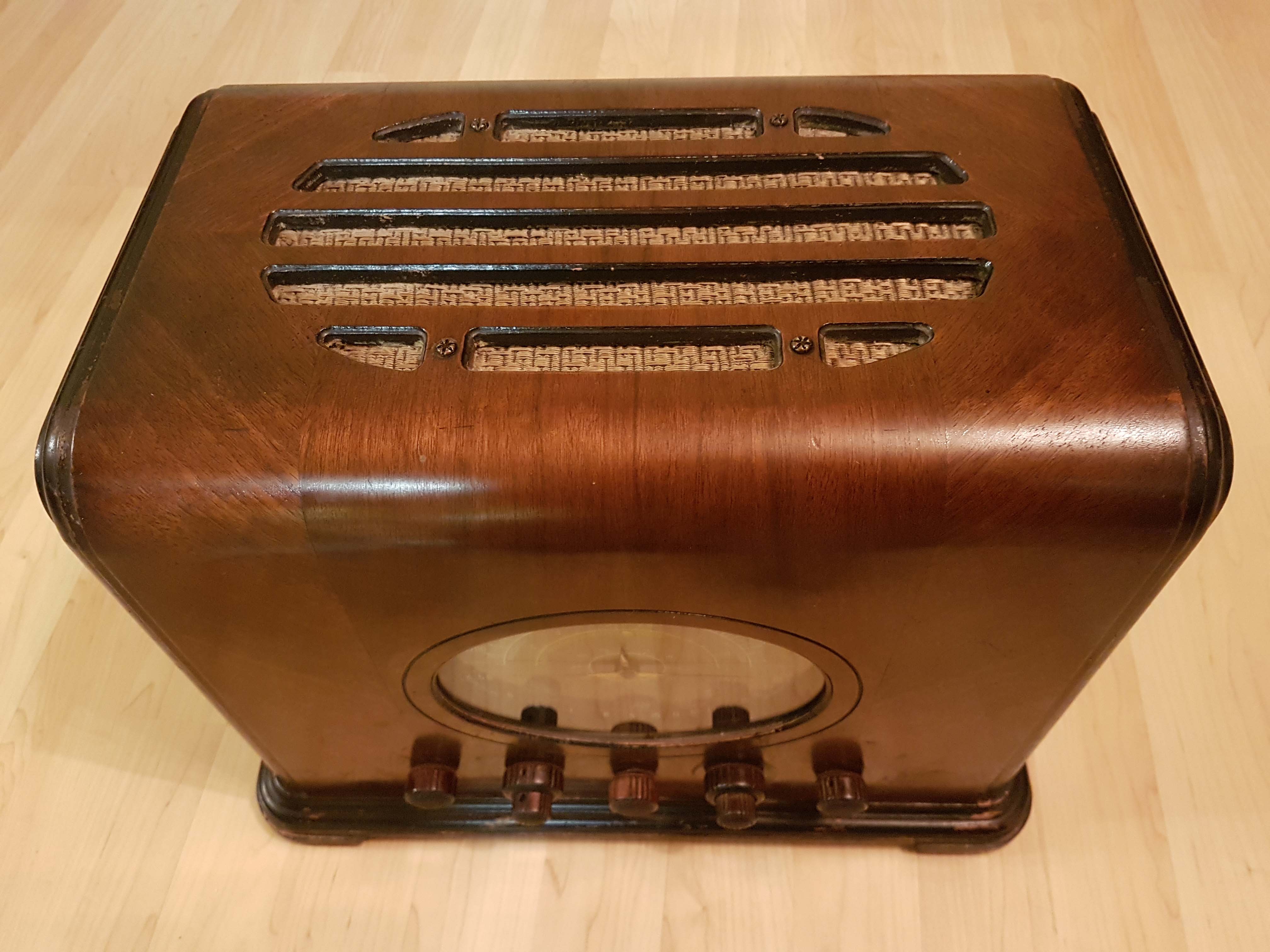

Model 108 - Top and front views. Note that speaker points upwards
Model 108 - Top and rear views.
Model 108 - Nameplate
All Model 108 photos in this table by  Eric Lehmann VE5EL

MODEL 109 PHOTOS

Model 109 front view. This particular example is awaiting restoration.
Model 109 closeup of dial

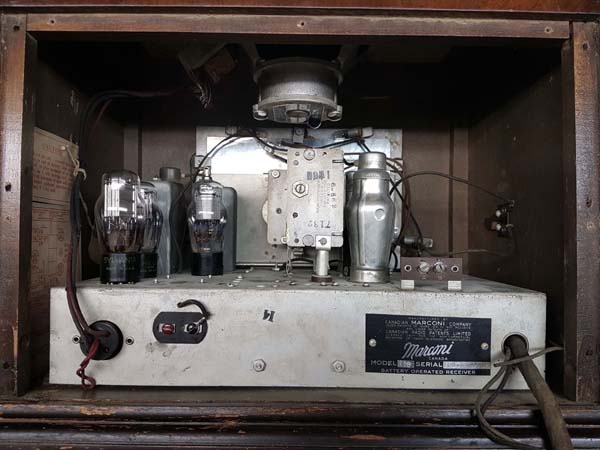

Model 109 rear view
Model 109 nameplate.
Model 109 photos in this table by Gabriel Black




Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Eric Lehmann <e.lehmann(a)sasktel.net>
3) Gabriel Black <gabriel.w.black(at)gmail.com>
