CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 115

---

Type: 7 tube, AC powered superheterodyne receiver.

Frequency range:

527 to 1652 KHz
1638 to 5235 KHz
5200 to 18045 KHz

Tube lineup: 6A8, 6K7, 6H6, 6T5, 6L6, 5Y4
Audio power:  3.5 watts
Speaker:

Model 115 - 8 in dynamic
Model 121 - 12 in dynamic

Input power:

115 VAC 60 Hz 65 watts
115 VAC 25 Hz 67 watts

Dimensions: 13 in H x 19 in W x 11 in D
Original price: $87.50

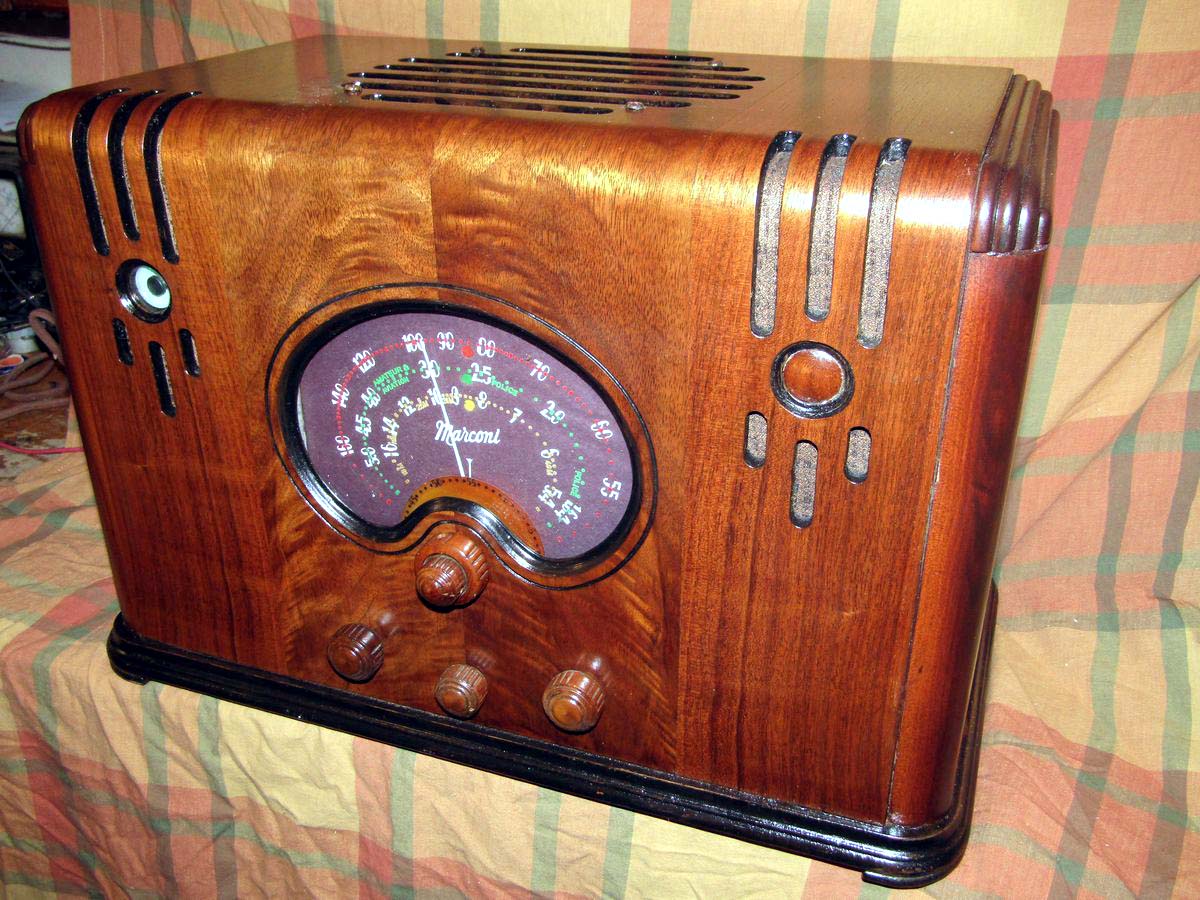

Model 115 front view

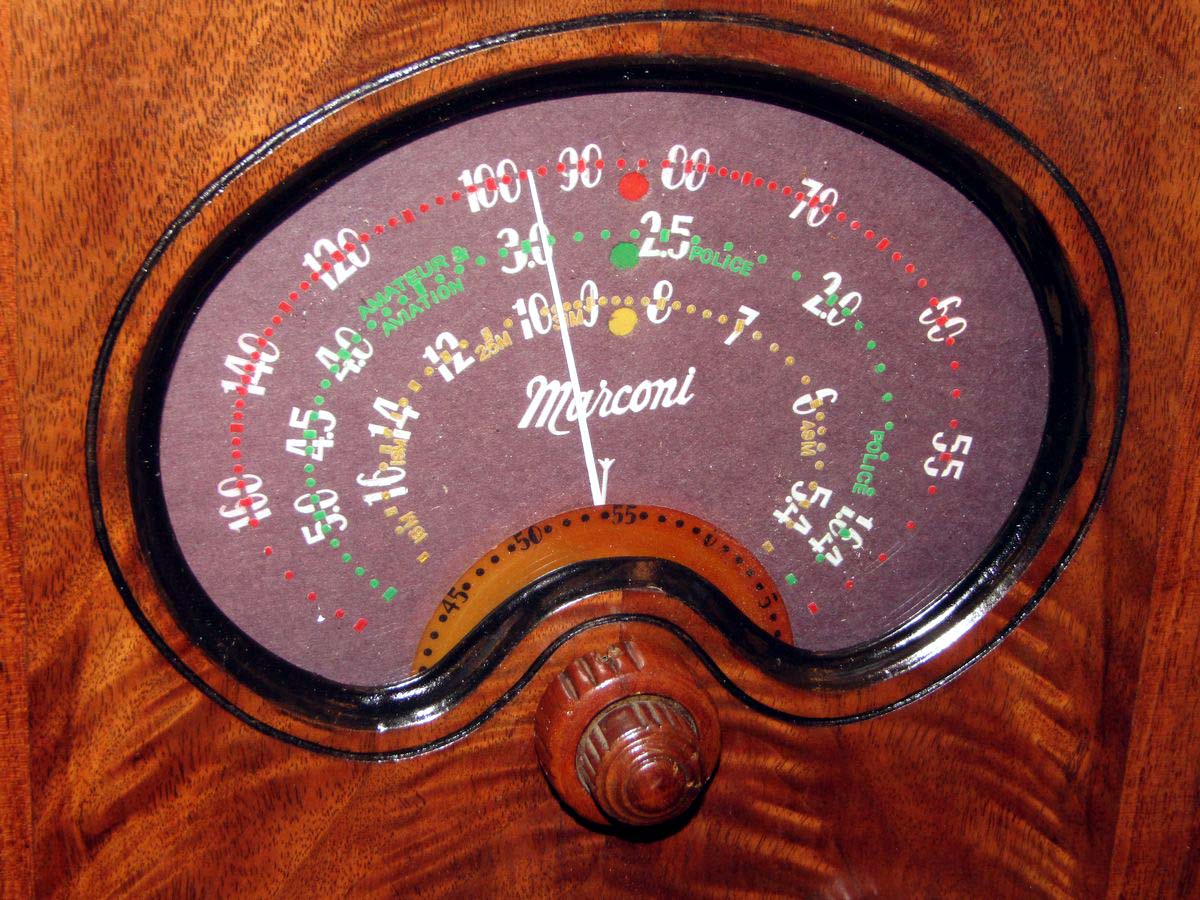

Model 115 closeup of dial

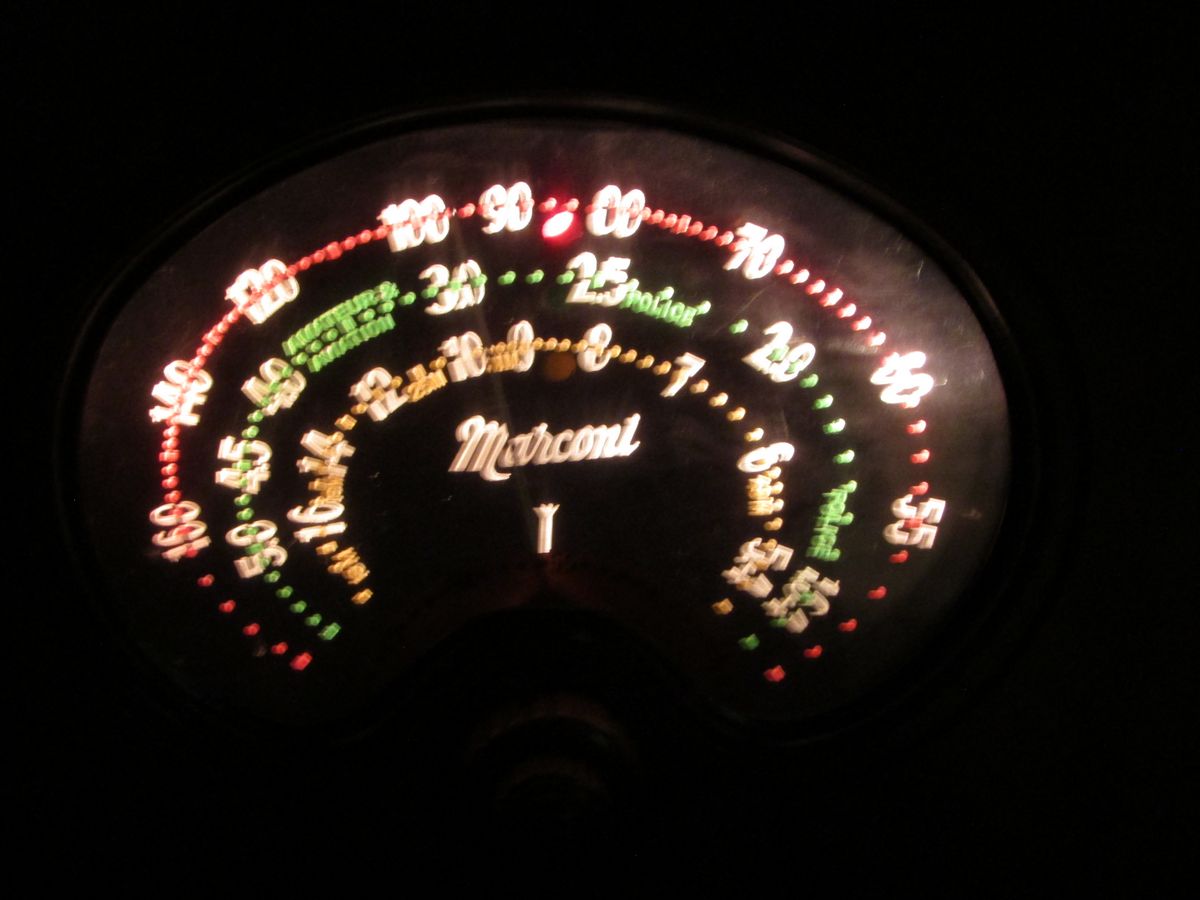

Model 115 - dial only illumination.

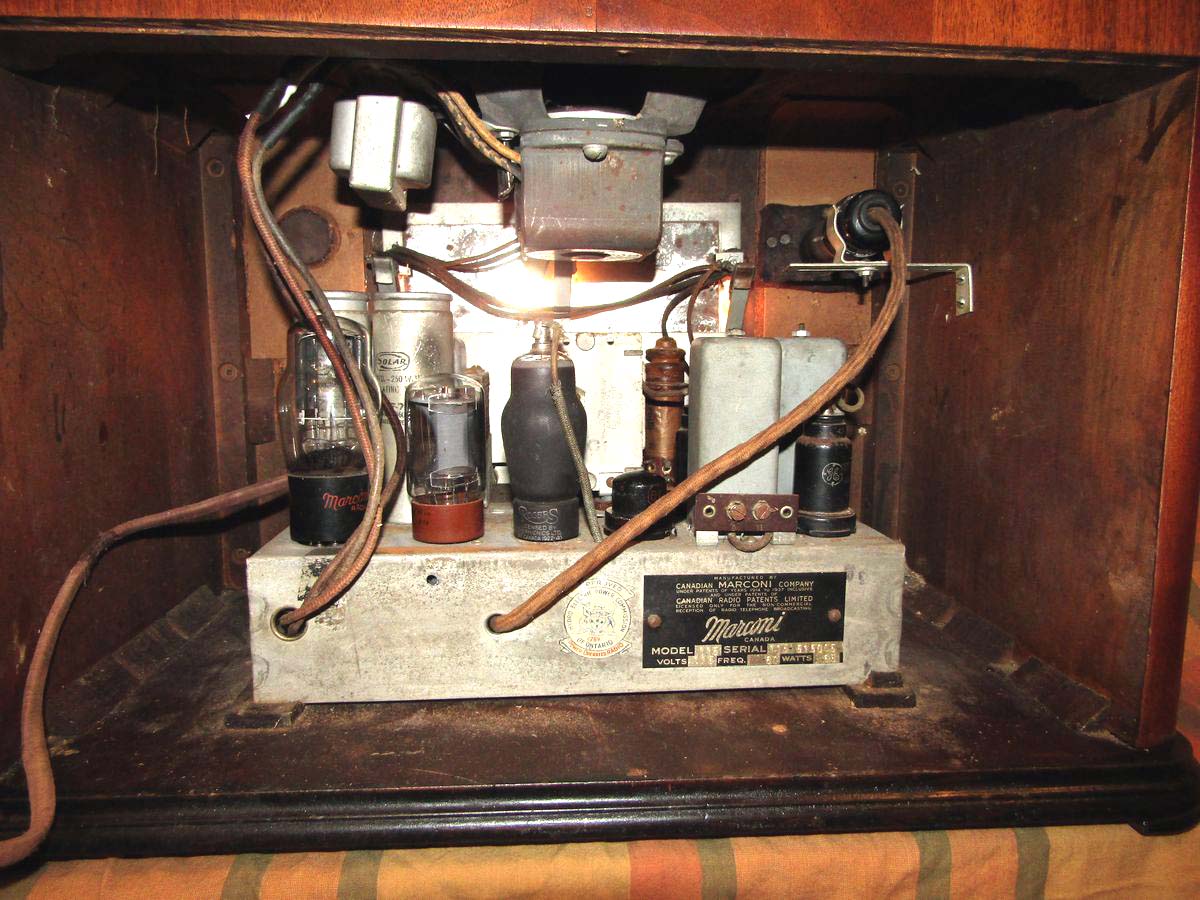

Model 115 rear view

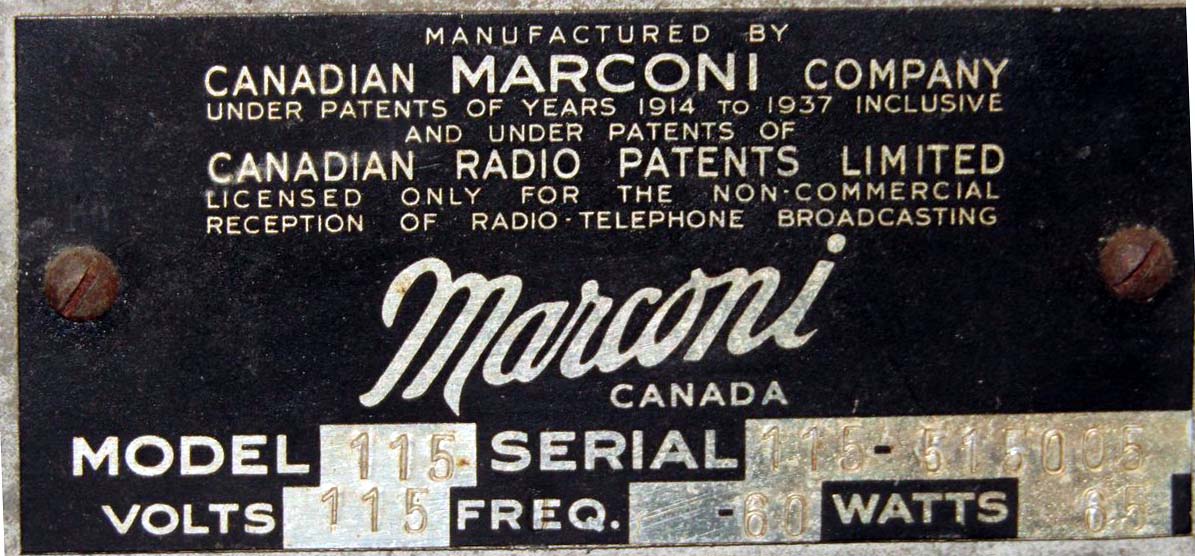

Model 115 nameplate

All Model 115 photos in this table by Kevin Christopher.

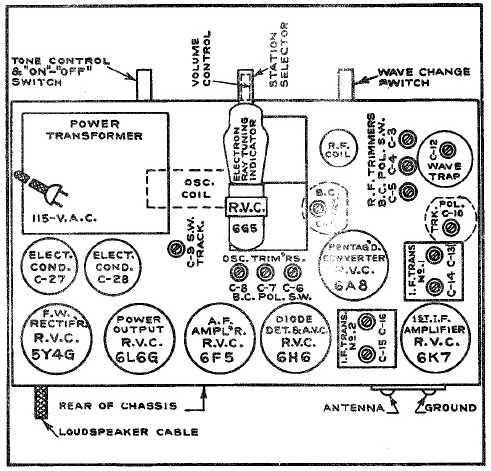

Chassis- top view

Model 115

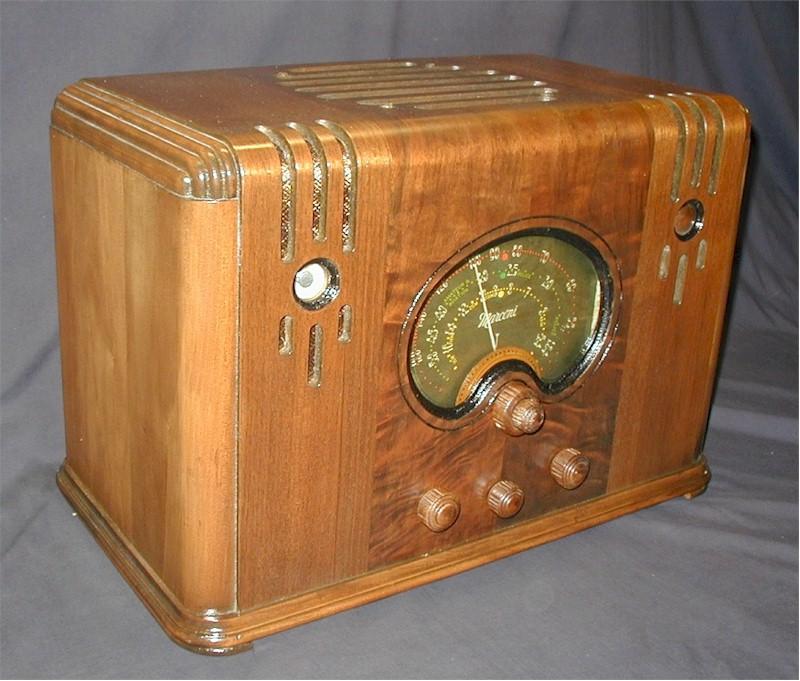

Model 115 (Image courtesy Radio Attic)


Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Kevin Christopher    kevinivc*at)gmail.com

March 1/21
