| Chassis- top view. |
 |
| Model 116 radio |
 |

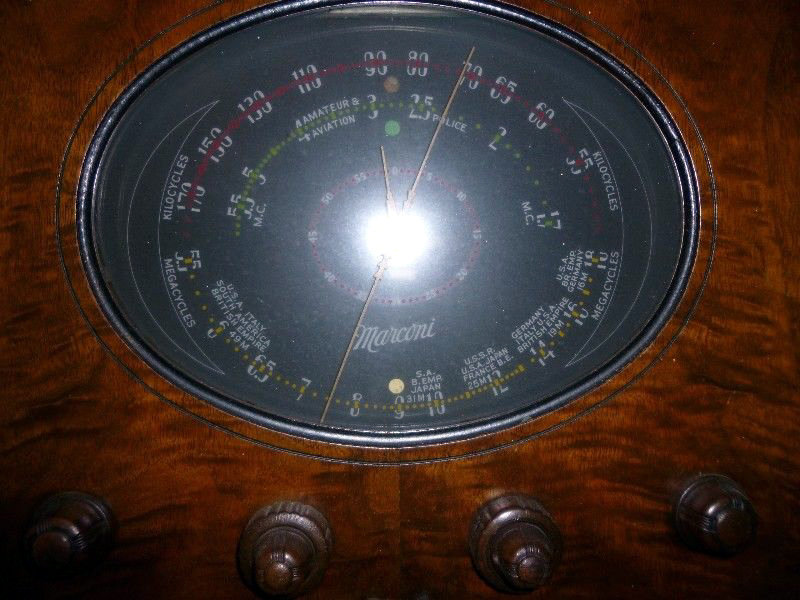

| Model 116 - Dial closeup |
 |
| Model 116 - Rear view of the radio. The mounting enclosure for the speaker is not original to the radio,. |
 |
| Model 116 - a closer view of the chassis |
| Model 116 photos via Kijiji |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 116 Type: 8 tube, AC powered superheterodyne receiver.
Frequency range:
527 to 1730 KHz
1680 to 5685 KHz
5400 to 18200 KHzTube lineup: 6K7, 6A8, 6C5, 6K7, 6Q7, 6L6, 6G5, 5Y4
Audio power: 3.5 watts
Speaker: 12 in dynamicInput power:
115 VAC 60 Hz 87 watts
115 VAC 25 Hz 94 wattsDimensions: 40.5 in H x 14.5 in W x 13 in D
Original price: $139.95
|
| Chassis- top view. |
|
| Model 116 radio |
|
| Model 116 - Dial closeup |
|
| Model 116 - Rear view of the radio. The mounting enclosure for the speaker is not original to the radio,. |
|
| Model 116 - a closer view of the chassis |
| Model 116 photos via Kijiji |
Contributors or References:1) Canadian Marconi Service Manual - Volume 1
