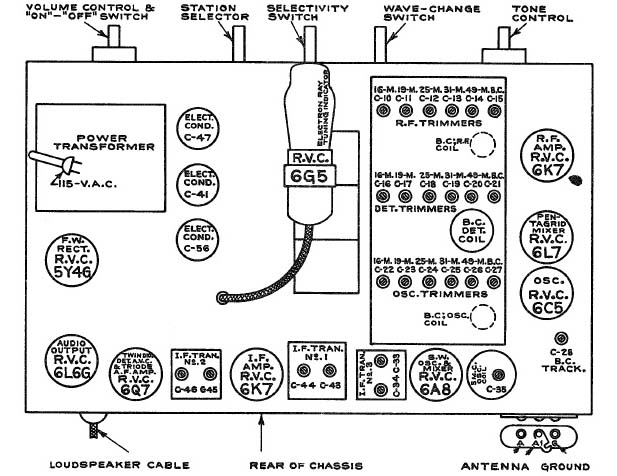

| Chassis- top view. |
| Image via Marconi service manual |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 118 Type: 9 tube, AC powered, double conversion superheterodyne receiver with a selectivity switch..
Frequency range:
525 to 1630 KHz
5930 to 6220 KHz
9380 to 9720 KHz
11650 to 11970 KHz
15040 to 15450 KHz
17620 to 18030 KHzSelectivity: Wide - 35 KHz; Narrow - 19 KHz
Tube lineup: 6G5, 6K7, 6L7, 6C5, 6A8, 6K7, 6Q7, 6L6, 5Y4
Audio power: 4.8 watts
Speaker: 12 in dynamicInput power:
115 VAC 60 Hz 93 watts
115 VAC 25 Hz 97 wattsOriginal price: $189.50
|
| Chassis- top view. |
| Image via Marconi service manual |
 |

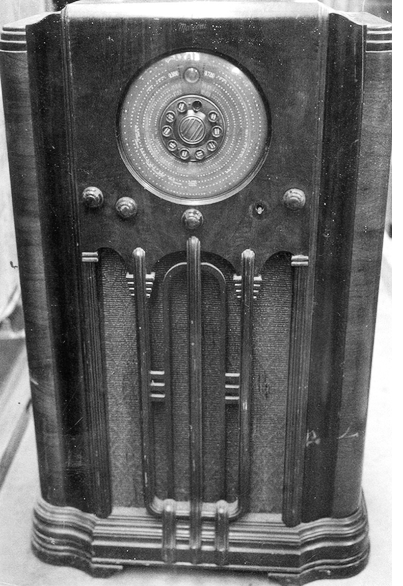

| Model 118 radio. (Courtesy Canada Science and Technology Museum, Ottawa) |
 |

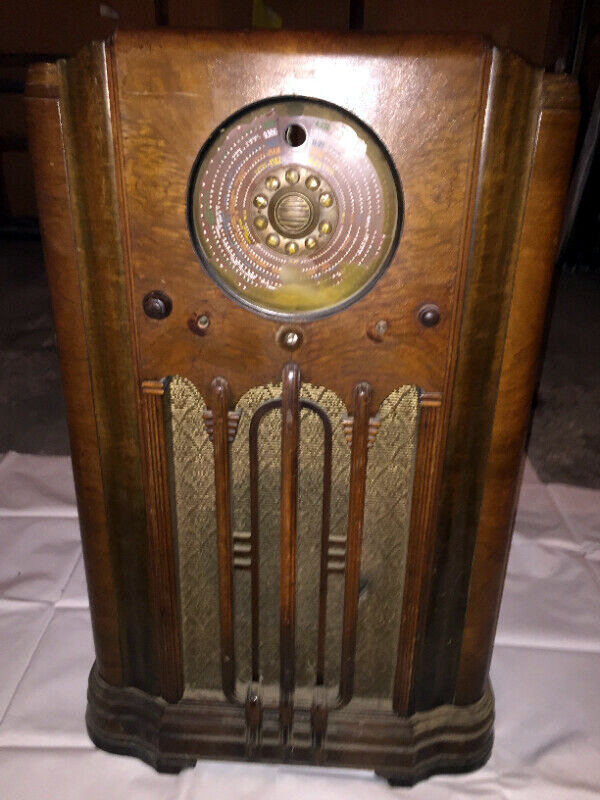

| Model 118 showing the finish. (Image via Kijiji.ca) |
 |

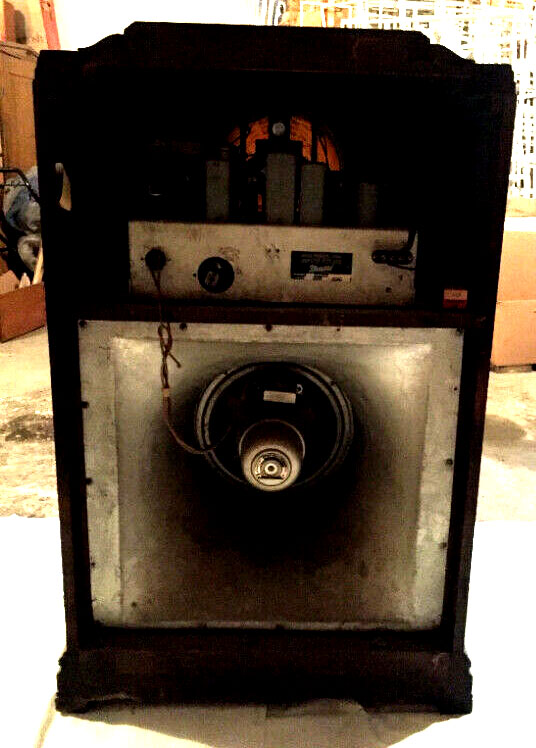

| Model 118 rear view ((mage via Kijiji.ca) |
 |
| Model 118 - closer view of the dial. Note the pushbutton station selector in the very middle. (Photo via Kijiji.ca) |
Contributors or References:1) Canadian Marconi Service Manual - Volume 1
2) https://ingeniumcanada.org/ingenium/collection-research/collection-item.php?id=1971.0243.001
Dec 28/23
