CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 122

Type: 5 tube, AC powered, superheterodyne receiver .

Frequency range:

527 to 1630 KHz
1605 to 5265 KHz
5260 to 18060 KHz

Tube lineup:  6A8, 6K7, 6Q7, 6F6, 5Y4
Audio power:  2.55 watts
Speaker: 10  inch dynamic

Input power:

115 VAC 60 Hz  56 watts
115 VAC 25 Hz  62 watts

Dimensions: 26 in H x 14 in W x 28 in D. The cabinet has a storage space on top.

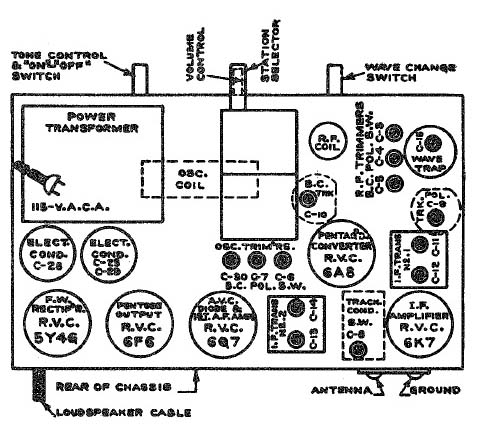

Chassis- top view.
home_ent/122_02.jpg
The model 122 was  known as "The Lazy Boy"

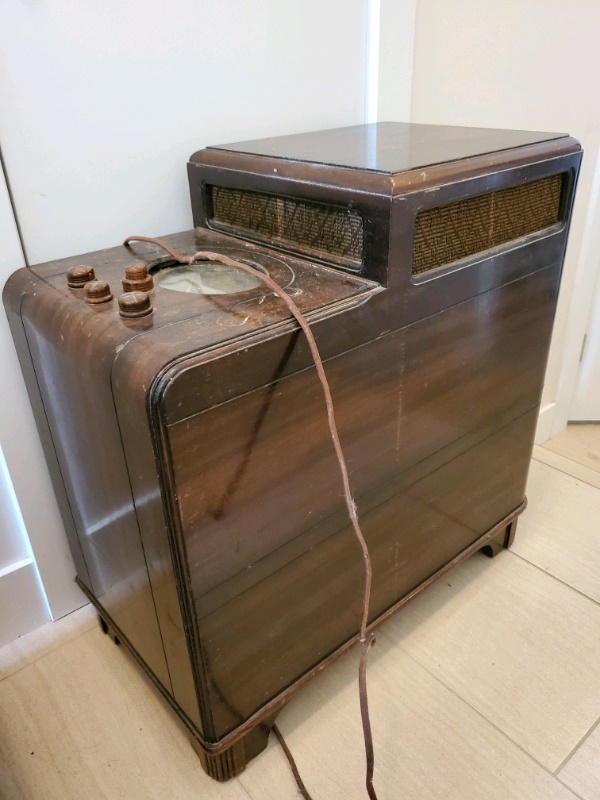

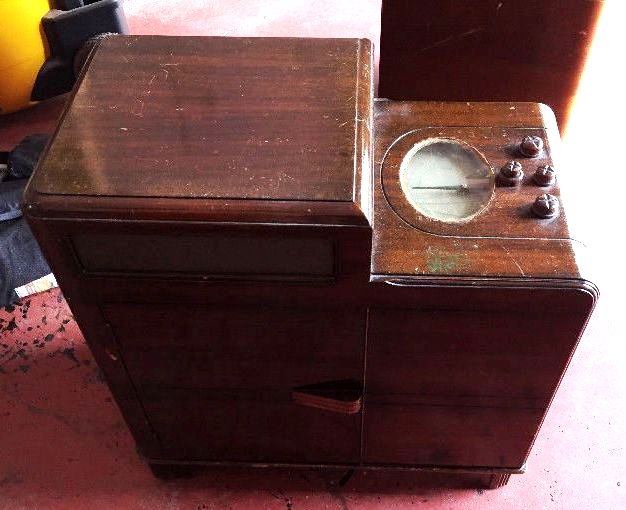

Model 122 overall front view

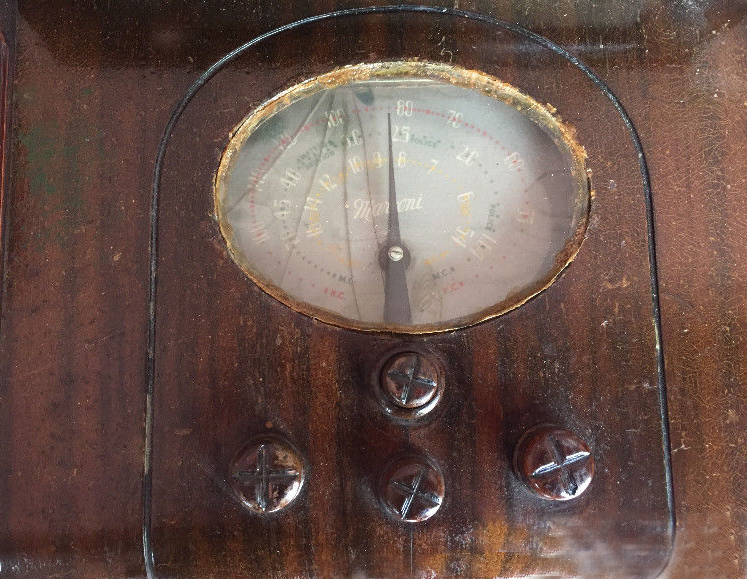

Model 122 front panel

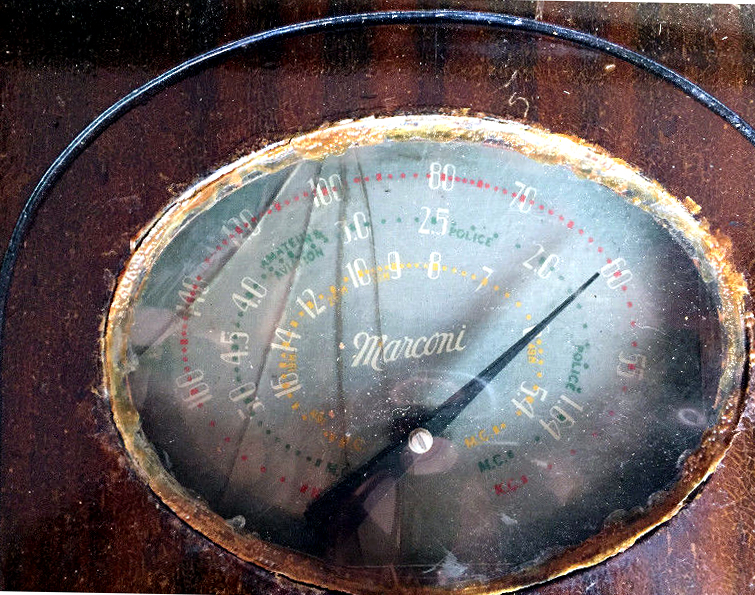

Model 122 - close-up of dial
All model 122 images in this table via Kijji.

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
