CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 123

---

Type: 7 tube, AC powered, superheterodyne receiver with built-in gramaphone .

Frequency range:

527 to 1652 KHz
1638 to 5235 KHz
5200 to 18045 KHz

Tube lineup:  6A8, 6K7, 6H6, 6F4, 6L6, 5Y4, 6G5
Audio power:  3.5 watts
Speaker: 12  inch dynamic
Pickup cartridge: Crystal type. Response 60 to 7000 Hz

Input power:

115 VAC 60 Hz  65 watts
115 VAC 25 Hz  67 watts
Dimensions: 35 in H x 29 in W x 16 in D
Original selling price: $179

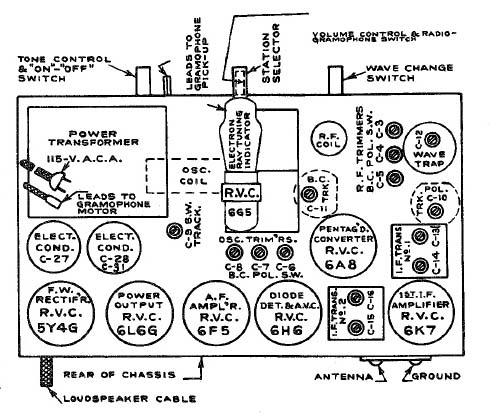

Chassis- top view.

Model 123 radio

Looking for an actual photo of the Model 123 radio. Contact:jerry.proc@sympatico.ca


Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
