CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 129  RADIO

---

Type : 5 tube , DC operated superheterodyne receiver with 6 button station selector.
Frequency range:

540 to 1725 KHz
5500 TO 13000 KhZ
13000 TO 22000 KHz
This difference between the model 128A and the 128 is a minor one relating to the coverage of the band segments.

Tube lineup: 1C7G, 1D5G, 1F7, 1H4, 1J6

Audio power: 350 mw
Speaker: 8 inch permanent magnet.
Input power:

'A' battery - 1.5 volt .0.3 amp
'B' battery - Two 45 volts cells hooked up in series.
'C' battery - 4.5 volts
Two #6 dry cells for the the pilot lights.

Comment:

Model 129/129A uses a 10 inch speaker

Top view of 128/129 chassis.

Model 129 front view. Unfortunately this example is missing the grille cloth.

Model 129 closeup of dial.

Model 129  rear view

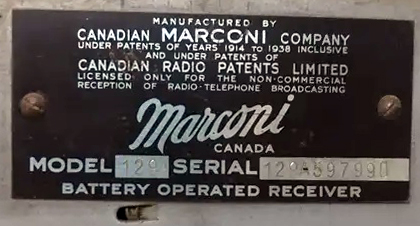

Model 129 nameplate

All Model 129 photos in this table by Patrick Dufresne

Model 129.  This inane shows the grille cloth. (From Radio Trade Builder. Provided by Lewis Bodkin)



Contributors or References:

1) Canadian Marconi Service Manual Vol 1
2) Patrick Dufresne [mailto:civic.78@hotmail.com]




Nov 21/22
