CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 132 and 133  RADIOS

---

Type : 5 tube , AC operated superheterodyne receiver with a four push button station selector  Model 133 is the console version of this radio,

Frequency range:

538 to 1720 KHz
5720 to 19500 KHz
Tube lineup: 6A8. 6K7, 6Q7, 6F6, 5Y4
Audio power: 1,7 watts
Speaker sizes:

Model 132 - 5 inch permanent magnet.
Model 133 - 8 inch permanent magnet.

Input power:

115 VAC 60 HZ  53 watts
115 VAC 25 Hz  54 watts

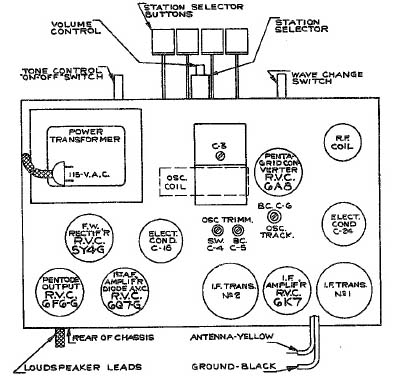

Top view of chassis.

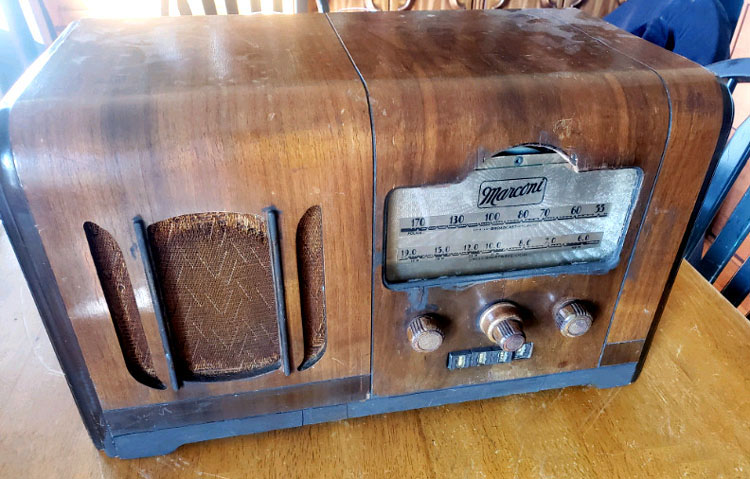

Model 132 front view

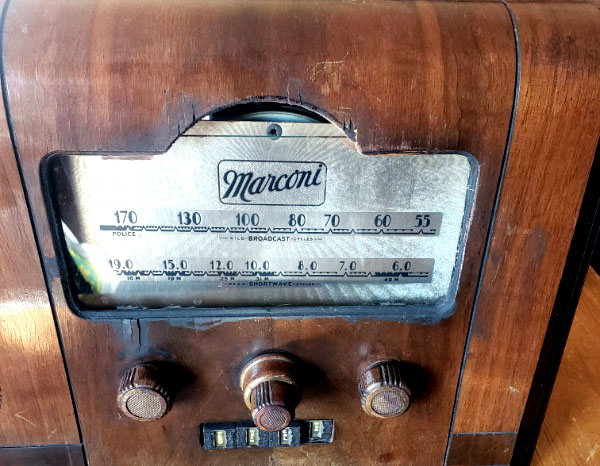

Model 132 - closer view of dial

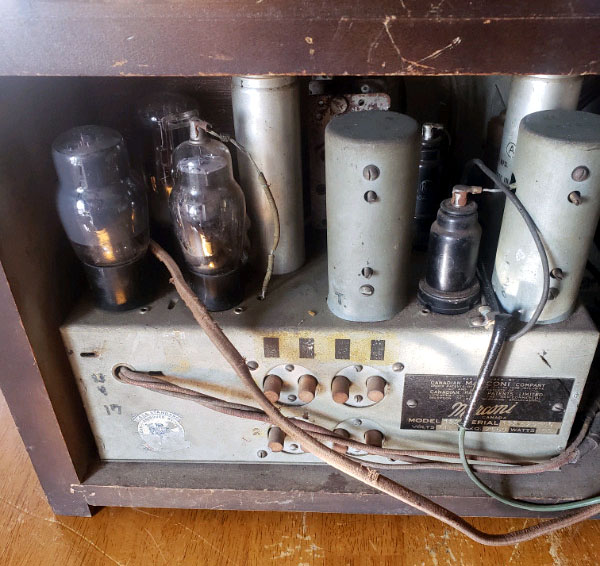

Model 132 - rear view

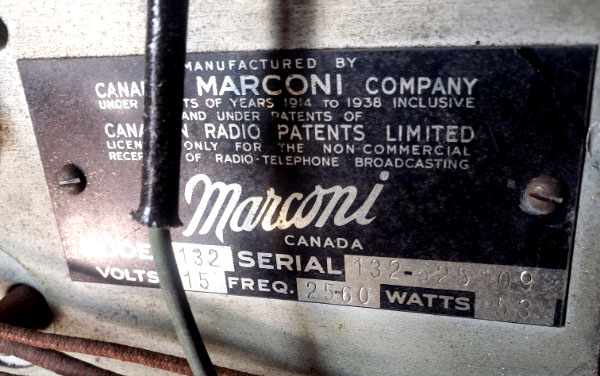

Model 132 nameplate

All photos in this table via Kijiji

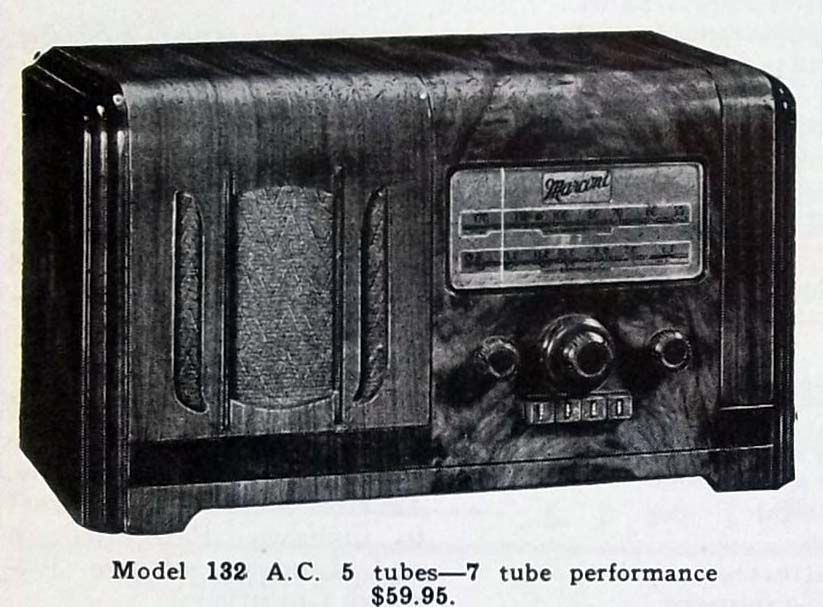

This is how the Model 132 was depicted in an ad in Radio Trade Builder Magazine. Note that the dial is framed by a rectangular opening in the cabinet face. In the colour photo above, the rectangular opening has an arch cut out at the top.  Perhaps this model 132 chassis was adapted to fit the cabinet of some other Marconi radio. Perhaps not.   (Image provided by Lewis Bodkin)

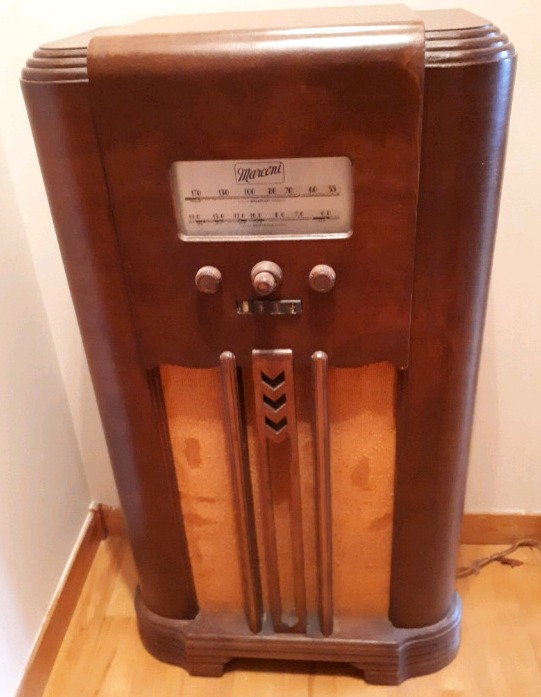

Model 133 console. (Image via Kijiji.ca)


Contributors or References:

1) Canadian Marconi Service Manual Vol. 1
2) .Lewis Bodkin [05bodkin555@gmail.com]

Feb 6/20
