CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 136AC and 137AC RADIOS
Type : 7 tube , AC operated superheterodyne receiver with 6 push button station selector and magic eye tube .
Frequency range:
530 to 1725 KHz
5500 to 13500 KHz
13400 KHz to 22400 KHz
Vintage: 1938Tube lineup: 6A8. 6K7, 6H7, 6F5, 6F6, 5Y4, 6G5
Audio power: 2.5 watts
Speaker:Model 136 - 8 inch permanent magnet.
Model 137 - 12 inch permanent magnet.Input power:
115 VAC 60 HZ 58 watts
115 VAC 25 Hz 61 watts
|

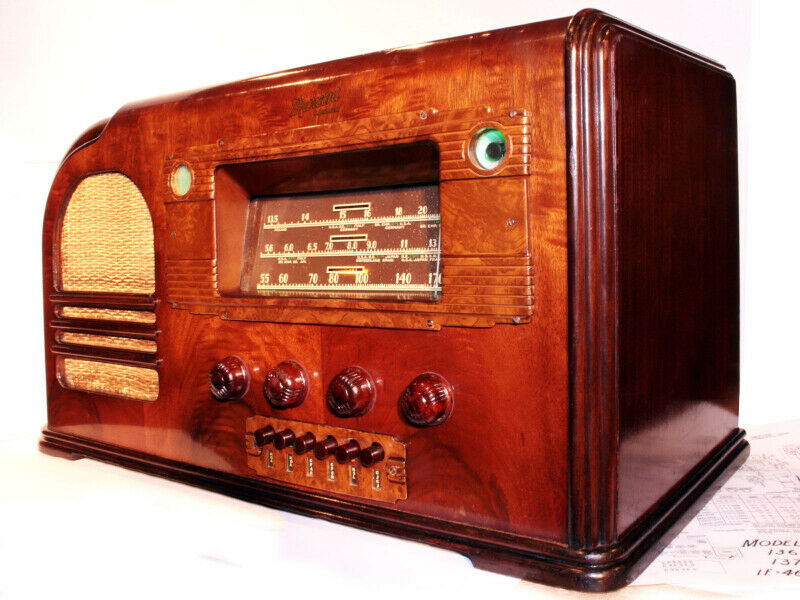

| Model 136 front view |
|

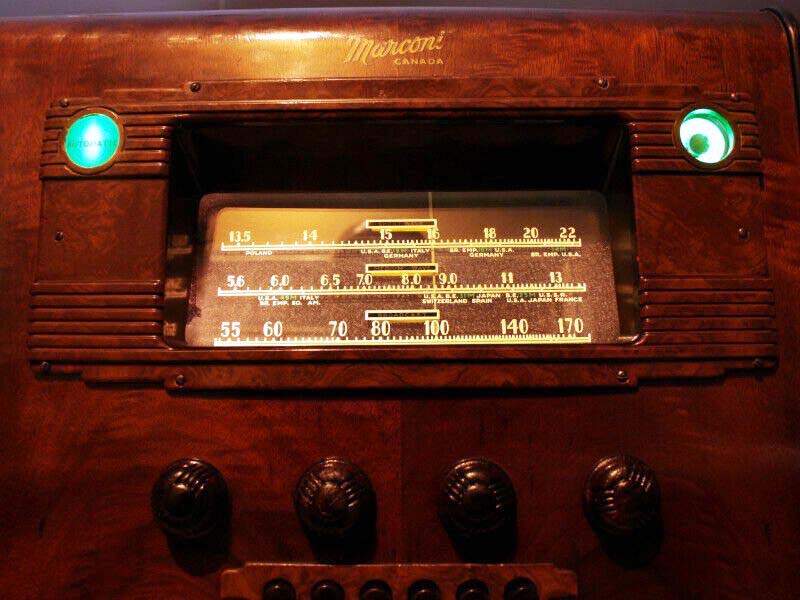

| Model 136 - closeup of dial. |
|
| Model 136 rear view. |
|

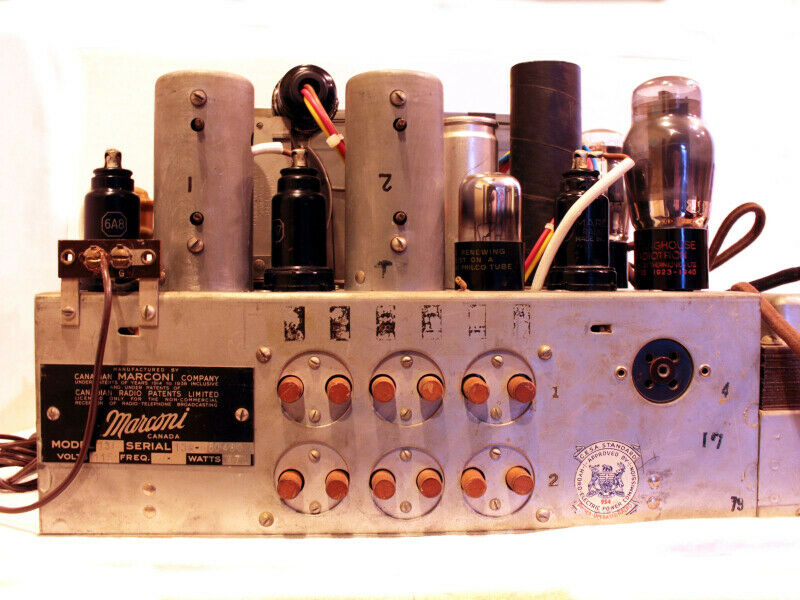

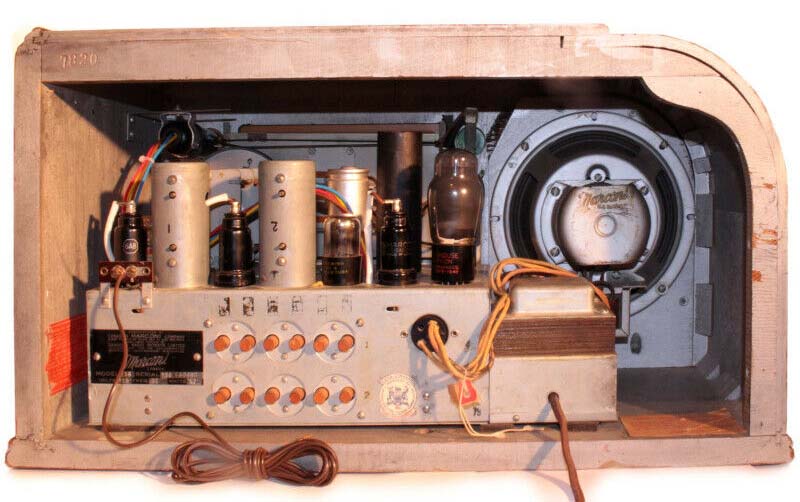

| Model 136 with chassis withdrawn from cabinet. The tan cooloured shafts are for the pushbutton trimmers. |
| All Model 136 photos in this table via Kijiji.ca |
 |

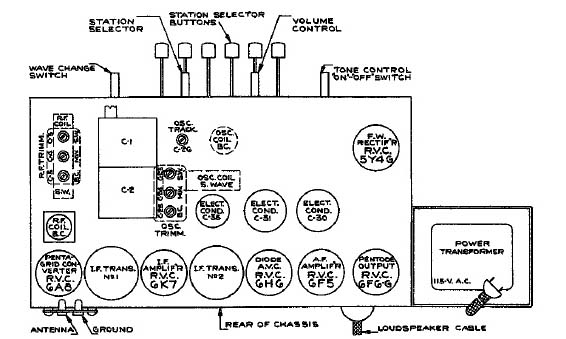

| Top view of chassis. |
 |

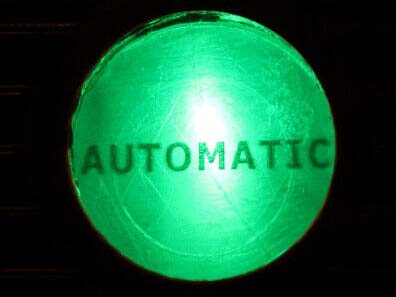

When the Bandswitch is placed in the AUTOMATIC position, it permits the pushbutton trimmer capacitors to be calibrated to the listener's favourite stations. (Kjiji.ca image) |
 |
| Model 136 AC as it appeared in this ad from Radio Trade-Builder magazine - December 1938. Download image to enlarge. (Provided by Lewis Bodkin) |
 |

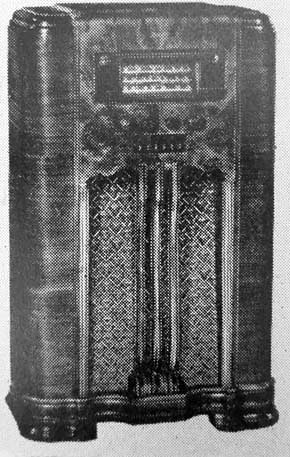

| Model 137 AC..(Provided by Lewis Bodkin) |
Contributors or References:1) Canadian Marconi Service Manual Vol 1.
2) Lewis Bodkin [05bodkin555(at)gmail.com]
Mar 16/20
