CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 138 RADIO

Type: 9 tube, superheterodyne receibver with eight pushbuttons for preset tuning.
Frequency range:


540 to 1730 KHz
5930 to 6220 KHz
9380 to 9720 KHz
11650 to 11970 KHz
15040 to 15450 KHz
17520 to 18040 KHz

Tube lineup:  2 x 6K7; 6L7, 6J5, 6H6, 6F5, 6L6, 5Y4G, and 6U5 magic eye tube
Audio power: 4 watts
Speaker: 12 inch "Peri-Dynamic" (permanent magnet) speaker.
Input power: AC 115 VAC 60 Hz , 95 watts
                                           50Hz, 96 watts

Dimensions: 41.5 in high; 25.5 in wide; 15.75 in deep. Glass dial is 9.5  by 4.625 in.

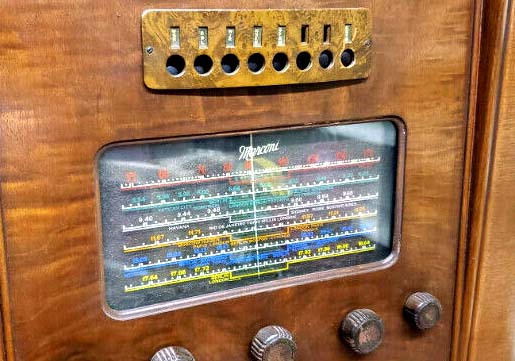

Front view .
Photo via E-bay

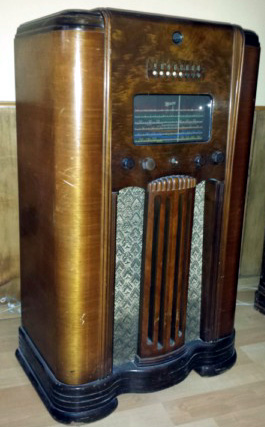

Model 138  front view

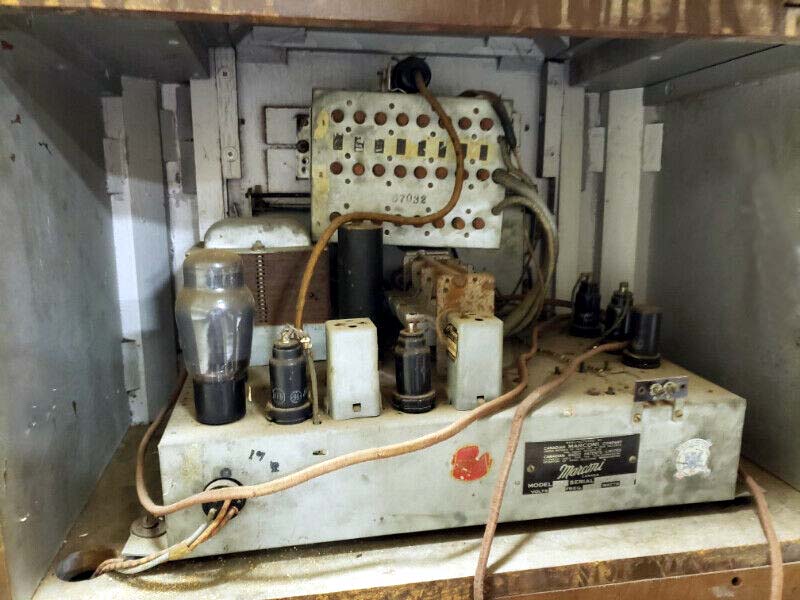

Model 138 rear view, The pushbuttom mechanism for station selection is not mounted in its normal position.

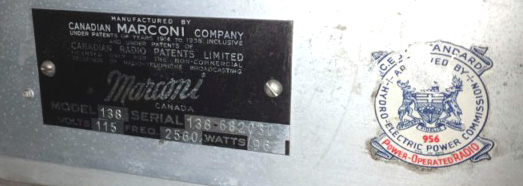

Nameplate
All photos in this table via Kijji
