CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 139              AC RADIO

Type: 10 tube, superheterodyne receiver with eight pushbuttons for preset tuning.
Frequency range:

 538 to 1680 KHz
1655 to 5465 KHz
5450 tot 13500 KHz
13500 to 21800 KHz

Tube lineup:  6K7; 6L7, 6J5, 6K7, 6H6, 6J7, 6F5, 6L6, 5Y4G, and 6G5
Audio power: 4.3  watts
Speaker: 12 inch permanent magnet
Input power: AC 115 VAC 60 Hz , 95 watts
                                          50 Hz, 96 watts

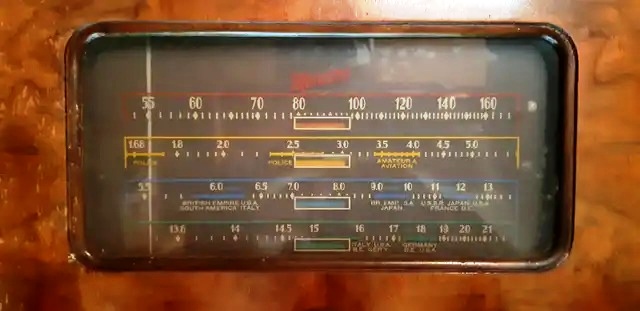

Dimensions: 41.5 in high; 25.5 in wide; 15.75 in deep. Glass dial is 9.5  by 4.625 in.



Model 139 (Courtesy Radiomuseum.org)

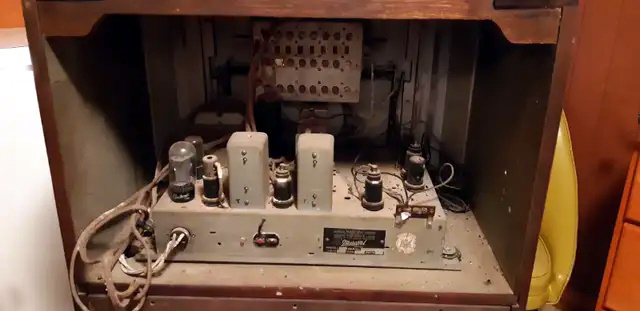

Model 139 chassis view.



Model 139 AC as it appeared in this ad from Radio Trade-Builder magazine -  December 1938. Download image to enlarge.  (Provided by Lewis Bodkin)

Contributors or References:

1) Canadian Marconi Service Manual Vol 1.
2) https://www.radiomuseum.org/r/canadia_ma_139.html
3)
