CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 140 RADIO

---

Type: 12 tube, superheterodyne receiver with eight pushbuttons for preset tuning.
Frequency range:

540 to 1730 KHz
5930 to 6220 KHz
9380 to 9720 KHz
11650 to 11970 KHz
15040 to 15450 KHz
17620 to 18030 KHz

Tube lineup:  6K7; 6L7, 6J5, 6K7, 6H6, 6J7, 6F5,  6J5, 2 x 6L6, 5X4G, and 6G5 or 6U5
Audio power: 9.5   watts
Speaker: 12 inch permanent magnet
Input power: AC 115 VAC 60 Hz, 120 watts
                                           25 Hz  122 watts

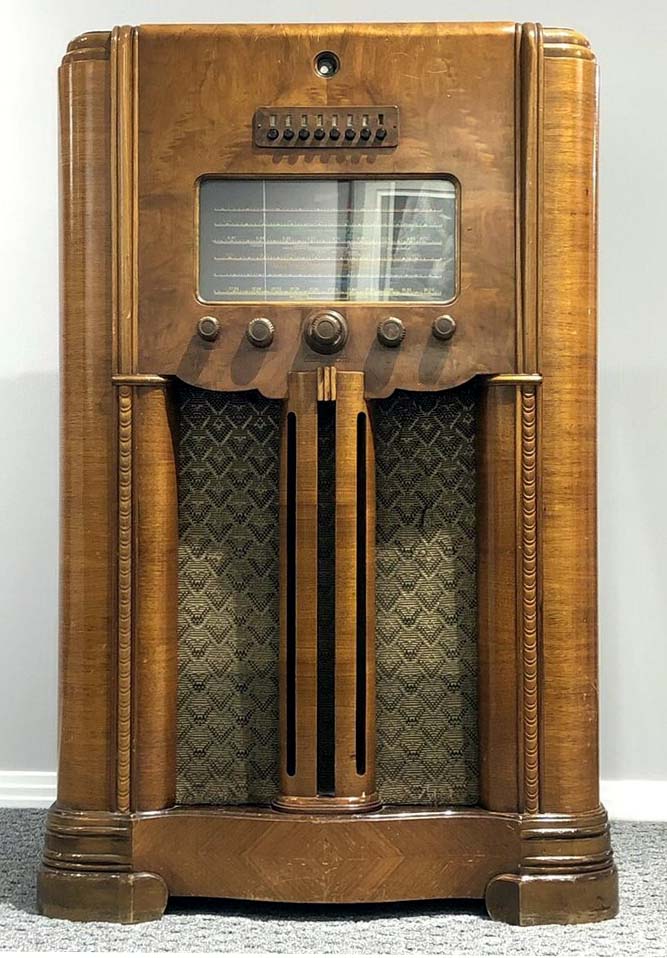

Model 140 front view

Model 140 dial. Click on image to enlarge.

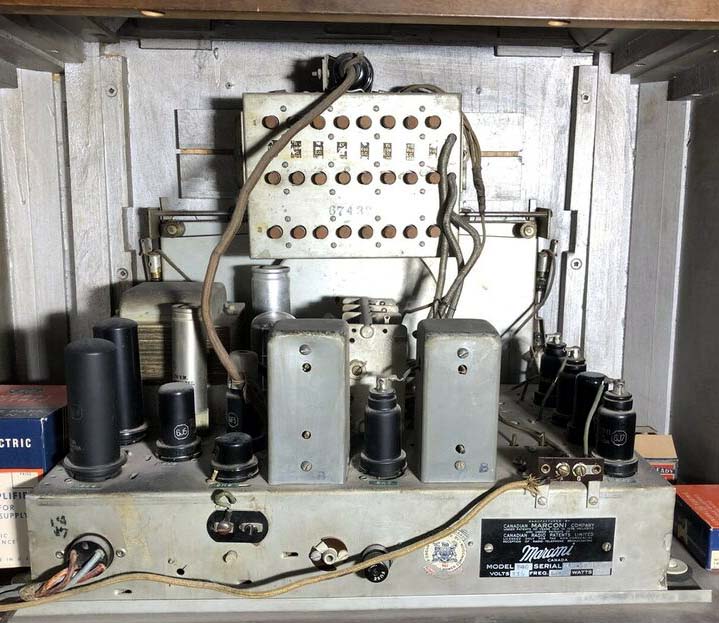

Model 140 rear view

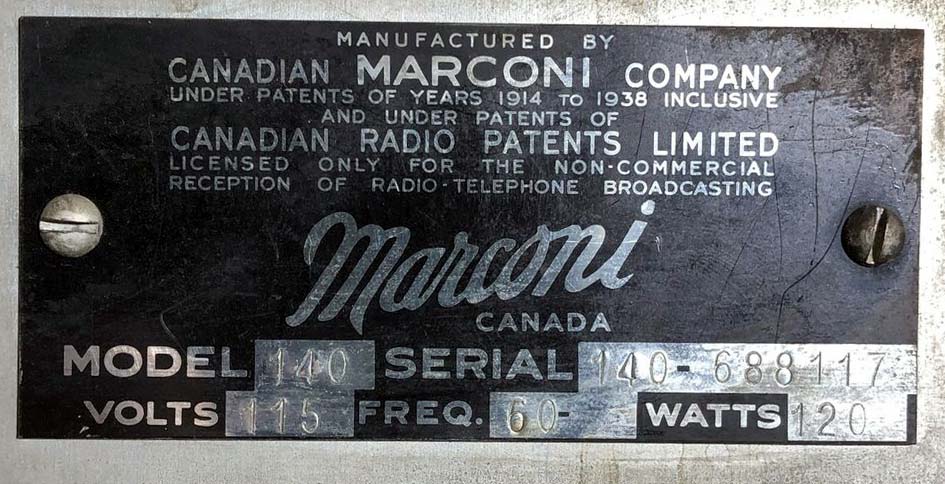

Model 140 nameplate

All Model 140 photos in this table via Kijiji.xca

Model 140.as it appeared in Radio Trade Builder, August 1938 . (Provided by Lewis Bodkin)

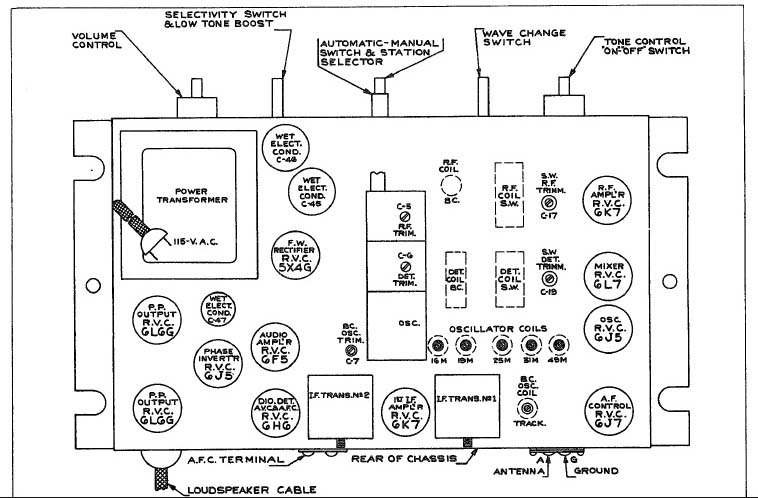

Model 140  chassis layout


Contributors or References:

1) Canadian Marconi Service Manual Vol 1.
2) Lewis Bodkin [05bodkin555(at)gmail.com]

Mar 10/21
