HOME ENTERTAINMENT -  MODEL 146 RADIO

Type: 4 tube, battery operated superhetrodyne receiver
Frequency range: 540 to 1750 KHz
Circa: 1939
Tube lineup: 1A7, 1N5, 1H5, 1C5
Audio power: 140 mw
Speaker: 6 inch dynamic
Input power: .Battery only.   1 x 1.5 volt (.25 amp) 'A' supply. Two 45 volt batteries in series (10 ma) for 'B' supply.
Model 146 image provided by Radio Museum of Quebec.

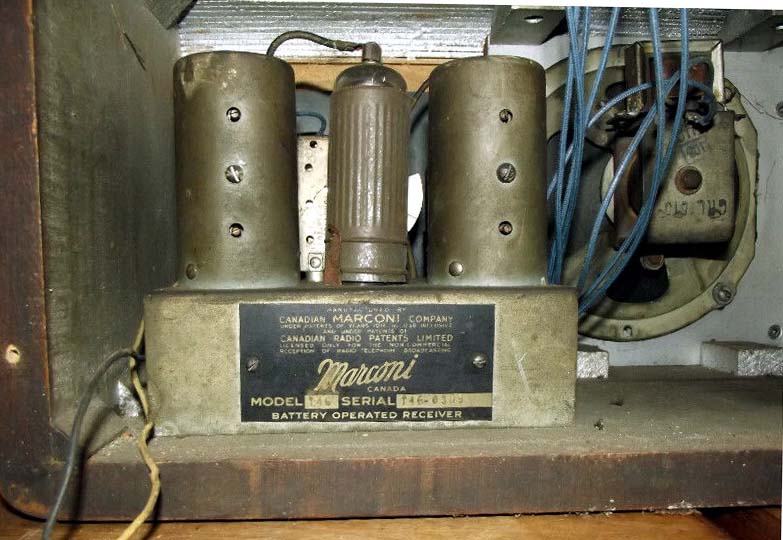

Model 146 chassis view
Contributor:

1) Canadian Marconi Service Manual - Volume 1
