CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 149 and 150 RADIOS

Type: 5 tube, battery operated superheterodyne receiver.
Frequency range:

535 to 1725 KHz
5955 to 6250 KHz
9450 to 9750 KHz
11660  to 11940 KHz
15025 to 15420 KHz

Tube lineup:  1A7, 1N5, 1H5, 2 x 1A5,
Audio power: 140 mw
Speaker: 6 inch for model 149 ; 10 inch for model 150

Input power:  Battery only.   1 x 1.5 volt (0.25 amp) 'A' supply. Two 45 volt batteries in series for 'B' supply .(11 ma)

Comment: Models 149 and 150 are identical in all respects except for the size of the speaker cone and cabinet style
Original price: $59.95. This radio appeared in the Eaton's catalog 1939 to 1940.

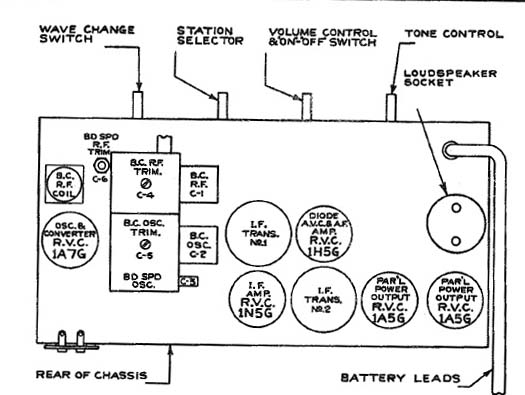

Model 149 and 150 chassis view.
Model 149 radio . Download image to enlarge. (Photo by Douglas Johnson)

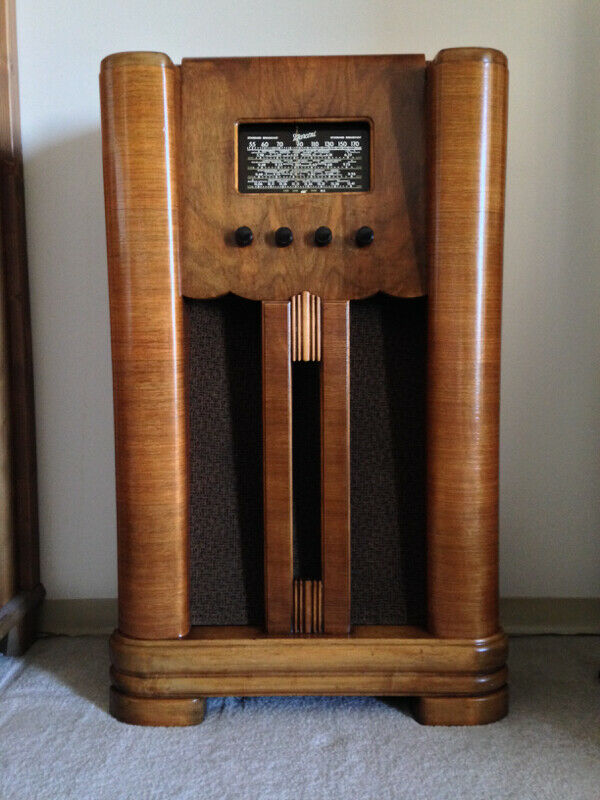

Does anyone have an actual photo of the model 150 radio? Please contact: jerry.proc@sympatico.ca

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Douglas Johnson <deja-johnson(at)hotmail.com>
