CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 153 and 154

Type: 5 tube, transformerless, AC superheterodyne table radio.
Frequency range:

Model 153   530 to 1720 KHz
Model 154   530 to 1640 KHz
Circa: ?
Tube lineup: 12A8, 12K7, 12Q7, 35L6, 35Z5
Audio power: 900 mw
Speaker: 5 inch dynamic
Input power:  115 VAC 25/60 Hz  30 watts
Dimensions: ?
Comment: Model 154 is essentially the same as model 153 except for the inclusion of a built in loop antenna and a slightly different frequency range.  Second production run includes serial numbers 5001 to 8611.

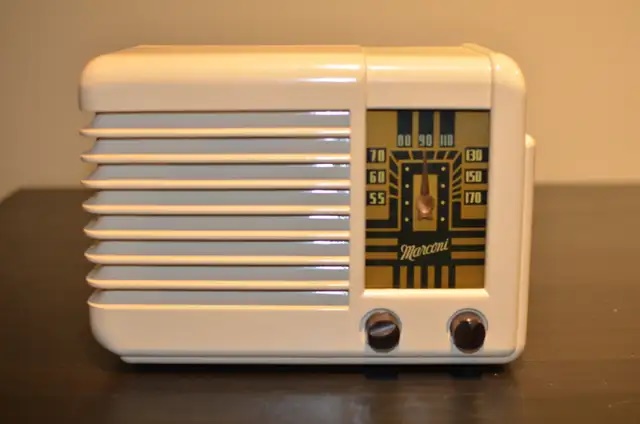

Model 153 front view Image
Model 153 rear view
Images in this table by Tom Seeger, Radiomuseum.org

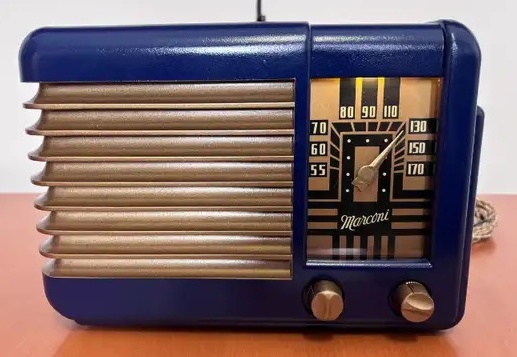

Model 154. (Image courtesy Maxsold.com)

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) https://www.radiomuseum.org/r/canadia_ma_153.html
