CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 159 and 160

Type: 8 tube, AC superheterodyne receiver with 5 pushbutton automatic tuning.
Frequency range:

BC 538 to 1722 KHz
SW1 - 2220 to 7036 KHz
SW2 - 6920 to 22370 KHz
Circa: ?
Tube lineup: 6A8, 6J5, 6K7, 6Q7, 2x 6F6, 5Y4, 6U5
Audio power: 3 watts
Speaker:

Model 159 - 8 inch dynamic
Model 160 - 12 inch dynamic

Input power: 115 VAC 60 Hz 73 watts
                     115 VAC 25 Hz 76 watts

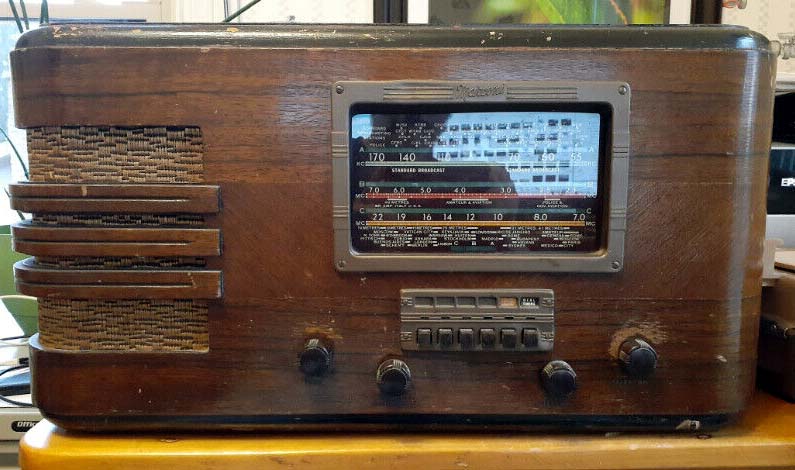

Model 159. Does anyone have an actual photo of the 159 radio? Contact: jerry.proc@sympatico.ca
Image via Marconi service manual

MODEL 160 PHOTOS

Model 160 - front view

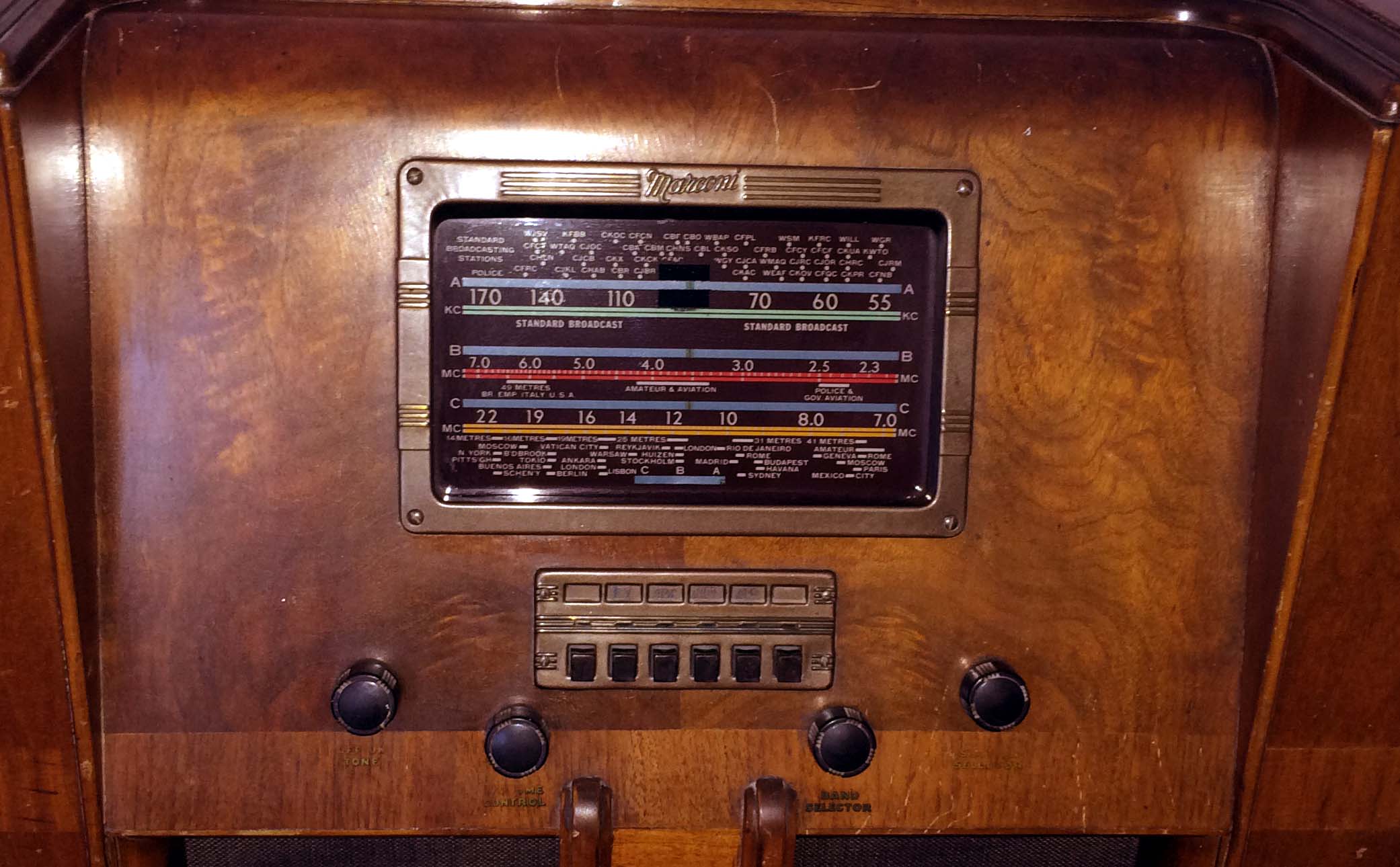

Model 160 - Closer view of dial and controls
Model 160 - Rear view of cabinet

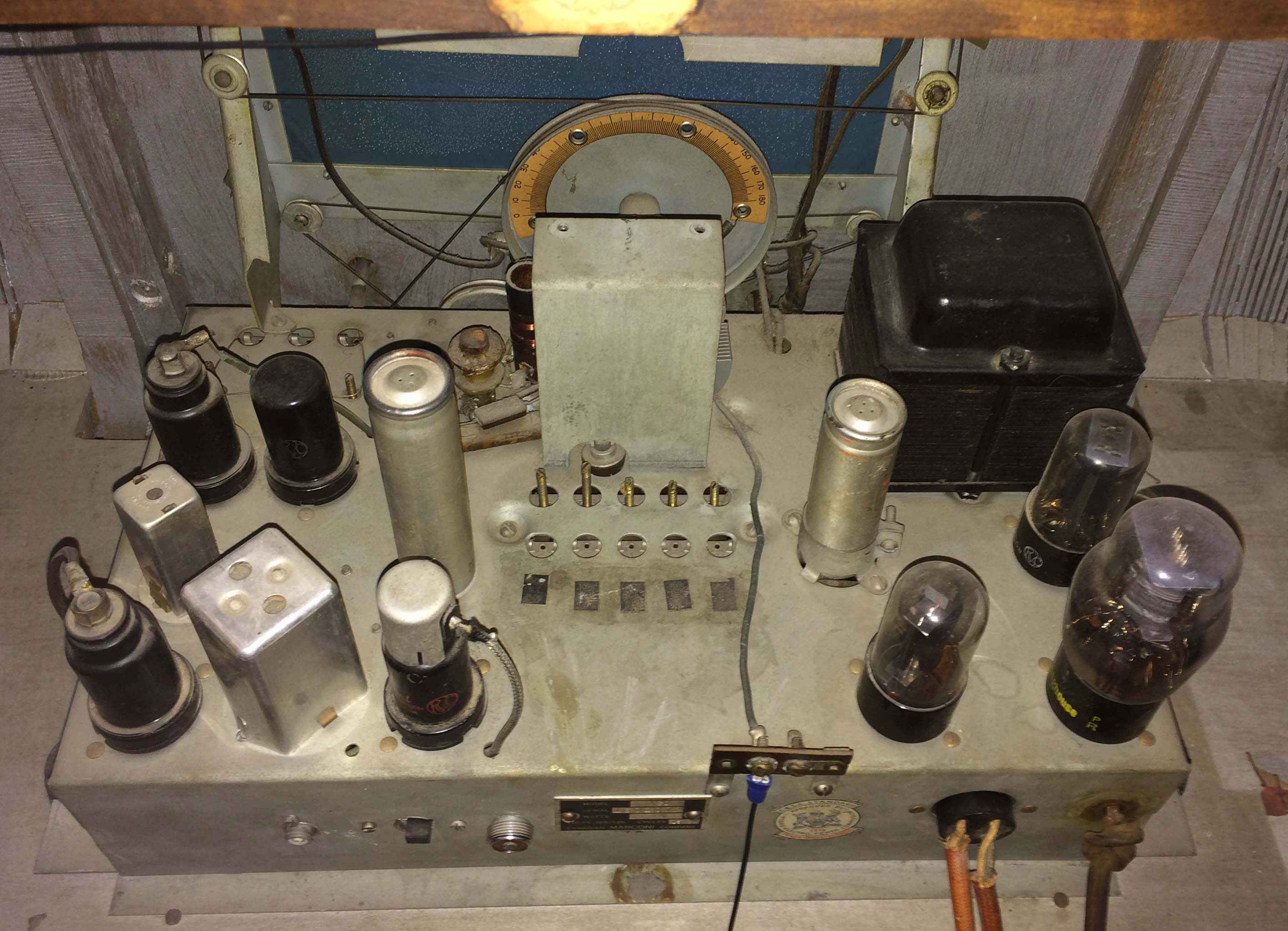

Model 160 - View of chassis

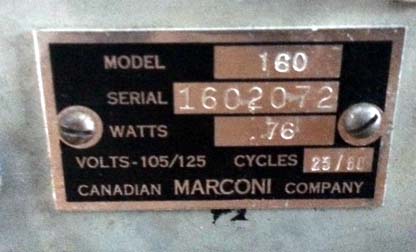

Model 160 nameplate
All photos in this table by Les Abbott, VE6OG
Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Les Abbott  VE6OG <ve6og(at)telusplanet.net>
