CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 163/164
Type: 5 tube, AC superheterodyne receiver on both tabletop and console versions.
Frequency range: 538 to 1740 KHz
Tube lineup:  6A8, 6K7, 6Q7, 6K6, 5Y4
Audio power: 0.5 watts
Speaker: 5 in dynamic
Input power: .115 VAC 60 HZ 37 watts
                       115 VAC 25 Hz 39 watts
Dimensions:  15 1/2'' x 7 1/2', x 8 3/4'
Weight: 17 lbs
Comment: The Model 163 is electrically identical to the Model 155 , however it bears a different model number of cabinet.

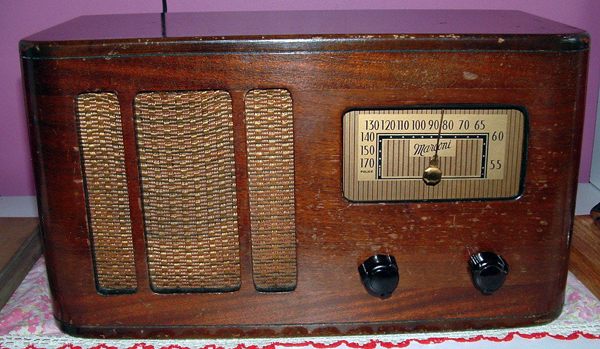

Model 163 front view
Model 163  Top view

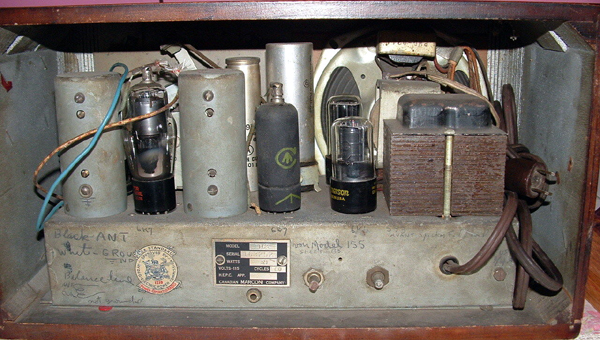

Model 163  rear view
Model 163 nameplate
All model 163 images via E-bay

MODEL 164

Model 164 is electrically identical to the model 155 , however the chassis and cabinet have been converted into a radio-phonograph combination.

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1

Back to Home Entertainment
Mar 4/15
