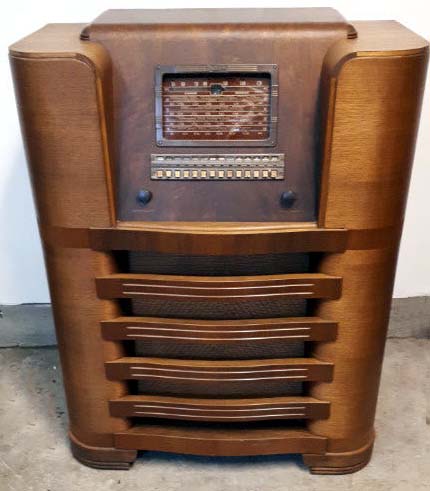

| Model 171 front view |
 |
| Model 171 . Closeup of dial. |
 |
| Model 171 rear view of radio |
 |
| Model 171 view of chassis |
 |
| Model 171 - Cabinet makers logo |
 |
| Model 171 nameplate |
| All images in this tabvle courtesy Kijji |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 171
Type: 9 tube, AC superheterodyne receiver with a 14 pushbutton tuner.
Frequency range:
539 to 1715 KHz
6050 to 6240 KHz
9460 to 9750 KHz
11650 to 11950 KHz
15650 to 15400 KHzTube lineup: 6A8,. 2 x 6J5, 6K7, 2 x 6F6, 5Y4, 6U5
Audio power: 4.5 watts
Speaker: 12 inch dynamicInput power:
115 VAC 60 Hz 85 watts
115 VAC 25 Hz 92 wattsMODEL 171 PHOTOS
|
| Model 171 front view |
|
| Model 171 . Closeup of dial. |
|
| Model 171 rear view of radio |
|
| Model 171 view of chassis |
|
| Model 171 - Cabinet makers logo |
|
| Model 171 nameplate |
| All images in this tabvle courtesy Kijji |
Contributors or References:1) Canadian Marconi Service Manual - Volume 1
