CANADIAN MARCONI HOME ENTERTAINMENT -  MODEL 182

---

Type: 5 tube, AC/DC  superheterodyne receiver

Frequency range:
540  to 1720 KHz
9450 to 9742 KHz

Circa:  Early 1940s
Tube lineup: 12SA7, 12SK7, 12SQ7, 35L6, 35Z5.
Audio power:  0.650 watts
Speaker: 5.25 inch permanent magnet
Input power: 115 VAC 25/ 60 Hz 30 watts or 115 VDC

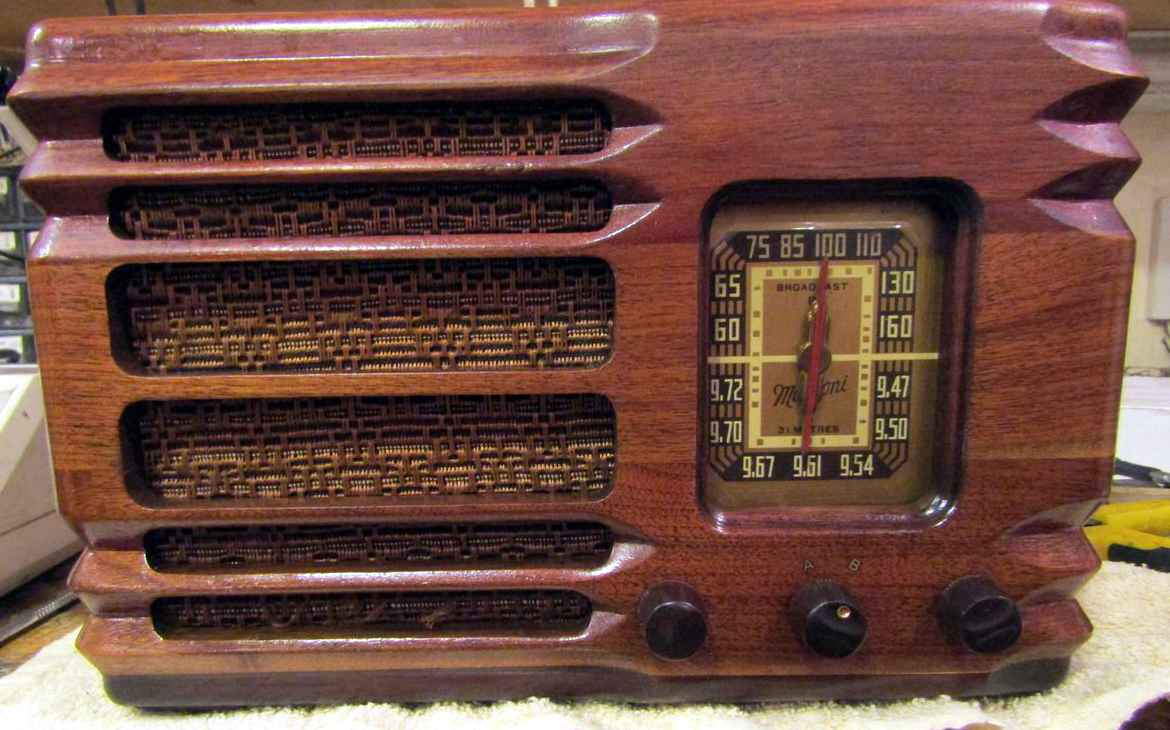

Model 182 - Front view

Model 182 - Top view

Model 182 - Chassis bottom

Model 182 - Rear view

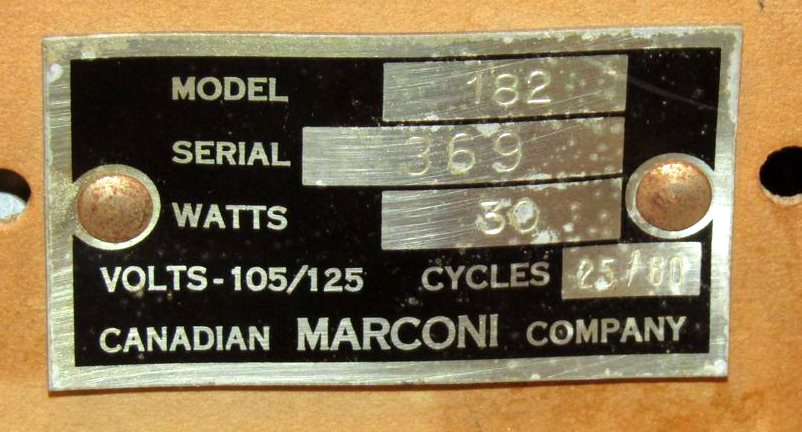

Model 182 - Nameplate

All photos in this table by Kevin Christopher

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Kevin Christopher <kevinivc(at)gmail.com>

Aug 2/17
