CANADIAN MARCONI HOME ENTERTAINMENT -  RADIO MODELS 185 and 186

---

Models:185 Mantle version
              186 Console  version

Frequency range:

536 to 1730 KHz (Broadcast)
5950 to 6250 KHz (49 meters)
9450 to 9750 (31 meters)
11650 to 11950 KHz ( 25 meters)
15050 to 15400 KHz (19 meters)

Circa: 1940 ?
Tube lineup: 6SA7, 6SK7,  6SQ7, 6F6, 5Y4
Audio power: 1.5 watts
Speaker: Model 185 - 6 inches
                 Model 186 - 12 inches
Input power: 115 VAC 60 Hz 56 watts
                      115 VAC 25 Hz 60 watts

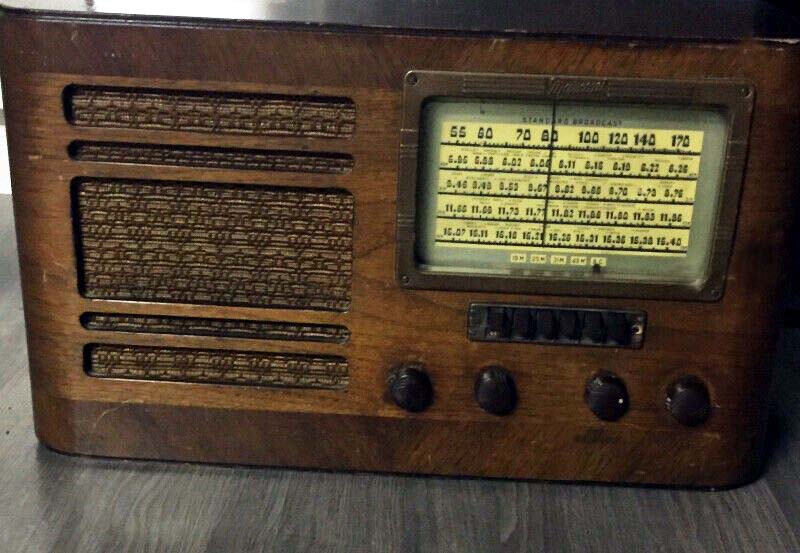

Model:185 in wallnut cabinet.

Model:185 - Closeup of dial

All model 185 photos in this table via Kijiji

Model 185 in mahogany cabinet.  (Photo by  Alessandro Arrigoni, Radiomuseum.org )

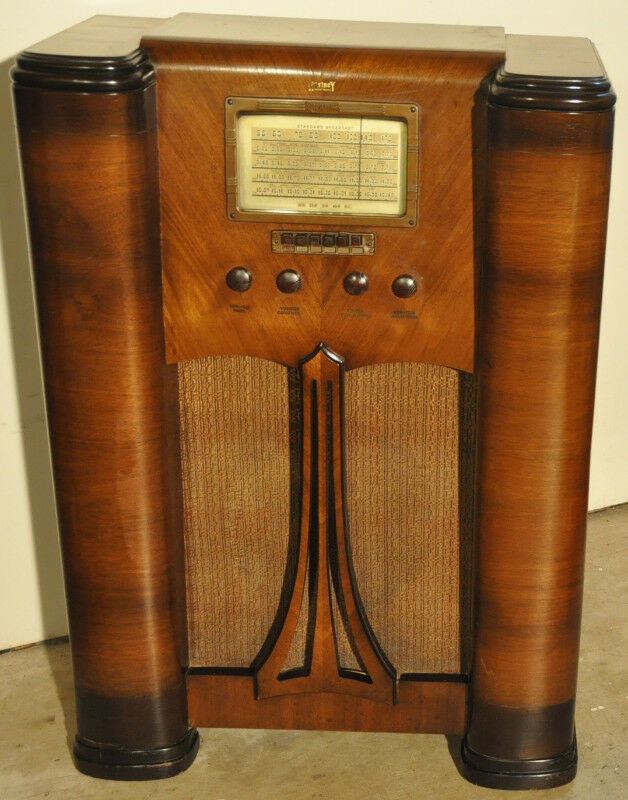

Model 186 front view

Model 186 -closeup of dial

Model 186 - overall rear view

Model 186  chassis view

Model 186 images in this table  via Kijiji

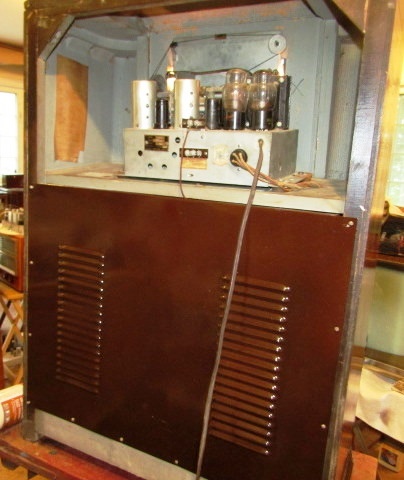

This backplate of this  Model 186  is made from steel, is louvered and acts as the antenna for the radio,  The antenna lead  from the radio connects the steel  plate with a Fahnestock clip. The clip is mounted on the top of the panel facing the chassis. This was likely a modification done by a previous owner.   (Photo by Kevin  Christopher)


Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2)  https://www.radiomuseum.org/r/canadia_ma_185.html

May 31/22
