CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS 187 and 188

---

7 tube superheterodyne receiver with 14 pushbutton automatic tuner.
Frequency coverage:

539 - 1530 KHz (Broadcast)
5950 - 6250 KHz (49 metres)
9450 - 9750 KHz  (31 metres)
11650 - 11950 KHz (25 metres)
15050 - 15400 KHz (19 metres)

Audio Output: 3.5 watts
Tube  lineup: 6SA7, 6SK7, 6SQ7, 2 x 6F6, 5Y4, 6U5

Speaker:
Model 188 - 12 inch dynamic
Model 187 -   6 inch dynamic

Power: Input

115 VAC 60 Hz  76 watts
115 VAC 25 Hz 79 watts

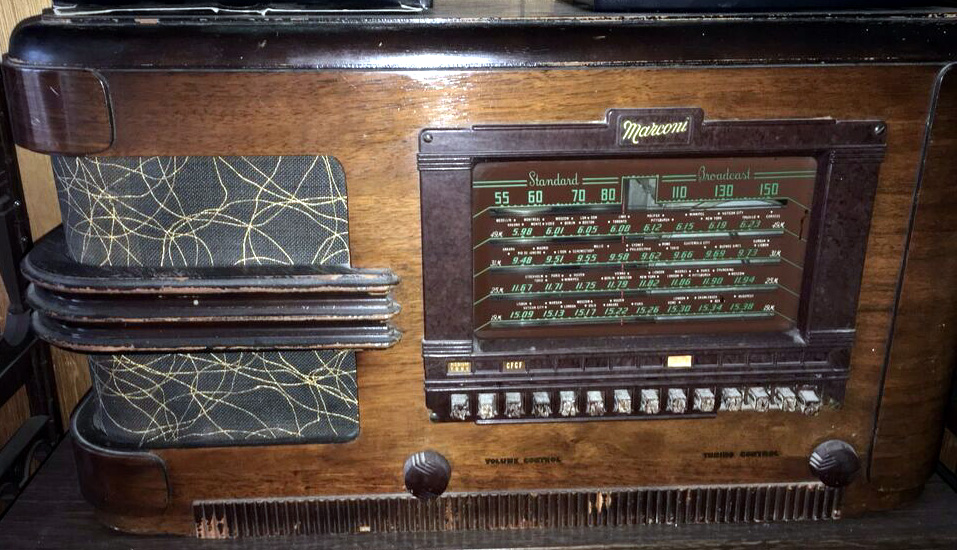

Model 187  front view (Image via Kijiji.ca)

Model 187 rear view (Image via Kijiji.ca)

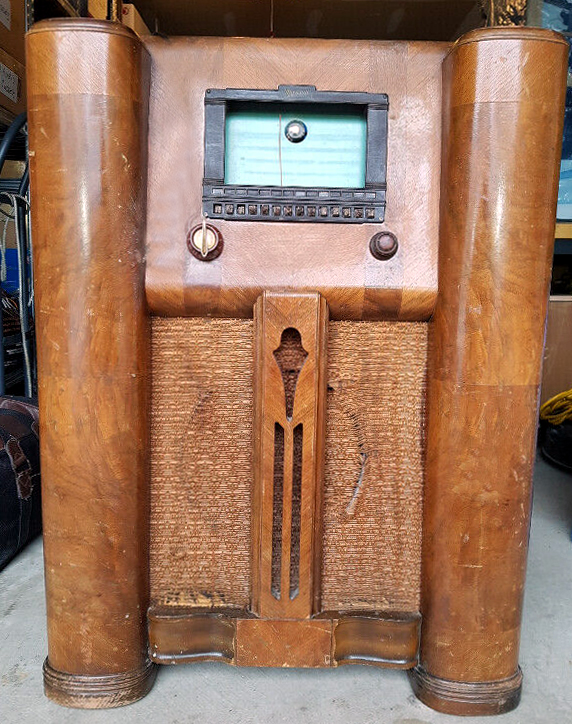

Model 188 front view

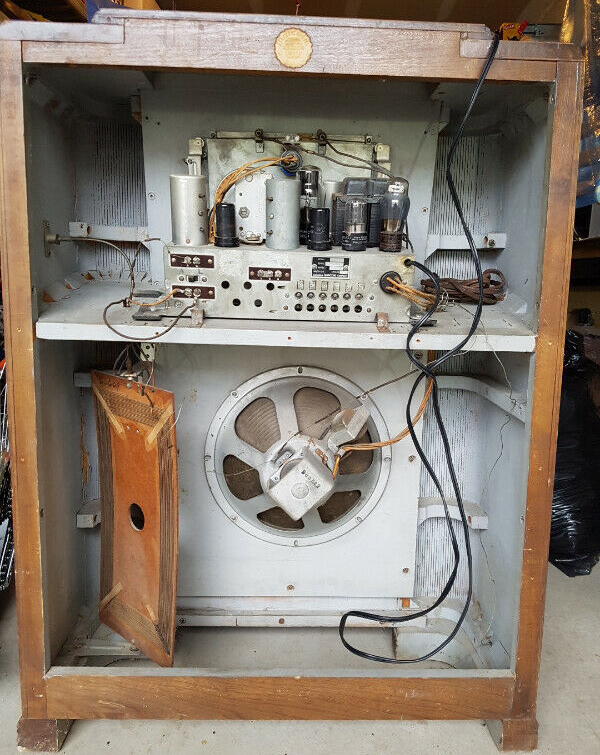

Model 188 rear view.

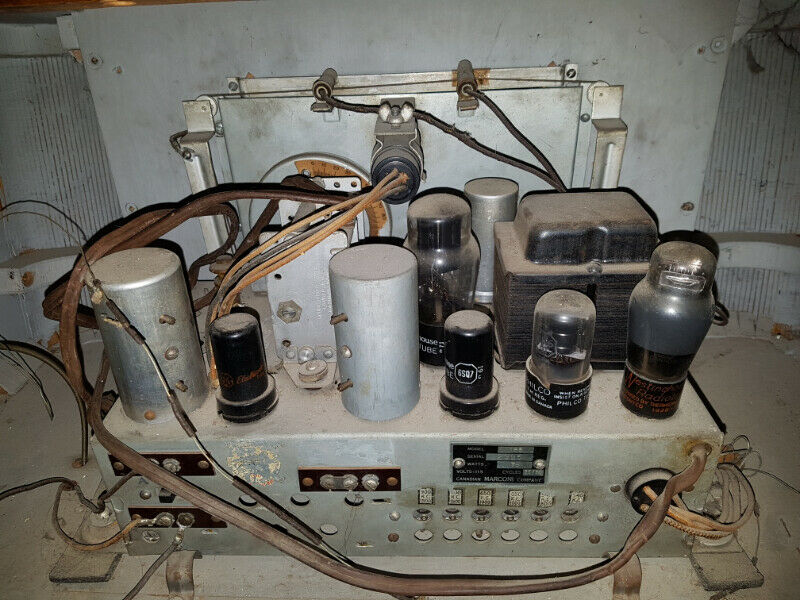

Model 188 rear view.of chassis.

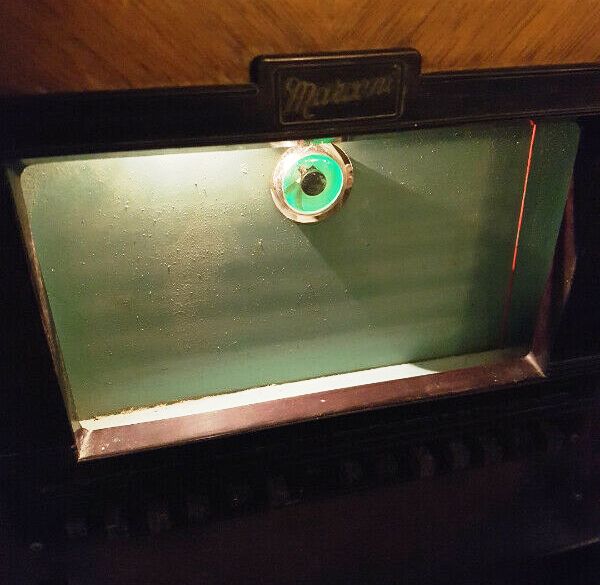

Model 188 - Illumination

All model 188 photos via Kijiji
