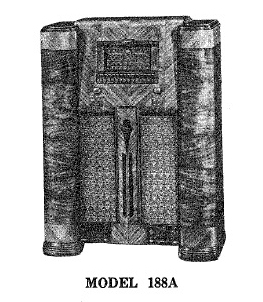

| Image courtesy Canadian Marconi. Does anyone have an actual photo of the Model 188A radio? Contact: jerry proc@sympatico.ca |
CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 188A
7 tube superheterodyne receiver with a 6 pushbutton automatic tuner.
Frequency coverage:539 - 1530 KHz (Broadcast)
5950 - 6250 KHz (49 metres)
9450 - 9750 KHz (31 metres)
11650 - 11950 KHz (25 metres)
15050 - 15400 KHz (19 metres)Audio Output: 3.5 watts
Tube lineup: 6SA7, 6SK7, 6SQ7, 2 x 6F6, 5Y4, 6U5Speaker: 12 inch dynamic
Power: Input
115 VAC 60 Hz 76 watts
115 VAC 25 Hz 79 watts
Comment: The Marconi service manual does explain the difference between models 188 and 188A . However, the specifications for these two radios are identical.
|
| Image courtesy Canadian Marconi. Does anyone have an actual photo of the Model 188A radio? Contact: jerry proc@sympatico.ca |
Contributors or References:1) http://pacifictv.ca/schematics/marconi187manual.pdf
2) Canadian Marconi Service Manual Vol 1
Feb 11/17
