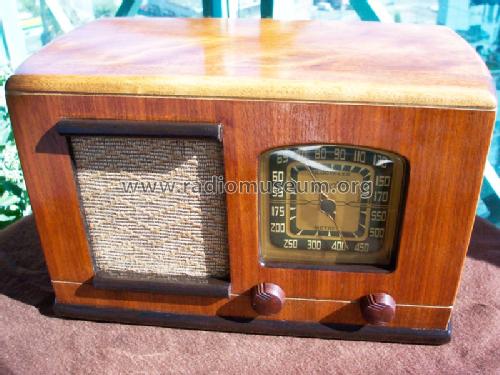

| Model 200E receiver. (Courtesy Radiomuseum.org) |
 |

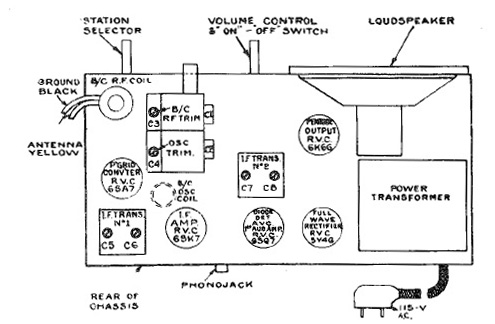

| Model 200E chassis pictorial (Image via Marconi service manual) |
 |

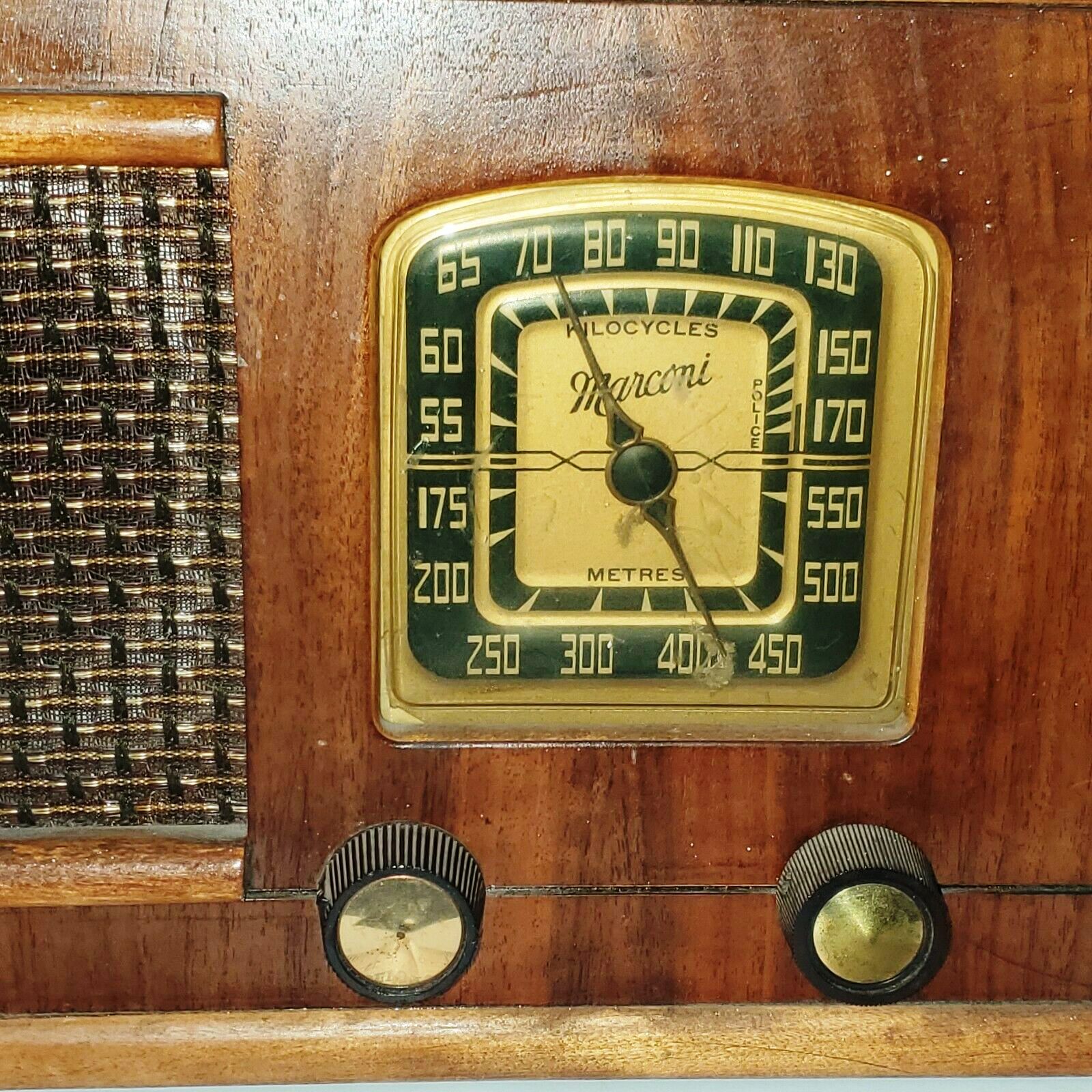

| Model 200E closeup of dial. (Image via Kijiji.ca) |
 |

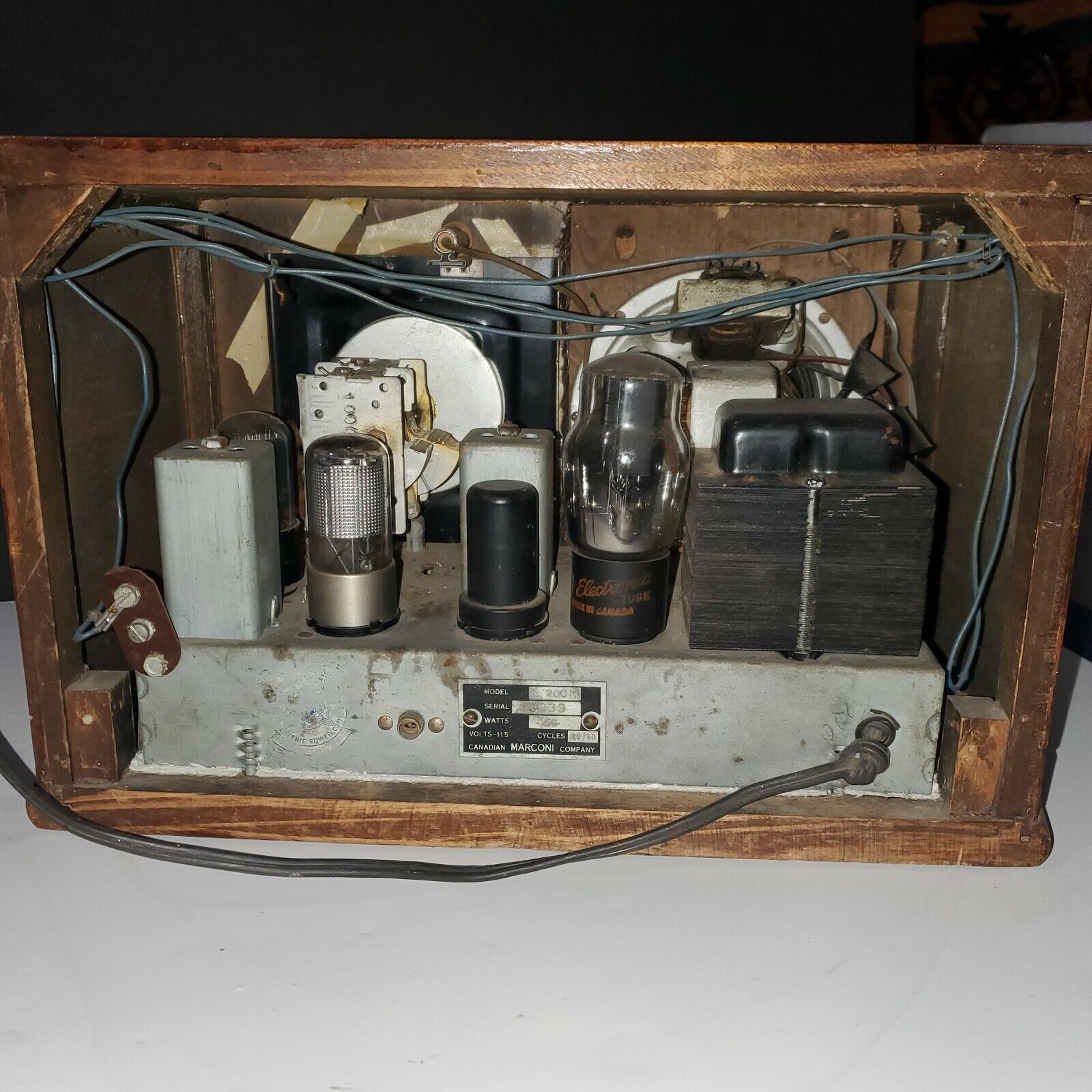

| Model 200E rear view (Image via Kijiji.ca) |
CANADIAN MARCONI HOME ENTERTAINMENT - MODELS 200 and 200E Type: 5 tube, AC superheterodyne receiver.
Frequency range: 523 to 1760 KHz
Circa: 1941/42 era
Tube lineup: 6SA7, 6SK7, 6SQ&, 6K6, 5Y4
Audio power: 1.5 watts
Speaker: 5 in permanent magnetInput power:
115 VAC 60 Hz 80 watts
115 VAC 25 Hz 75 wattsDimensions: 14W x 9H x 7D inches
Comment: The Marconi manual does not indicate the difference between the model 200 and 200E.
|
| Model 200E receiver. (Courtesy Radiomuseum.org) |
|
| Model 200E chassis pictorial (Image via Marconi service manual) |
|
| Model 200E closeup of dial. (Image via Kijiji.ca) |
|
| Model 200E rear view (Image via Kijiji.ca) |
Contributors or References:1) Canadian Marconi Service Manual - Volume 1
2) http://www.radiomuseum.org/r/canadia_ma_200e.html
Oct 9/15
