CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS  202, 202B  and  203

Type: Models 202 and 203 are 6 tube, AC superheterodyne receivers with a 6 pushbutton tuner. The 202B has a phonograph but no pushbutton or shortwave capability.
Model 202 and 203 frequency range:

538 to 1728 KHz
5.6 to 18.8 MHz

Model 202B: Broadcast band only..

Tube lineup: 6SA7, 6SK7, 6SQ7, 6F6, 5Y4, 6U6
Audio power:  2 watts
Speaker:
Model 202 - 6 inch dynamic
Model 202B and 203 - 12 inch dynamic

Input power:

For model 202/203 - 115 VAC 60 Hz 56 watts
For model 202B only  - 115 VAC 60 Hz,  80 watts

Comment: There is no mention of the model 202B in the Canadian Marconi Service Manual.

Model 202 Photos

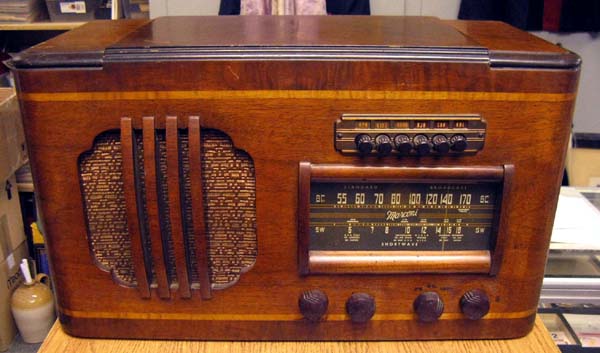

Model 202 - Front view

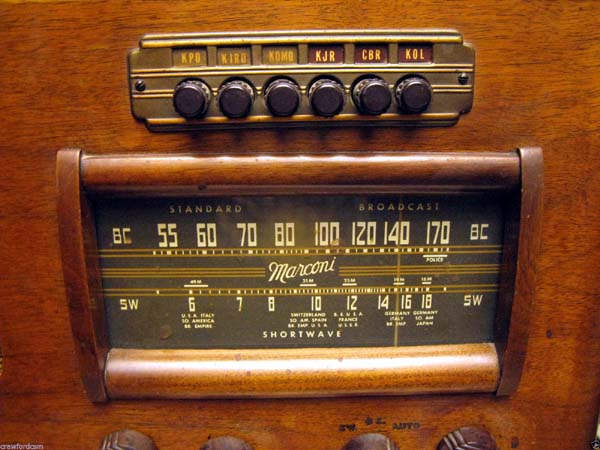

Model 202- Dial detail.

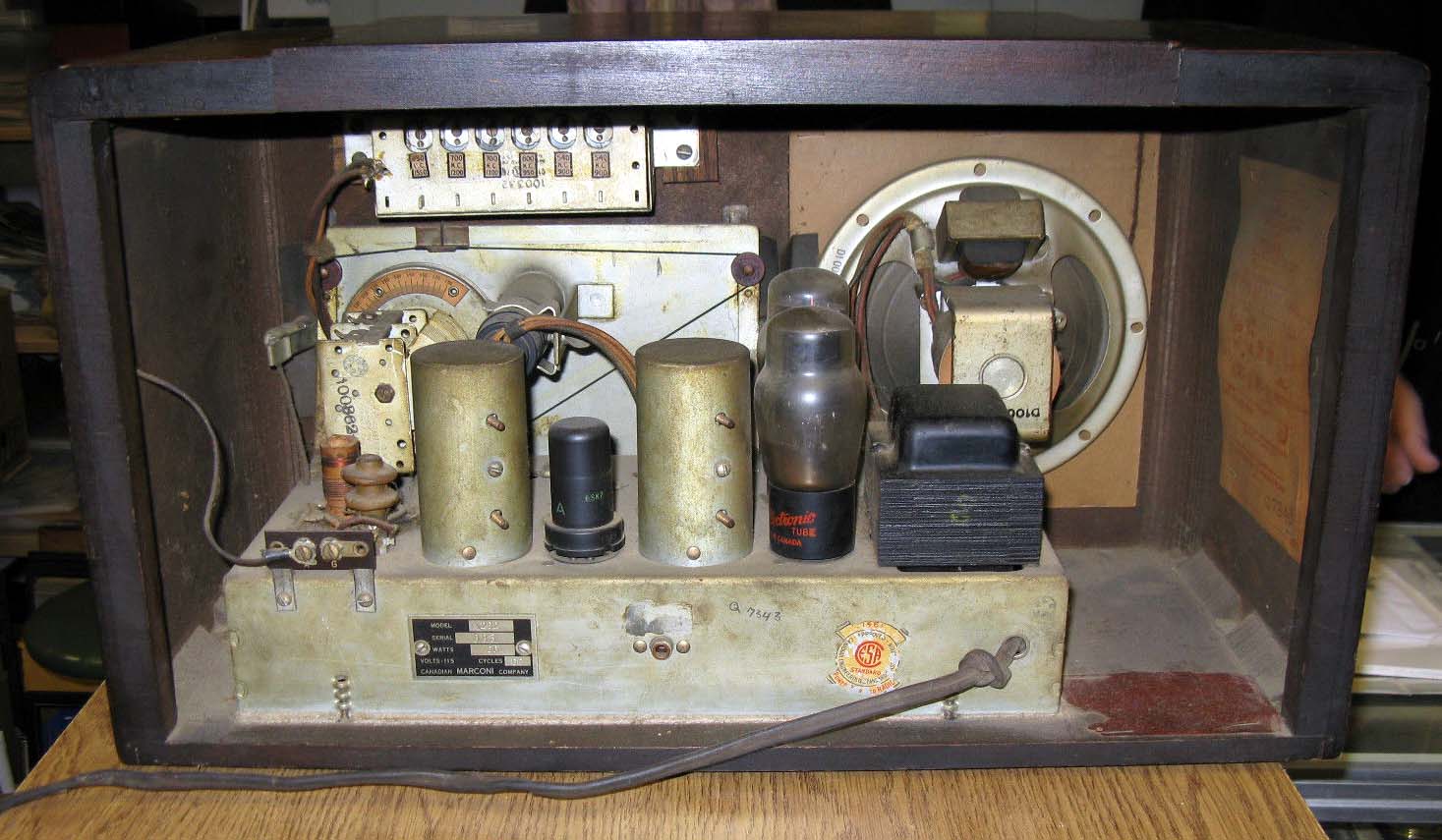

Model 202 - Rear view..
02_05/jpg
Model 202 Nameplate.
All photos in this table courtesy E-bay.com.


Model 202B Photos

Model 202B with the phonograph in the closed up position

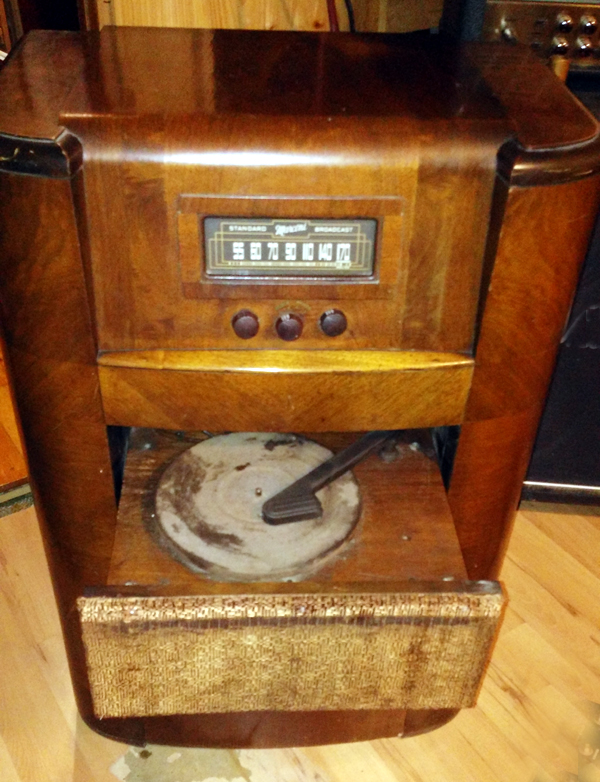

Model 202B with photongraph drawer extended.

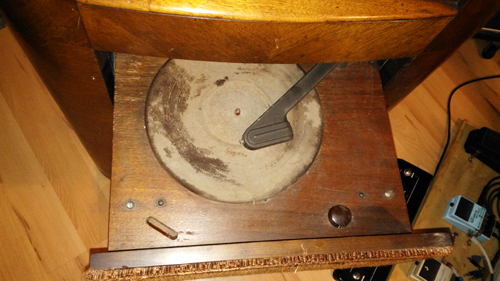

Model 202B -Top view of phonograph.
Model 202B dial detail

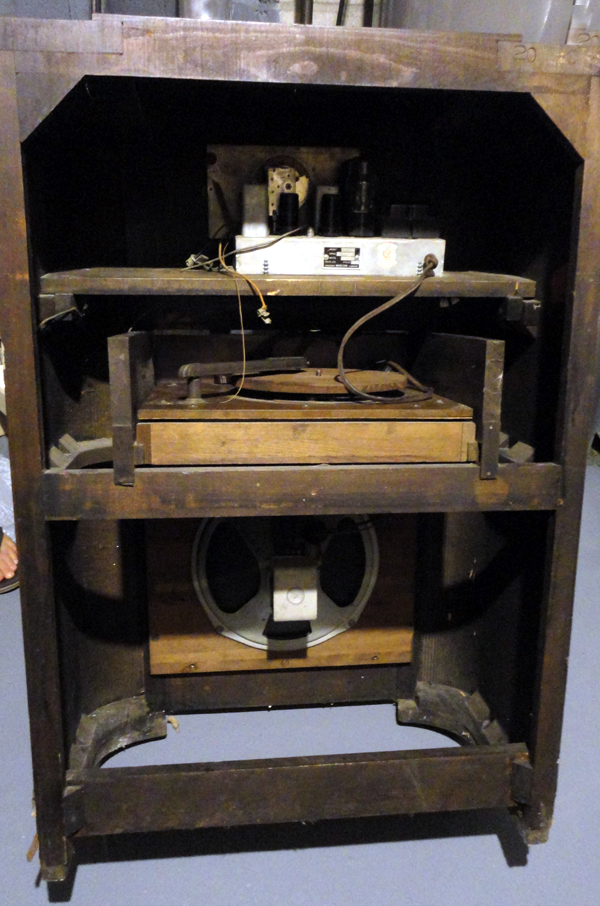

Model 202B rear view of cabinet
202b_05_chassis _rear.jpg

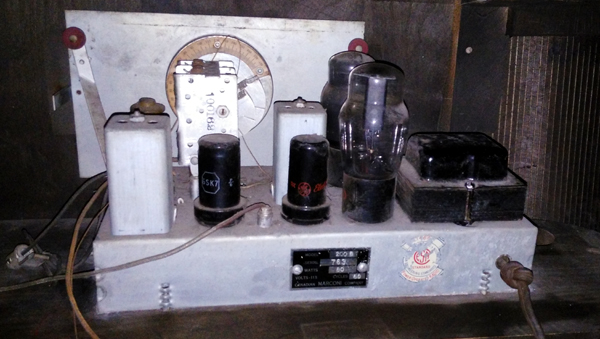

Model 202B showing rear view of chassis.
Model 202B nameplate
All model 200B photos in this table by Kandi Potter

MODEL 203 PHOTOS

Model 203 front
Model 203 rear view.

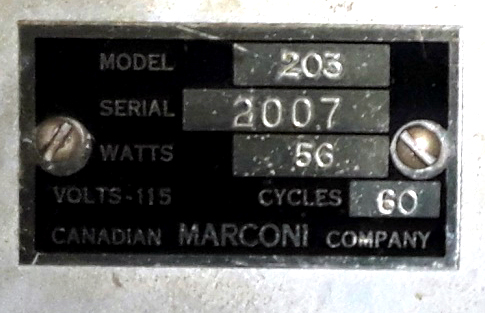

Model 203 nameplate
All Model 203 photos in this table by Jim Wallace.
Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Kandi Potter <kandipotter(at)gmail.com>
3) Jim Wallace <claymoreorless(at)gmail.com>
