CANADIAN MARCONI HOME ENTERTAINMENT -  MODELS  206 and  207

Type: 7 tube, AC superheterodyne receiver with a 6 pushbutton tuner and bandspread tuning .
Frequency range:

539 to 1715 KHz
5.6 to 15.030 MHz
9.45 to 9.75 MHz
11.645 to 11.965 MHz
15.050 to 15.40 MHz
17.60 to 22.04 MHz

Tube lineup: 6SA7, 2 x 6SK7, 6SQ7, 6V6, 5Y4, 6U5
Audio power:  3.5 watts
Speaker:
Model 206 - 6 in dynamic
Model 207 - 12 in dynamic

Input power:
115 VAC 60 Hz 95 watts
115 VAC 25 Hz 100 watts


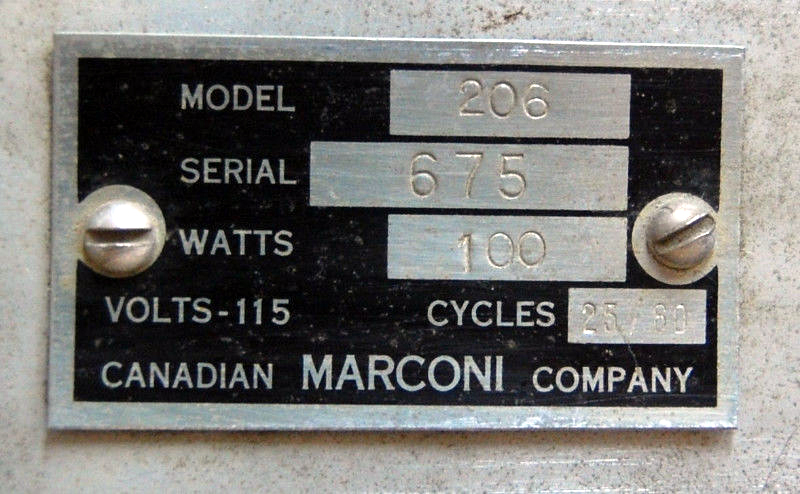

206 image via Marconi service manual. Does anyone have an actual photo of the 206 radio ? Contact: jerry.proc@sympatico.ca

MODEL 207 PHOTOS

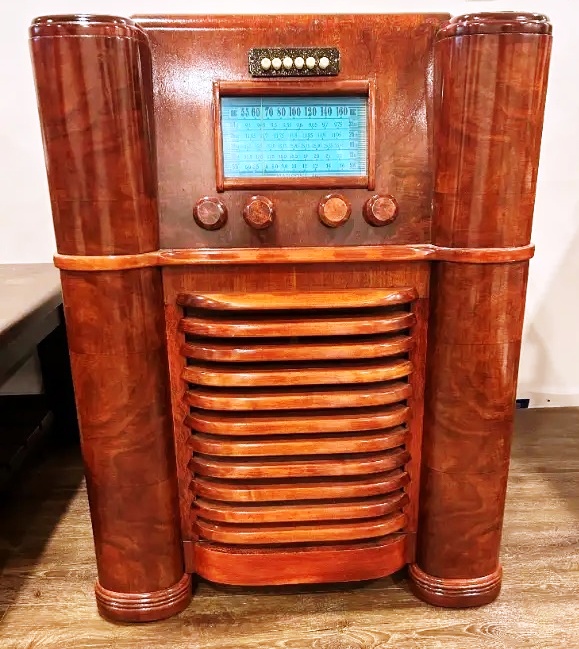

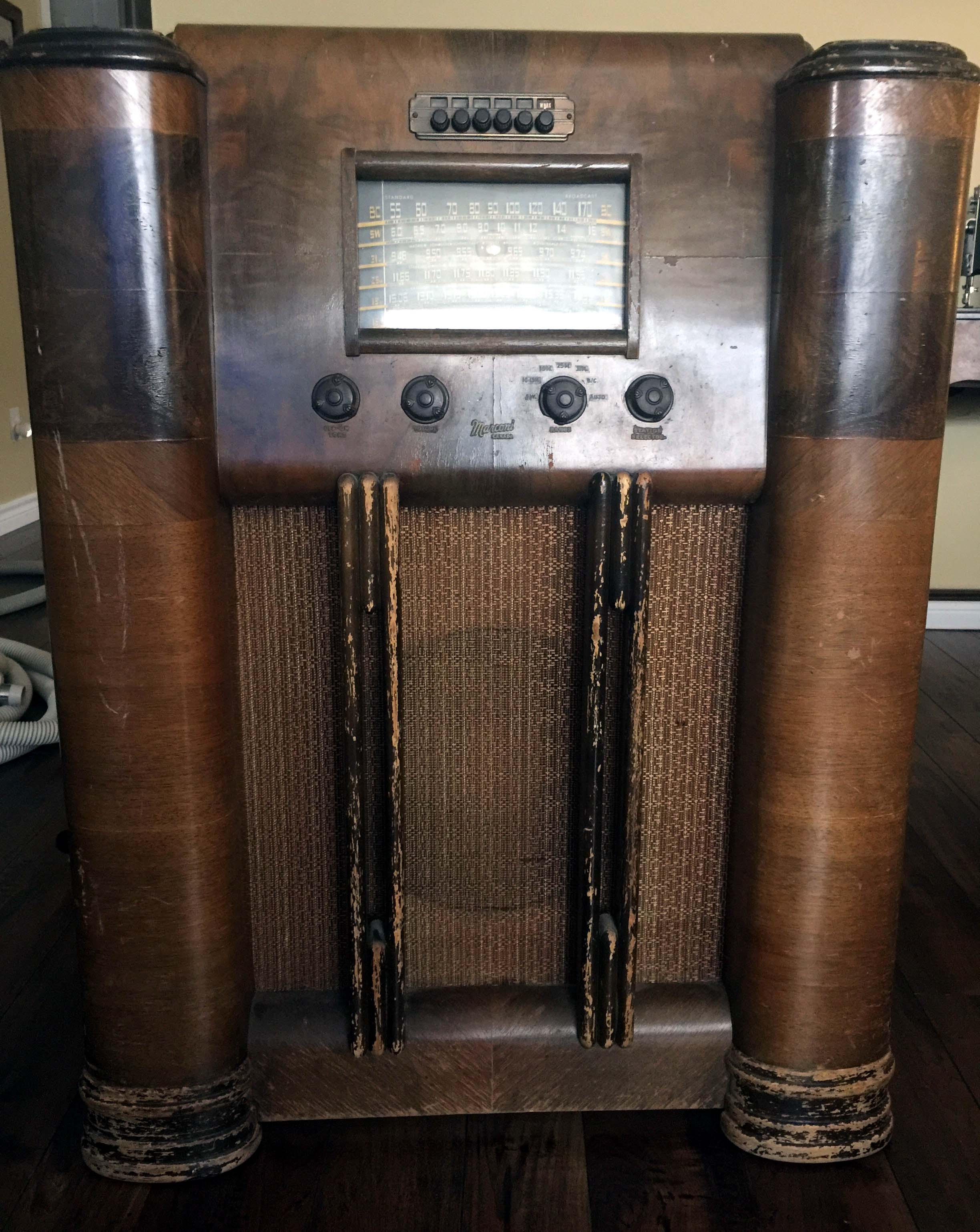

Model 207 front view

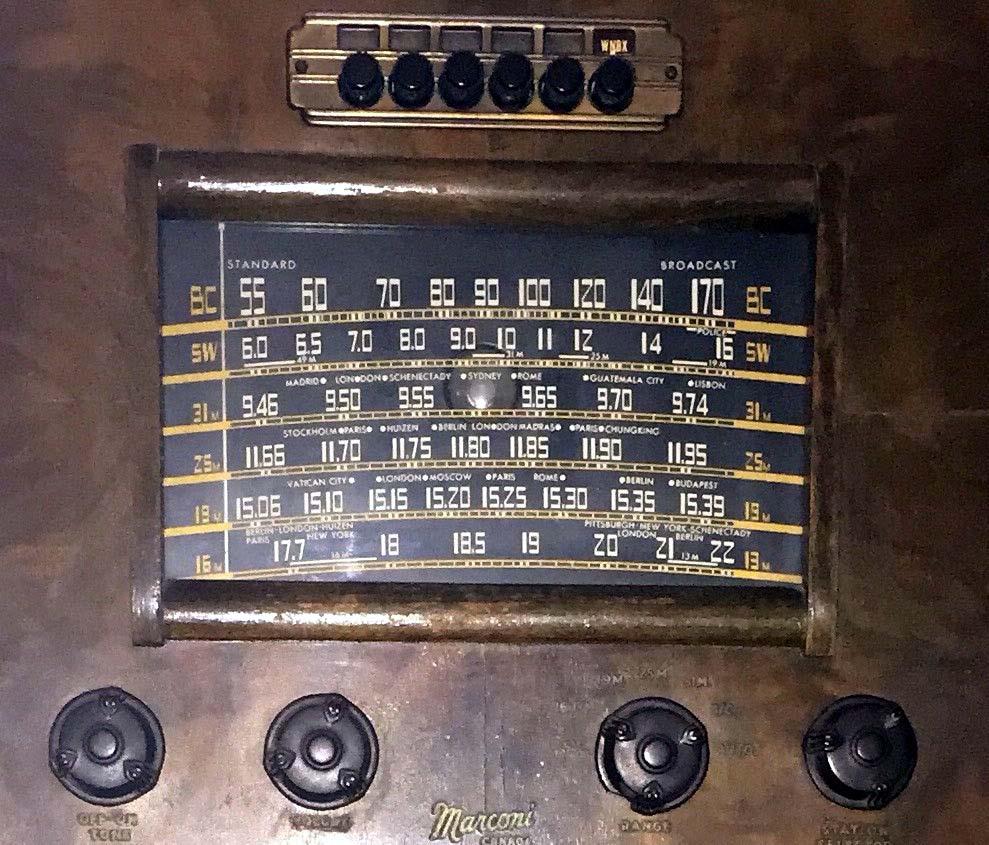

Model 207 dial detail

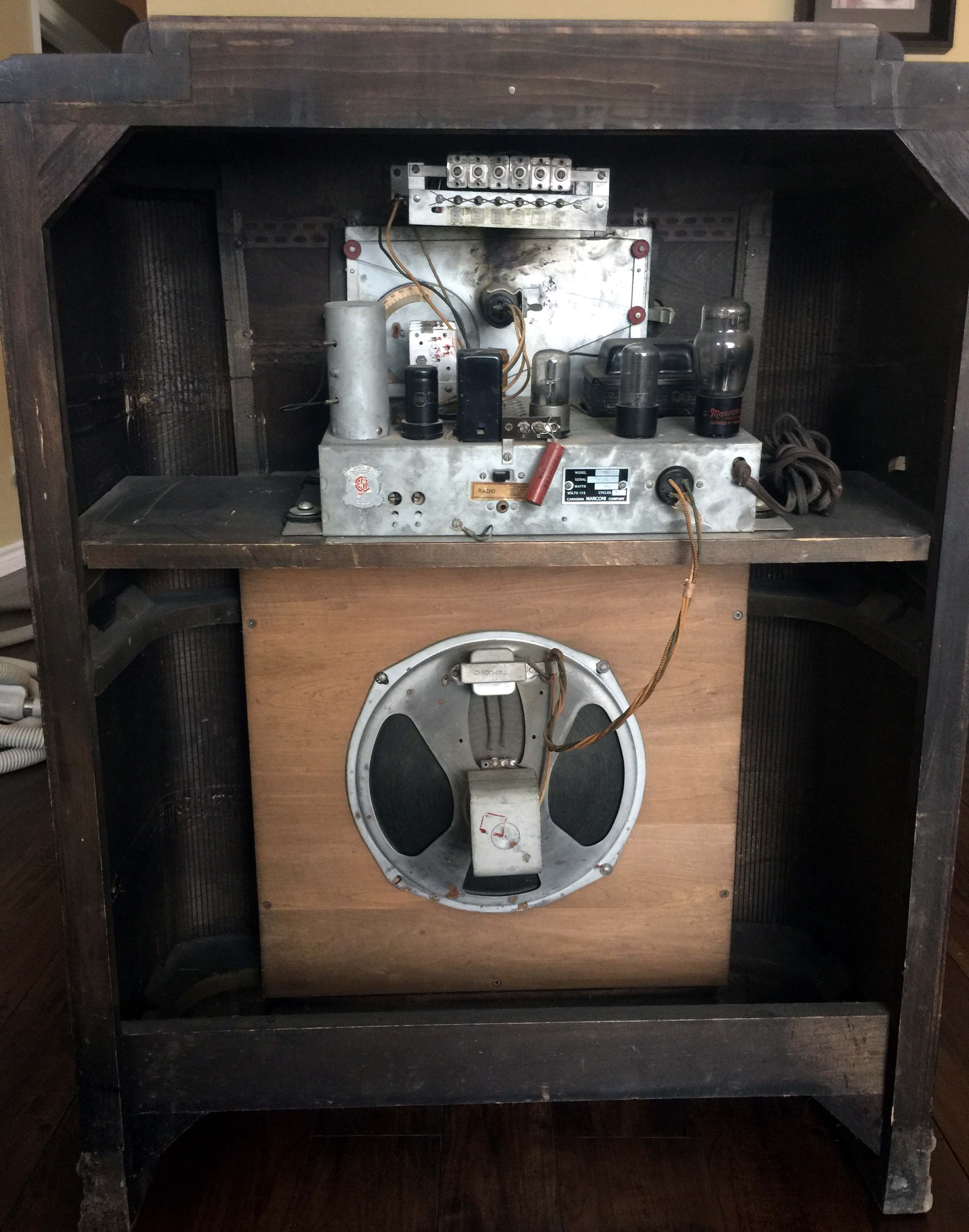

Model 207 rear view

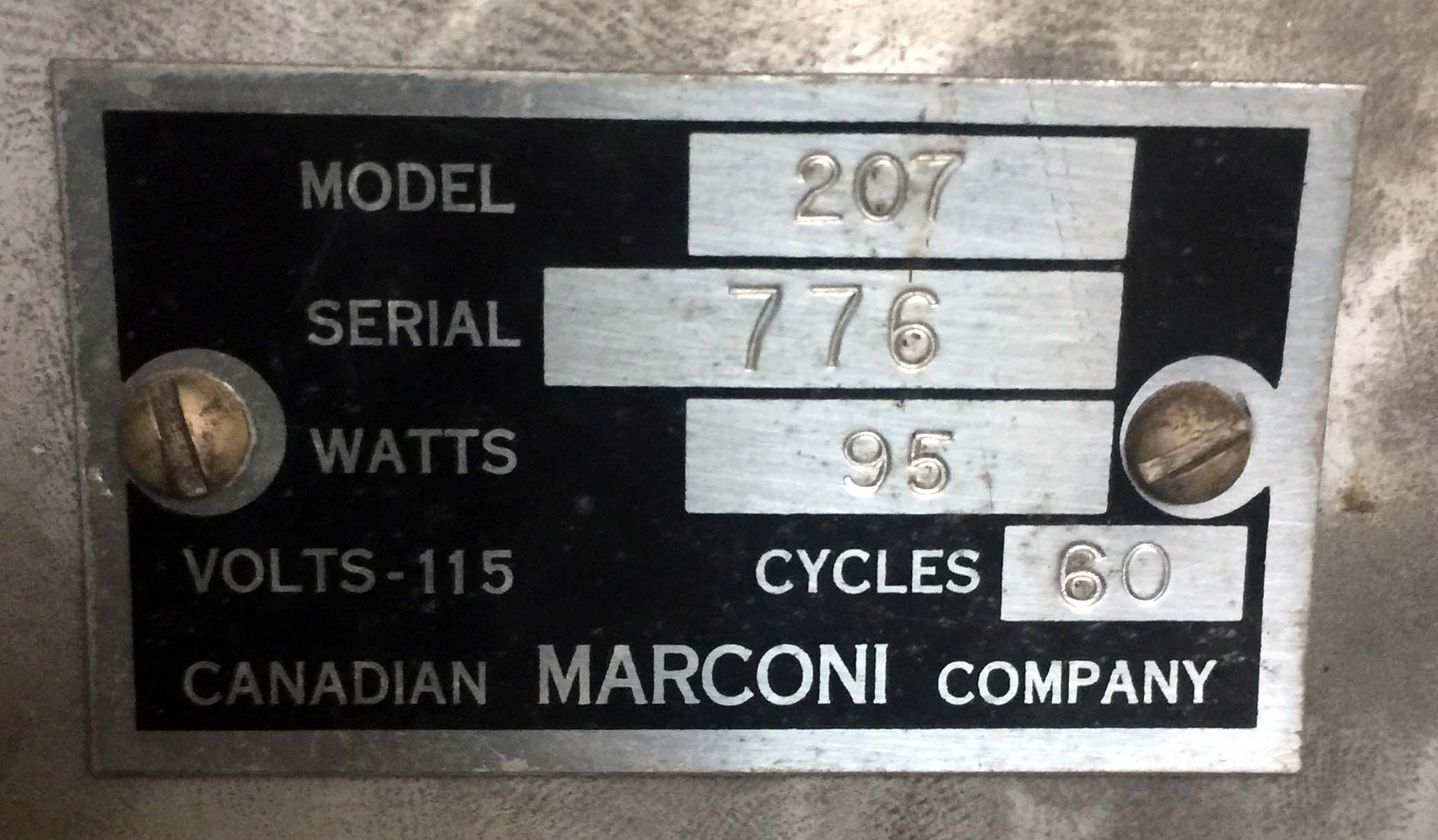

Nameplate
All photos in this table by Norm Beauregard

Contributors or References:

1) Canadian Marconi Service Manual - Volume 1
2) Norm  Beauregard  <beauregard(at)icloud.com>
