CANADIAN MARCONI HOME ENTERTAINMENT - MODEL 213 Type: 5 tube, battery powered, superheterodyne receiver.
Frequency range: 537 to 1720 KHz
Circa: ?
Tube lineup: 1A7, 2 x 1N5, 1H5, 1Q5
Audio power: 220 milliwatts
Speaker: 5.25 inch PMInput power:
1 x 1.5 volt 'A' battery @.25 amp
2 x 45 volt (in series) 'B' battery @10.5 ma
|

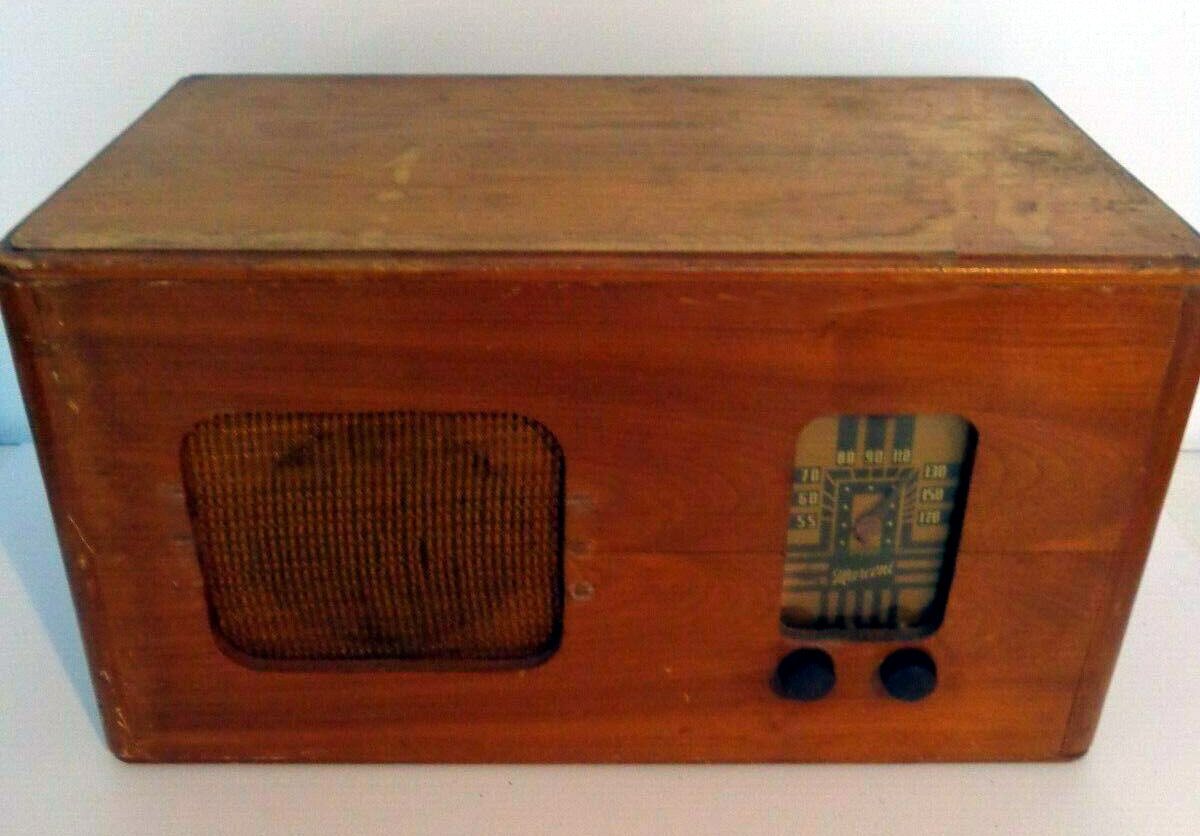

| The model 213 example is missing the bars across the speaker grille. (Photo via E-bay) |
|

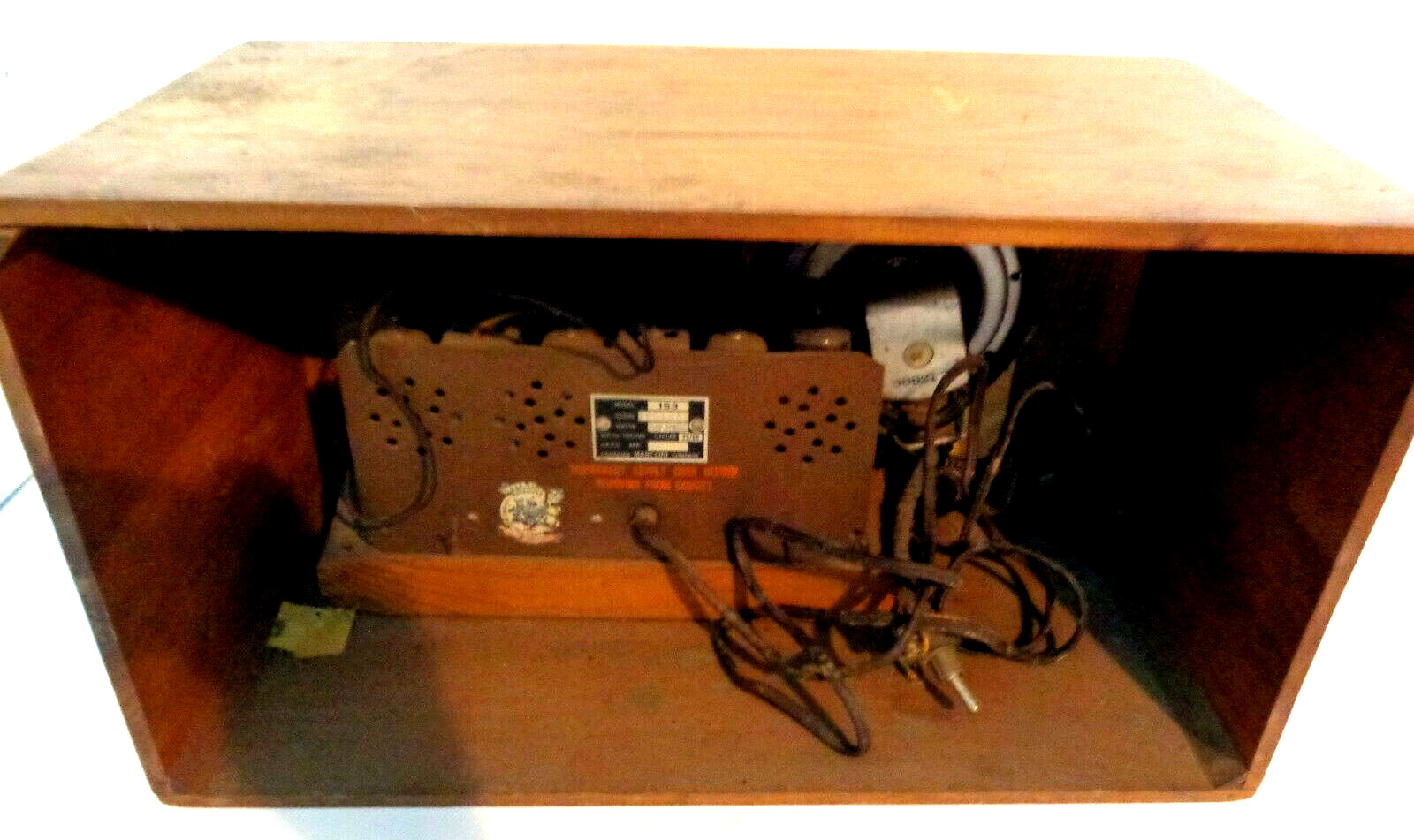

| Model 213 rear view, The space in the foreground is for the batteries. (Image via Kijiji.ca) |
|

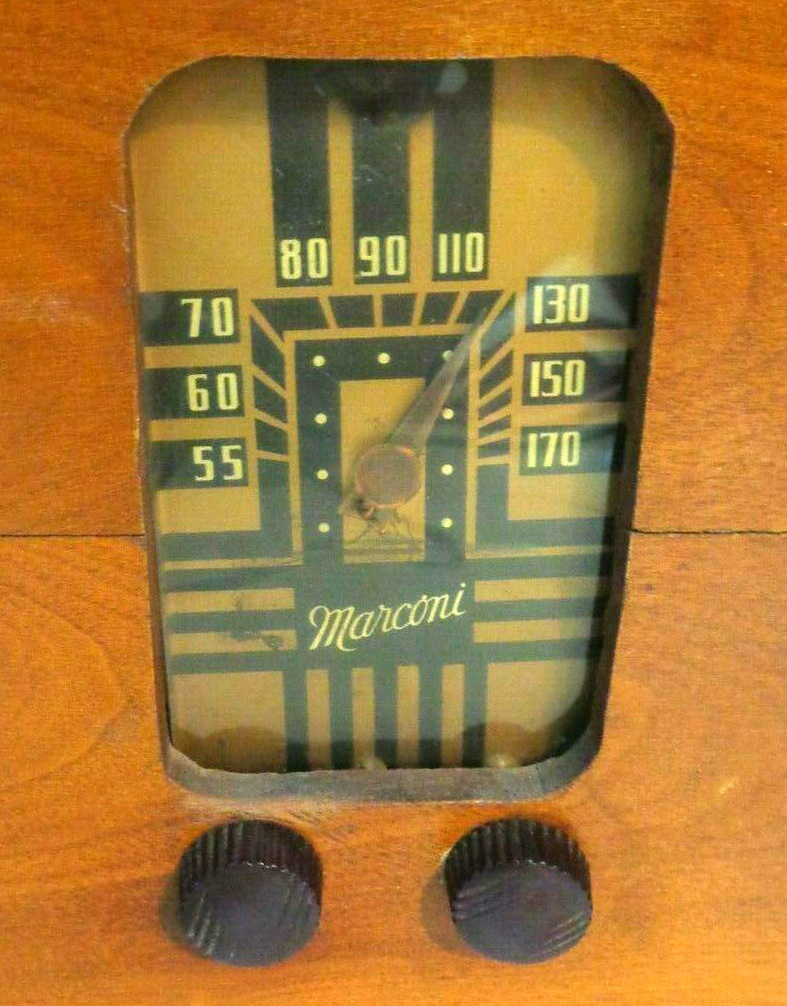

| Model 213 closeup of dial .(Image via Kijiji.ca) |
 |

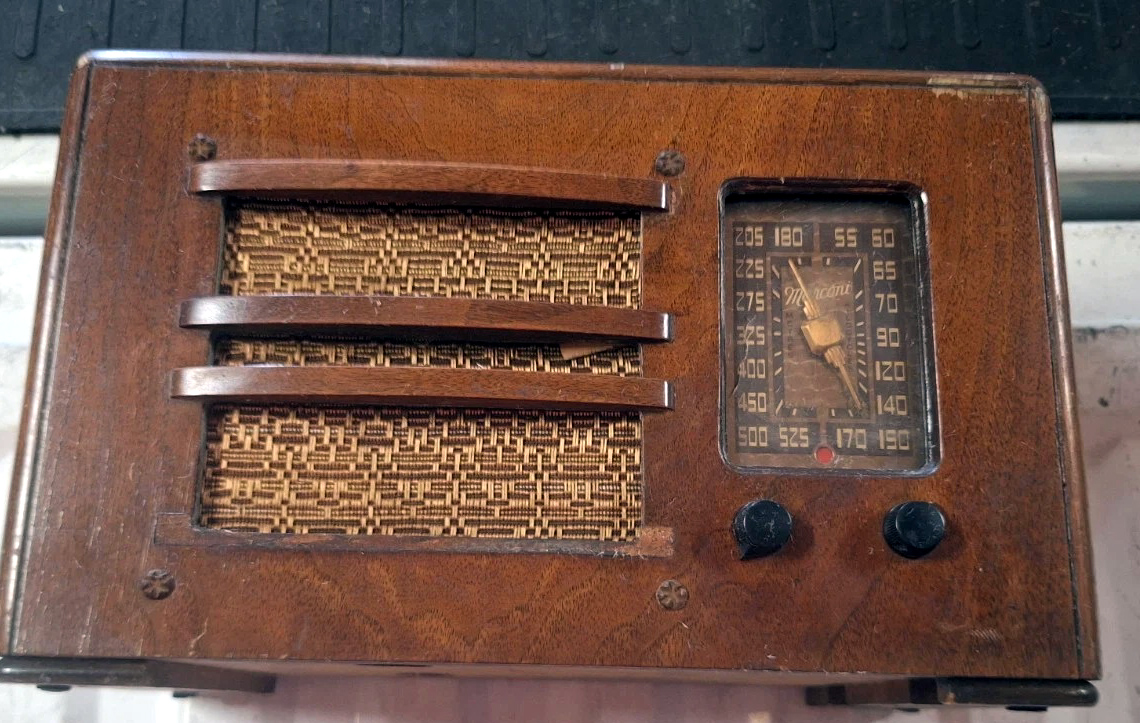

| This low roes image has been left here to show the location of the four wooden bars across the speaker grille. . (Photo via Canadian Marconi Service Manual) |
Contributors or References:1) Canadian Marconi Service Manual - Volume 1
Jan 6/20
